Ikegami KIT-ISDA15-OD 520 TVL ISD-A15 Camera with Lens, 24V50A Transformer, Outdoor Housing, Mount

SKU
KIT-ISDA15-OD
Model No
KIT-ISDA15-OD
$378.00
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • Hyper Wide Light Dynamic Range (Hyper WDR)
  • Compact Body of Super Cube
  • Automatic White Balance
  • High-quality Picture and High Resolution
  • Automatic Sensitivity Control

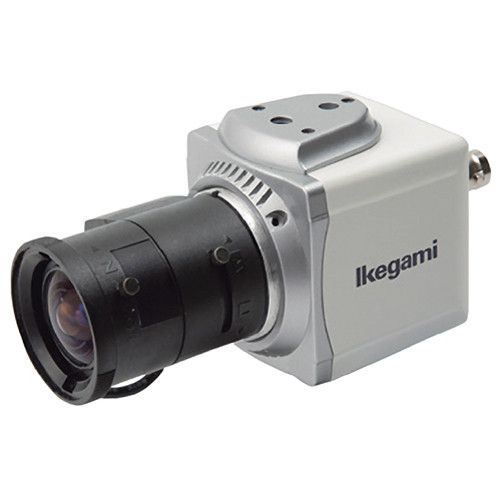

The KIT-ISDA15-OD from Ikegami Surveillance Kit includes the ISD-A15 1/3” Hyper Dynamic High-Resolution Compact Cube Camera with IK-YV5X2.7R4B-SA2L 2.7-13.5mm Day/Night IR Lens, MGT2450 Transformer, and CAMH-400K Aluminum Outdoor Housing with Mount. It captures vivid images in challenging lighting conditions, thanks to its advanced sensor and processing technology, making it ideal for outdoor surveillance tasks while ensuring easy integration with various setups.

Ikegami KIT-ISDA15-OD Camera Features

  • Hyper Wide Light Dynamic Range (Hyper WDR): Compensates for extreme light contrasts, ensuring clear and natural images in both brightly lit and dark areas.
  • Compact Body of Super Cube: Its small size allows for flexible installation in places like ATM machines without sacrificing performance.
  • Automatic White Balance: Adapts to changing color temperatures automatically, ensuring consistent color accuracy across diverse lighting conditions.
  • High-quality Picture and High Resolution: Achieves 520 TVL resolution for crisp, clear images with effective detail enhancement and low noise through advanced DSP technology.
  • Automatic Sensitivity Control: Automatically adjusts exposure for optimal imaging quality, even with fixed iris lenses.
  • Scene File Function (4 positions): Offers preset scene settings for easy configuration, allowing quick adjustments for various environments without complex setup.
  • Focus EZ Function: Provides visual indicators for focus adjustments, keeping the lens aperture open for precise focusing in sunlight.

Ikegami KIT-ISDA15-OD Detailed Specifications

Camera Type1/3” Hyper Dynamic High-Resolution Compact Cube Camera
LensIK-YV5X2.7R4B-SA2L 2.7-13.5mm Day/Night IR Lens
Resolution520 TVL (690 HTVL-Effective)
Power SupplyMGT2450 Transformer, 24VAC, 50VA
HousingCAMH-400K Aluminum Outdoor Housing
Mount Type12" (304.8m) Mount
Special FeaturesBuilt-in heater and blower in outdoor housing, Automatic Tracking White Balance, Focus EZ Function
SKU  KIT-ISDA15-OD
Features  Auto Gain Control, Automatic White Balance, Day/Night, Digital Noise Reduction, Privacy Masking, Wide Dynamic Range
Manufacturer  Ikegami
Camera Signal     Analog
Resolution    520 TVL
Sensor Option    1/3" CMOS
Lens Type    Varifocal
Lens Size    2.7-13.5mm
Infrared Distance    Non Infrared
Durability    Indoor
Mount Type  Wall
Voltage  12vDC, 24vAC
Image Device    1/3-inch DPS CMOS sensor
Minimum Scene Illumination  0.3 lx/F1.4 (Electronic Sens. Up OFF, VBS Output 50%)
Operating Humidity    RH 30 to 90% (No Condensation)
Operating Temperature    -10 to +50°C (13.5 to 122°F)
Dimensions (W x H)  52 x 52 x 55 mm (2.05 x 2.05 x 2.16 inches), excluding protrusions
Power Consumption  2.2W
Privacy Zone    Built-in (Maximum 8 zones)
S/N Ratio  50 dB (p-p/rms) or better
Scanning System    NTSC: 525 TV lines/59.94 Hz, 2 : 1 interlaced, PAL: 625 TV lines/50 Hz, 2 : 1 interlaced
Signal System    NTSC , PAL
Video Output    VBS 1.0 Vp-p/75 ohms
Synchronization  Internal Sync (Crystal Lock), External Sync (AC Line Lock)
Digital Noise Reduction    Built-in, On / OFF selectable (DNR Function)
Automatic White Balance    ATW/ATWex/AWC/MANU, selectable
Auto Gain Control    ON (AGC, HYPER-AGC) / OFF (LOW, MID, HIGH), selectable
Automatic White Balance    Yes
Day/Night    Yes
Digital Noise Reduction    Yes
Wide Dynamic Range    Yes
Privacy Masking    Yes
Auto Gain Control    Yes
Digital ZoomYes
