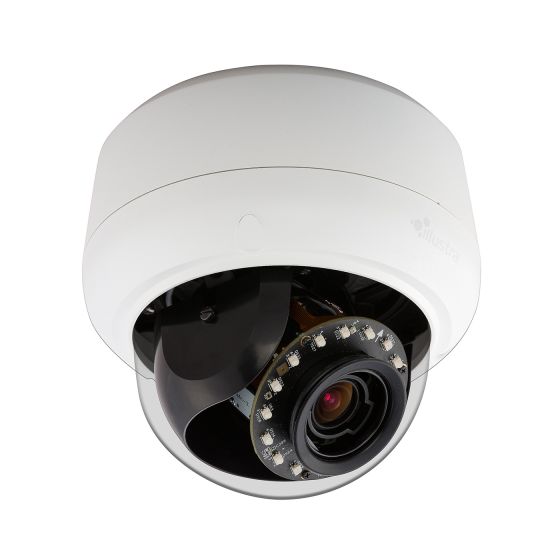

American Dynamics IPS05D2OCWIY Illustra Pro 5MP IR Mini Dome, 3-9mm, Outdoor, Vandal, Clear, White
- Superior low light performance
- Face detection and blur detection
- 5 megapixel resolution
- Quick and easy installation and configuration
- One-touch focus and motorized zoom
The Illustra Pro IP Mini-Domes provide crisp and clear high-definition video, at full frame rates. Whether in bright sun, near darkness or blackout conditions, you can clearly see important details, such as license plates, merchandise labels, and faces. Installation is simple and easy with no additional cost or hardware. The cameras include various integrated mounting options including hard surface and electric box. On indoor cameras, a plenum cap is included as well as mounting clips for recessed flush installation. Configuration is simplified using the most common web browsers to access the browser-based camera interface for feature control including one-touch focus and motorized zoom. Illustra Connect, a powerful remote management and configuration software tool, makes set up and installation even easier. Using onboard motion-detection, and advanced, integrated analytics, the Illustra Pro Mini-Domes reduce your ongoing cost of operation by minimizing the cost of storage while ensuring image quality. The IP66 and IK10 rated outdoor Mini-Domes are rugged and durable providing a vandal resistant enclosure, water ingress protection, and dust ingress protection. The Mini-Domes can be powered using PoE or 24Vac. The outdoor Mini-Dome can operate in temperatures as low as -40°C when powered using 24Vac.
Features
- Superior low light performance
- Face detection and blur detection
- 5 megapixel resolution
- Quick and easy installation and configuration
- One-touch focus and motorized zoom
- Multiple motorized lens options
- Reduced storage cost with H.264 and integrated region of interest (ROI) bandwidth management analytics
- Up to five individual programmable regions of interest
- IP66 and IK10 ratings
SKU  | IPS05D2OCWIY |
|---|---|
| Features | Auto Gain Control, Day/Night, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | American Dynamics |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 0~60 Feet |
| Resolution | 5 Megapixel |
| Lens Type | Varifocal |
| Lens Size | 3-9mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 24vAC, PoE |
| Dimensions (W x H) | 135 x 160 mm (5.31 x 6.30 in) |
| Image Device | 1/3.2˝ CMOS progressive scan |
| Minimum Scene Illumination | Color: 0.3 lux, B/W: 0.02 lux, With IR: 0.0 lux |
| Operating Temperature | PoE: -30° to 50°C (-22° to 122°F), 24VAC: -40° to 50°C (-40° to 122°F) |
| Power Consumption | 12.95W |
| Video Output | 1.0 Vp-p, BNC pigtail included |
| Weatherproof | IP66 |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
