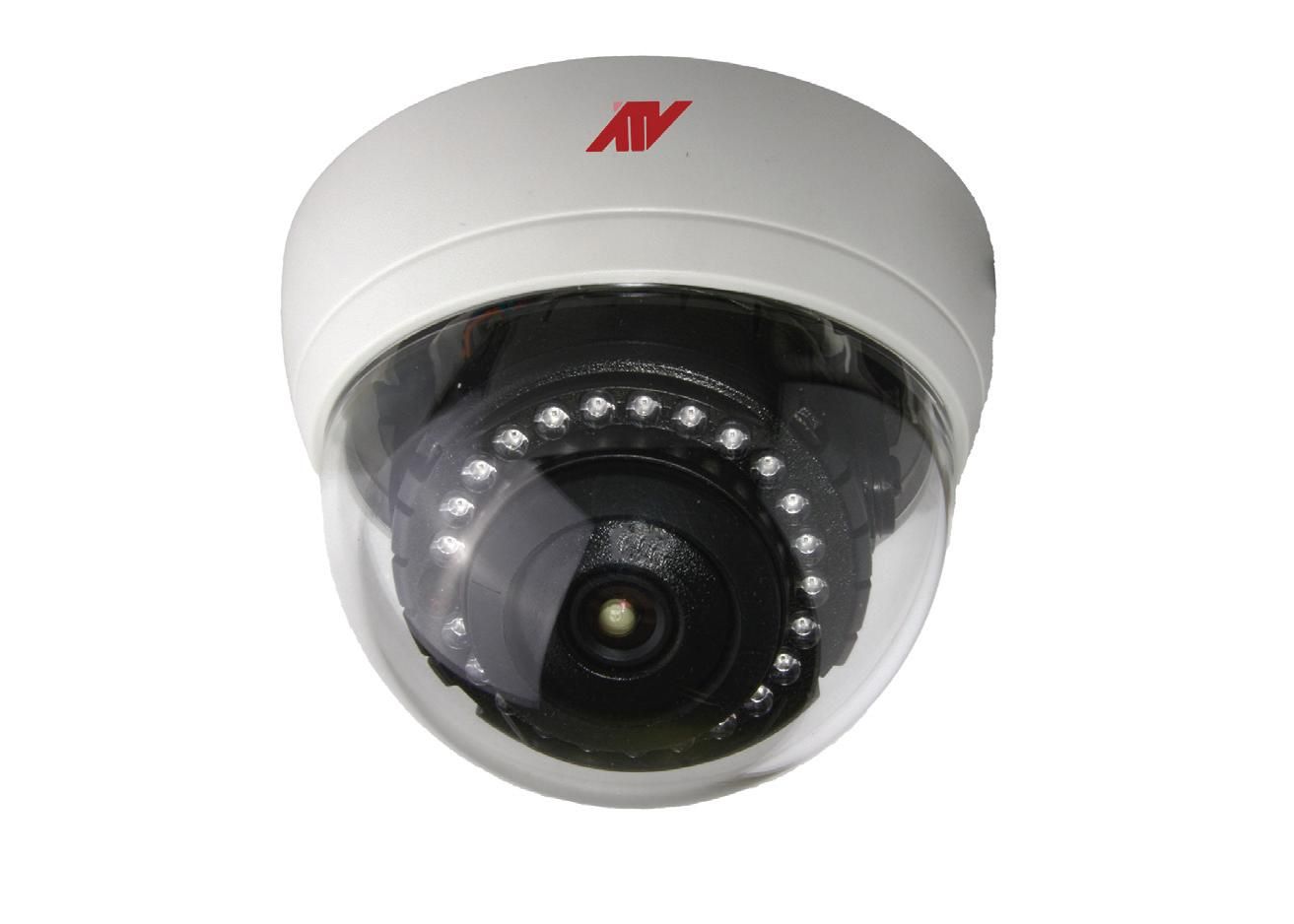

ATV IPMD2FI 2 Megapixel IR Network Mini Dome Camera, 3.7mm Lens

SKU
IPMD2FI
Model No
IPMD2FI
$85.31
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • Superior 2MP Full HD, 1920 x 1080 Resolution
  • TRUE Day/Night Functionality for Low-light Conditions
  • Highly Efficient H.264 Video Compression which Drastically Reduces Bandwidth and Storage Requirements
  • Progressive Scanning for Sharper Video Motion Images
  • 3.7 Wide Angle, Fixed Lens

The IPMD2FI from ATV is a 2 Mega Pixel Full HD Resolution, TRUE Day/Night, On-Board Storage, IR, Interior Mini Dome Surveillance Camera designed for high-quality surveillance. This advanced camera delivers exceptional performance in low-light conditions, is easy to install, and offers comprehensive features for effective monitoring and recording.

ATV IPMD2FI Camera Features

  • Superior Resolution: Experience 2MP Full HD, 1920 x 1080 resolution for crisp and clear video quality.
  • TRUE Day/Night Functionality: Ensures reliable performance in low-light situations, making it suitable for 24/7 surveillance.
  • Efficient Video Compression: H.264 video compression significantly reduces bandwidth and storage needs, allowing for more extended recordings without sacrificing quality.
  • Sharper Video Motion: Progressive scanning technology provides clearer images during motion, ensuring you don’t miss crucial details.
  • Wide-Angle Lens: The 3.7mm fixed lens offers an extensive field of view, capturing more area with fewer cameras.
  • Multiple Video Streams: Supports triple video streams simultaneously at 30 frames per second, allowing versatile recording and access options.
  • Powerful IR Capability: Equipped with powerful IR LED lights, the camera operates effectively in complete darkness, reaching up to 60 feet.
  • Local Storage Support: The Micro-SD memory card slot enables recording of local events, providing an additional layer of security.
  • Enhanced Image Quality: Backlight compensation and auto white balance improve image quality in challenging lighting conditions.
  • Advanced Detection Features: Includes motion detection, privacy masking, and FTP image upload to manage your surveillance intelligently.
  • Simultaneous Connections: Up to 10 simultaneous connections for remote monitoring, enhancing accessibility for multiple users.
  • Comprehensive Management: View and record from up to 64 cameras with unlimited ATV NVR units using the included ATVision IP Remote Management Software.
  • Network Interoperability: ONVIF compliant, ensuring full compatibility with other network video devices.
  • Flexible Power Options: Offers both PoE and 12VDC power supply options for convenient installation.
  • Durable Construction: Built with tough polycarbonate dome housing and 3-axis gimbal for flexible positioning and long-lasting performance.
  • Hot Failover Capability: Automatic power switching during failures ensures continuous operation.

ATV IPMD2FI Detailed Specifications

ModelIPMD2FI
Resolution2 Mega Pixels (1920 x 1080)
Lens3.7mm Fixed Lens
IR RangeUp to 60ft
Video CompressionH.264, MJPEG
Power OptionsPoE, 12VDC
Simultaneous Video StreamsUp to 3
ConnectionsUp to 10 simultaneous connections
Camera HousingPolycarbonate Dome
Network ProtocolONVIF Compliant
Storage SupportMicro-SD Card Slot
Additional FeaturesBacklight Compensation, Auto White Balance, Motion Detection
SKU  IPMD2FI
Features  Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Motion Detection Tracking, ONVIF, Privacy Masking
Manufacturer  ATV
Camera Signal     Network IP
Connection Type  Wired, Wireless
Infrared Distance    0~60 Feet
Resolution    2 Megapixel
Lens Type    Fixed
Lens Size    3.7mm
Mount Type  Ceiling, Wall
Compression Method    H.264, MPEG-4, M-JPEG
Durability    Indoor
Voltage  12vDC, PoE
Dimensions (W x H)  4.7ø x 3.5in (120ø x 88mm)
Electronic Shutter    1/20,000 ~ 1/30 (Slow shutter 1/15, 1/8 and 1/4)
Image Device    1/2.8 Progressive Scan Sony CMOS Sensor
IR LEDs  24
Minimum Scene Illumination  Color: 0.2Lux, B/W: 0.0Lux (F1.8, 50IRE with IR On)
Operating Humidity    0~80% (non-condensing)
Operating Temperature    14°F ~ 113°F (-10°C ~ 45°C)
Power Consumption  DC 12V 500mA, 6.0W / PoE 125mA, 6.0W (with IR on) Power over Ethernet IEEE 802.3af Class0
Privacy Zone    8 Windows
Protocols  TCP/IP, UDP, IPv4/v6, HTTP, HTTPS, QoS, FTP, uPnP, RTP, RTSP, RTCP, DHCP, ARP, Zeroconf, Bonjour
Angle of View    90.0°(H) x 50.0(V)
Motion Detection Tracking    Yes, max. 8 programmable zone
Automatic White Balance    Auto
IR Distance  20M/60ft
Auto Gain Control    Yes
Day/Night    Yes
Automatic White Balance    Yes
Back Light Compensation    Yes
Motion Detection Tracking    Yes
Privacy Masking    Yes
ONVIF  Yes
