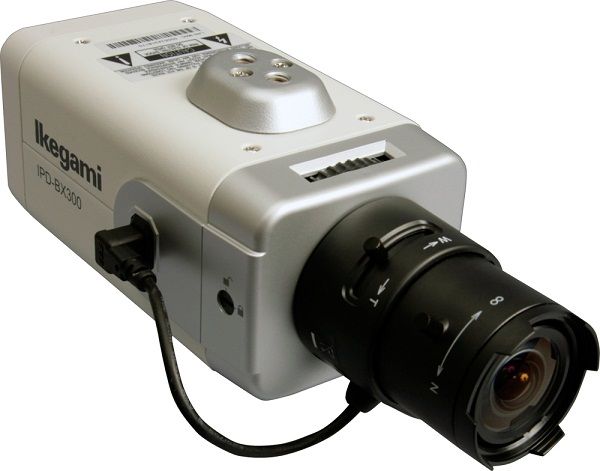

Ikegami IPD-BX300 2MP HD Indoor Box IP Network Camera

SKU
IPD-BX300
Model No
IPD-BX300
$358.40
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • 1/3" progressive scan CMOS sensor
  • Enhanced Digital WDR
  • New generation 3DNR technology
  • Latest H.264 Compression
  • Smearless

The IPD-BX300 2MP HD Indoor Box IP Network Camera from Ikegami monitors activities in both day and night time conditions. It features a 1/3" progressive scan CMOS sensor. This camera provides HD images, high sensitivity, and enhanced digital WDR to meet surveillance application needs. It is ONVIF compliant for ease of integration.

Features

  • 1/3" progressive scan CMOS sensor: Ensures sharp and clear images, improving overall monitoring quality.
  • Enhanced Digital WDR: Balances complex lighting environments, allowing for detailed visibility in challenging scenes.
  • New generation 3DNR technology: Reduces noise effectively, providing clearer images in low-light conditions.
  • Latest H.264 Compression: Saves bandwidth while maintaining video quality for efficient storage.
  • Smearless: Provides clear images even with bright lights in the frame, improving surveillance reliability.
  • Auto Iris Function: Automatically adjusts light settings, ensuring optimal image quality in changing conditions.
  • Day/Night Function: Switches between day and night modes seamlessly, enhancing nighttime surveillance.
  • PoE Compatible: Simplifies installation by allowing power and data to be transmitted over a single cable.
  • Audio Input/output: Facilitates audio monitoring and communication, adding another layer of situational awareness.
  • ONVIF Profile S compliant: Ensures compatibility with various security systems for easy integration.
  • Automatic White Balance (ATW or AWC): Adjusts color settings automatically for accurate color reproduction in varying lighting.
  • Analog Composite Video Output: Offers versatility in viewing options, making it easier to integrate with existing systems.
  • Privacy Mask: Conceals sensitive areas from view, enhancing user privacy.
  • Backlight Compensation: Improves image quality in high-contrast lighting, ensuring important details are clear.
  • Motion Detection: Alerts users to movement within the camera's view, increasing security responsiveness.
  • Optional IPv4: Provides network flexibility depending on surveillance needs.
  • Privacy Zone: Allows users to define specific areas in the camera's view that should not be recorded or monitored.

Ikegami IPD-BX300 Camera Specifications

Image Sensor1/3" progressive scan CMOS
Resolution2MP HD
Minimum Illumination0.1 Lux (Color), 0.01 Lux (B/W)
Lens TypeVarifocal
Digital WDRYes
CompressionH.264
Power SupplyPoE (802.3af)
DimensionsUpper limit 10cm x 10cm x 10cm
WeightApprox 800g
Operating Temperature-10°C to 50°C
SKU  IPD-BX300
Features  Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Motion Detection Tracking, ONVIF, Privacy Masking, Wide Dynamic Range
Manufacturer  Ikegami
Camera Signal     Network IP
Connection Type  Wired
Infrared Distance    Non Infrared
Resolution    2 Megapixel
Lens Type    Not Included
Mount Type  Bracket Required
Compression Method    H.264, M-JPEG
Durability    Indoor
Voltage  PoE
Automatic Gain Control (AGC)    Off / On, Selectable
Dimensions (W x H)  56 x 125 x 69mm
Electronic Shutter    1/7.5-1/10000 sec 1/6.25-1/10000 sec
Gamma Correction  0.45/1
Image Device    1/3" progressive scan CMOS sensor
Minimum Scene Illumination  Color: 0.3 lux at 50 IRE, F1.2, B/W: 0.01 lux at 50 IRE, F1.2
Operating Humidity    90%, non-condensing
Operating Temperature    -10°C to 50°C
Power Consumption  6W (Max)
Privacy Zone    Yes
Protocols  ARP, DHCP, DNS, HTTP, HTTPS, ICMP, IGMP, IPv4, NTP, RTSP/RTCP/RTP, TCP, TLS/TTLS, UDP
S/N Ratio  More than 50dB when AGC off
Signal System    NTSC | PAL
Video Output    1 x composite video out
Digital Noise Reduction    New generation 3DNR technology
Motion Detection Tracking    Yes
Back Light Compensation  Off / On (4 Area Selectable)
Automatic White Balance    ATW(2500K-10000K) / Manual
Auto Gain Control    Yes
Day/Night    Yes
Digital Noise Reduction    Yes
Automatic White Balance    Yes
Back Light Compensation    Yes
Motion Detection Tracking    Yes
Privacy Masking    Yes
Wide Dynamic Range    Yes
ONVIF  Yes
