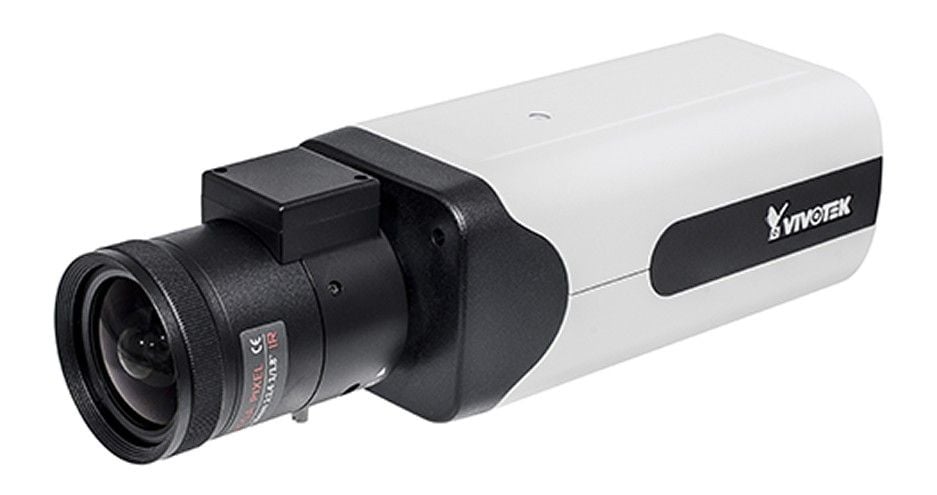

Vivotek IP816A-LPC-18 2 Megapixel License Plate Capture Box Network Camera

SKU
IP816A-LPC-18
Model No
IP816A-LPC-18
$1,070.00
Qty:
Product Highlights
    • 2-Megapixel CMOS Sensor
    • 30 fps @ 1920x1080, 60 fps @ 1920x1080 (one-stream mode only)
    • P-iris Lens
    • Headlight Filter to Block Visible Light
    • 3D Noise Reduction for Low-light Conditions

VIVOTEK’s IP816A-LPC (18mm) is a professional box network cameras offering perfect solutions for License Plate Capture with a unique headlight filter design and specialized firmware for traffic monitoring. Featuring dedicated LPC firmware and mutually compatible lens, the IP816A-LPC (18mm) is perfect for parking related applications. With a suitable selection of external IR LEDs, this camera will be ideal for 24/7 license plate capture and will provide high-detail polished images for reliable license plate recognition.

Equipped with a P-iris lens for extreme precision images, a headlight filter design which blocks distracting lights, and Full HD sensor enabling viewing resolution of 1920x1080 at a smooth 30 fps, the IP816A-LPC (18mm) is capable of capturing high quality and high resolution video in any conditions. With up to 2 Megapixel with WDR Pro, 3DNR and SNV technology, no matter whether in high contrast or in low light environments, this camera is high-tech workhorses which will ensure license plate capture and traffic monitoring of the highest precision. In order to help properly adjust the focus of this high resolution camera, the IP816A-LPC (18mm) is equipped with VIVOTEK’ s RBF (Remote Back Focus) System, allowing installers to adjust focus even more accurately in complicated or sensitive installation environments. Meanwhile, value-added features like EIS and Snapshot Focus ensure that the IP816A-LPC (18mm) performs as the perfect LPR solution by empowering installers to adjust camera positions and focus with extreme precision.

Features

  • 2-Megapixel CMOS Sensor
  • 30 fps @ 1920x1080, 60 fps @ 1920x1080 (one-stream mode only)
  • P-iris Lens
  • Headlight Filter to Block Visible Light
  • 3D Noise Reduction for Low-light Conditions
  • WDR Pro (100 dB) to Provide Extreme Visibility in High Light Contrast Scenes
  • SNV (Supreme Night Visibility)
  • RBF System to Assist for Precise Focus Adjustment
  • EIS (Electronic Image Stabilization) to Control Image Stability
  • Two-way Audio
  • Snapshot Focus
  • Video Rotation for Corridor View
  • Lens Profile for Lens Selection
  • Snapshot Focus
SKU  IP816A-LPC-18
Features  Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Digital Zoom, Motion Detection Tracking, ONVIF, Privacy Masking, Wide Dynamic Range
Manufacturer  Vivotek
NDAACompliant
Camera Signal     Network IP
Connection Type  Wired
Infrared Distance    Non Infrared
Resolution    2 Megapixel
Lens Type    Varifocal
Lens Size    4-18mm
Mount Type  Bracket Required
Compression Method    H.264, M-JPEG
Durability    Indoor
Voltage  12vDC, 24vAC, PoE
Dimensions (W x H)  230.2 (D) x 70 (W) x 63.5 (H) mm
Electronic Shutter    1/400 to 1/10,000 sec.
Image Device    1/1.9" Progressive CMOS
Minimum Scene Illumination  Illumination Threshold: 300 Lux @ IR On, 600 Lux @ IR Off
Operating Temperature    Starting Temperature: 0°C ~ 60°C (32°F ~ 122°F), Working Temperature: -10°C ~ 60°C (14°F ~ 122°F)
Power Consumption  Max. 9.2 W (DC 12V), Max. 15.4 W (AC 24V), Max. 12.2 W (PoE)
Protocols  IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP,802.1X, UDP, ICMP, ARP, SSL, TLS
S/N Ratio  50.8 dB
Digital Noise Reduction    3DNR
Angle of View    29° ~ 106° (Horizontal), 16° ~ 60° (Vertical), 33° ~ 130° (Diagonal)
Motion Detection Tracking    Triple-window video motion detection
AudioYes
Auto Gain Control    Yes
Day/Night    Yes
Digital Noise Reduction    Yes
Automatic White Balance    Yes
Back Light Compensation    Yes
Motion Detection Tracking    Yes
Privacy Masking    Yes
Wide Dynamic Range    Yes
Mirror    Yes
ONVIF  Yes
Digital ZoomYes
