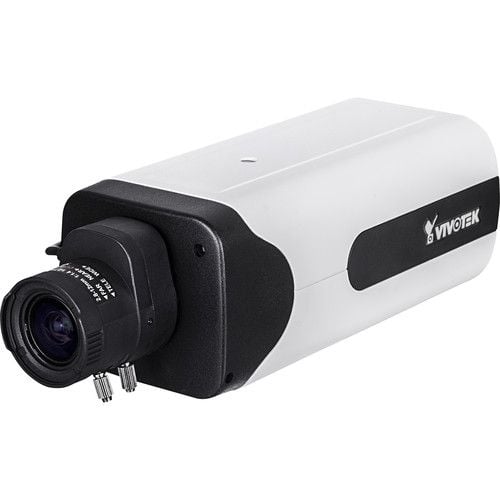

Vivotek IP8166 2 MP Fixed Network Camera, 2.8-12mm Lens

SKU
IP8166
Model No
IP8166
$262.16
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • 2-Megapixel CMOS Sensor
  • 30 fps @ 1920x1080
  • SNV (Supreme Night Visibility) for Low Light Conditions
  • Smart Stream II to Optimize Bandwidth Efficiency
  • WDR Enhanced for Unparalleled Visibility in High Contrast Environments

Vivotek’s IP8166 is a professional box network camera equipped with a Full HD sensor enabling a viewing resolution of 1920x1080 at a smooth 30 fps. The IP8166 is capable of capturing high quality, high resolution video at up to 2 Megapixels in low light environments with VIVOTEK’s SNV technology, making the camera ideal for a wide range of video surveillance applications, including supermarkets, banks, hotels and parking lots and also suitable for many more situations. Further empowering this professional 24/7 camera, Vivotek’s Smart Stream II technology enables the IP8166 to optimize quality for a desired region or area and therefore to maximize efficiency of bandwidth usage. The IP8166 can reduce both bandwidth and storage consumption by up to 50% while still retaining the same excellent image quality as a Full HD camera. To meet the demands of diverse scenarios, the IP8166 is compatible with a variety of accessories, from external IR LEDs and enclosures, to long-range solutions and PoE total solutions.

Vivotek IP8166 Camera Features

  • 2-Megapixel CMOS Sensor: Delivers sharp and detailed images for effective surveillance.
  • 30 fps @ 1920x1080: Provides smooth video playback, enhancing real-time monitoring.
  • SNV (Supreme Night Visibility): Guarantees high-quality video capture in low light conditions, making it reliable at all times.
  • Smart Stream II: Optimizes bandwidth usage and storage efficiency by focusing on important areas in the video.
  • WDR Enhanced: Ensures clear visibility in high-contrast environments, such as entrances and exits.
  • 3D Noise Reduction: Reduces noise in low-light conditions, improving overall video clarity.
  • Video Rotation: Provides a corridor view, perfect for monitoring narrow spaces.
  • Lens Profile: Ensures compatibility with various lenses for versatile camera setup.

Vivotek IP8166 Detailed Specifications

Product TypeFixed Network Camera
Resolution1920x1080 (Full HD)
Frame Rate30 fps
Sensor2-Megapixel CMOS
Low Light TechnologySNV (Supreme Night Visibility)
Bandwidth SavingSmart Stream II technology reduces consumption by up to 50%
WDR TechnologyWDR Enhanced for high contrast visibility
Noise Reduction3D Noise Reduction
Accessories CompatibilityCompatible with various accessories and solutions
Video RotationSupports corridor view functionality
SKU  IP8166
Features  Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Motion Detection Tracking, ONVIF, Privacy Masking, Wide Dynamic Range
Manufacturer  Vivotek
Camera Signal     Network IP
Connection Type  Wired
Infrared Distance    Non Infrared
Resolution    2 Megapixel
Lens Type    Varifocal
Lens Size    2.8-12mm
Mount Type  Bracket Required
Compression Method    M-JPEG
Durability    Indoor
Voltage  12vDC, 24vAC, PoE
Dimensions (W x H)  193 (D) x 70 (W) x 61 (H) mm
Electronic Shutter    1/5 sec. to 1/32,000 sec.
Image Device    1/2.8" Progressive CMOS
Minimum Scene Illumination  0.08 Lux @ F1.4 (Color), 0.001 Lux @ F1.4 (B/W)
Operating Humidity    90%
Operating Temperature    Starting Temperature: 0°C ~ 50°C (32°F ~ 122°F ), Working Temperature: -10°C ~ 50°C (14°F ~ 122°F )
Power Consumption  Max. 6.8 W
Protocols  IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, SSL,TLS
S/N Ratio  49 dB
Digital Noise Reduction    3DNR
Angle of View    38° ~ 101° (Horizontal), 21° ~ 63° (Vertical), 40° ~ 122° (Diagonal)
Motion Detection Tracking    Five-window video motion detection
AudioYes
Auto Gain Control    Yes
Day/Night    Yes
Digital Noise Reduction    Yes
Automatic White Balance    Yes
Back Light Compensation    Yes
Motion Detection Tracking    Yes
Privacy Masking    Yes
Wide Dynamic Range    Yes
Mirror    Yes
ONVIF  Yes
