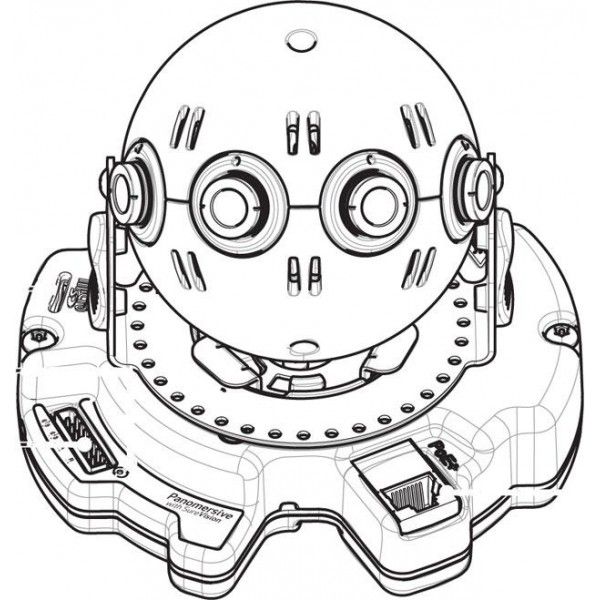

Pelco IMM12036-E-BASE 12 Megapixel 270° Panoramic Environmental Vandal Network Camera Base Module
SKU
IMM12036-E-BASE
Model No
IMM12036-E-BASE
$1,495.52
Product Highlights
- Constant, seamless situational awareness
- Zoom in for detail live or retrospectively with client-side dewarping
- Multiple immersive PTZ views at video management system (VMS)
- Up to 12 Megapixel (4 x 3 MPx) resolution for better detail at a distance
- Up to 30 frames per second (fps)
Speak to an expert
The Pelco 12 MP 270° Panoramic Environmental Vandal Network Camera provides exceptional surveillance capabilities with its advanced features. This camera ensures comprehensive situational awareness with seamless video integration, outstanding image quality, and robust analytics, making it an ideal choice for enhancing security in diverse environments.
Pelco 12 MP 270° Panoramic Camera Features
- High-Resolution Imaging: Captures up to 12 Megapixels (4 x 3 MPx) resolution, ensuring crystal-clear details over expansive areas.
- Seamless Situational Awareness: The Optera IMM Series camera with SureVision 2.0 provides panoramic views with stitched and blended images for a unified perspective.
- Exceptional Low-Light Performance: Equipped with SureVision 2.0 technology, the camera excels in low-light conditions while maintaining excellent dynamic range.
- Real-Time Video Capture: Achieves up to 12.5 frames per second (fps) at full resolution, providing near real-time streaming with essential video analytics for quick responses.
- Power over Ethernet Plus (PoE+): Simplifies installation with a single cable for power and data transmission, minimizing equipment and cabling requirements.
- Advanced Video Analytics: Integrated with eight Pelco behavioral analytics to enhance monitoring capabilities and help detect events of interest quickly.
Detailed Camera Specifications
| Specification | Details |
|---|---|
| Camera Type | 270° Panoramic Environmental Vandal Network Camera |
| Resolution | Up to 12 Megapixels |
| Frame Rate | Up to 12.5 fps at full resolution |
| Video Compression | H.264 level 5.1 high profile |
| Power Supply | Power over Ethernet Plus (PoE+) |
| Video Analytics | 8 Pelco video analytic behaviors |
| Compliance | ONVIF Profile S and Profile G |
| Storage Option | Micro SD local storage |
SKU  | IMM12036-E-BASE |
|---|---|
| Features | Audio, Auto Gain Control, Day/Night, Digital Noise Reduction, Heater & Fan, Motion Detection Tracking, On Screen Display Menu, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Pelco |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 12 Megapixel |
| Lens Type | Fixed |
| Lens Size | 2.7mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | PoE |
| Image Device | 1/3.2-inch Progressive scan CMOS |
| Minimum Scene Illumination | Color (33 ms): 0.3 lux, Mono (33 ms): 0.2 lux |
| Operating Humidity | 10 to 95%, RH condensing |
| Operating Temperature | –40° to 50°C (–40° to 122°F)† |
| OSD Menu | English, French, Italian, German, Spanish, Portuguese, Russian, Chinese, Turkish |
| Power Consumption | Without Heater: 17 Watts, With Heater: 23 Watts |
| Protocols | TCP/IP, UDP/IP (Unicast, Multicast IGMP), UPnP, DNS, DHCP, RTP, RTSP, NTP, IPv4, IPv6, SNMP v2c/v3, QoS, HTTP, HTTPS, SSH, SSL, SMTP, FTP, ARP, ICMP, and 802.1x (EAP) |
| S/N Ratio | >50 dB |
| Weatherproof | IP66 |
| Digital Noise Reduction | 3D |
| Processor | Intel® Core™ i3 processor, 2.4 GHz |
| Angle of View | Horizontal FoV: 360°, Vertical FoV: 73° |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Heater & Fan | Yes |
| Motion Detection Tracking | Yes |
| On Screen Display Menu | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
