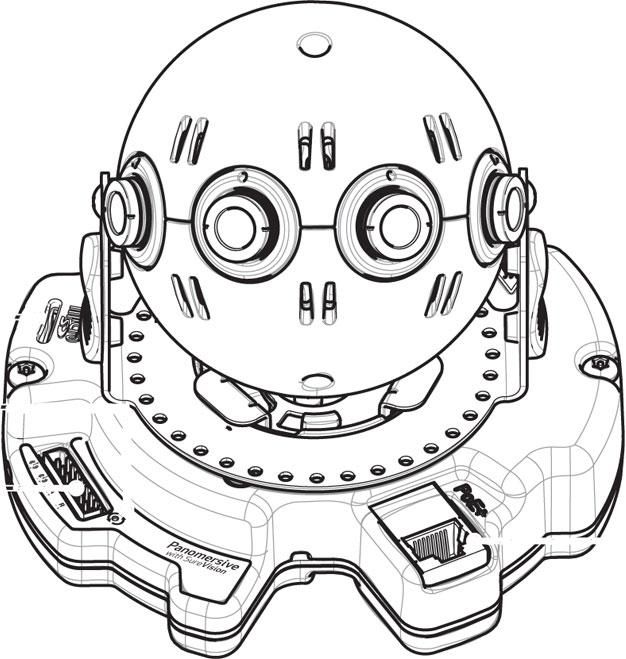

Pelco IMM12018-E-BASE 12 Megapixel 180° Panoramic Environmental Vandal Network Camera Base Module
SKU
IMM12018-E-BASE
Model No
IMM12018-E-BASE
$3,514.00
Product Highlights
- Constant, seamless situational awareness
- Zoom in for detail live or retrospectively with client-side dewarping
- Multiple immersive PTZ views at video management system (VMS)
- Up to 12 Megapixel (4 x 3 MPx) resolution for better detail at a distance
- Up to 30 frames per second (fps)
Speak to an expert
The Pelco 12 MP 180° Panoramic Environmental Vandal Network Camera (IMM12018-E-BASE) offers a revolutionary surveillance solution with its panomersive capabilities, delivering seamless situational awareness and high-resolution imagery. With SureVision 2.0 technology, this camera excels in low-light and dynamic conditions, while providing advanced analytics, multiple streams, and easy integration with existing video management systems (VMS). Ideal for comprehensive monitoring, it simplifies setup with Power over Ethernet Plus (PoE+), enhancing convenience and reliability.
Pelco 12 MP Camera Features
- Panomersive View: Enjoy uninterrupted situational awareness with stitched panoramic views that eliminate blind spots.
- SureVision 2.0 Technology: Achieve superior image quality in challenging lighting conditions thanks to advanced WDR and low-light performance.
- Real-Time Performance: Capture video at up to 12.5 fps at full resolution, ensuring timely monitoring of events.
- Versatile Encoding: Supports H.264 level 5.1 encoding with CVBR for efficient storage, optimizing bandwidth usage.
- Advanced Video Analytics: Equipped with eight Pelco behaviors for rapid detection of significant activities and zones, enhancing security response times.
- Power Over Ethernet Plus (PoE+): Simplifies installation and wiring by allowing power and data to be transmitted over a single cable.
Detailed Camera Specifications for Pelco IMM12018-E-BASE
| Camera Resolution | Up to 12MP (4 x 3 MPx) |
| Frame Rate | Up to 30 fps |
| Encoding | H.264 Smart Compression Technology |
| Analytics Capabilities | Includes eight Pelco video analytic behaviors |
| Networking Compatibility | ONVIF Profile S and Profile G conformant |
| Power Supply | Power over Ethernet Plus (PoE+) |
| Low-Light Performance | Superior low-light imaging with 3D noise filtering |
SKU  | IMM12018-E-BASE |
|---|---|
| Features | Audio, Auto Gain Control, Day/Night, Digital Noise Reduction, Heater & Fan, Motion Detection Tracking, On Screen Display Menu, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Pelco |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 12 Megapixel |
| Lens Type | Fixed |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | PoE |
| Image Device | 1/3.2-inch Progressive scan CMOS |
| Minimum Scene Illumination | Color (33 ms): 0.2 lux, Mono (33 ms): 0.14 lux |
| Operating Humidity | 10 to 95%, RH condensing |
| Operating Temperature | –40° to 50°C (–40° to 122°F) |
| OSD Menu | English, French, Italian, German, Spanish, Portuguese, Russian, Chinese, Turkish |
| Power Consumption | Without Heater: 17 Watts, With Heater: 23 Watts |
| Protocols | TCP/IP, UDP/IP (Unicast, Multicast IGMP), UPnP, DNS, DHCP, RTP, RTSP, NTP, IPv4, IPv6, SNMP v2c/v3, QoS, HTTP, HTTPS, SSH, SSL, SMTP, FTP, ARP, ICMP, and 802.1x (EAP) |
| S/N Ratio | >50 dB |
| Weatherproof | IP66 |
| Digital Noise Reduction | 3D |
| Processor | Intel® Core™ i3 processor, 2.4 GHz |
| Angle of View | Horizontal FoV: 180°, Vertical FoV: 41° |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Heater & Fan | Yes |
| Motion Detection Tracking | Yes |
| On Screen Display Menu | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
