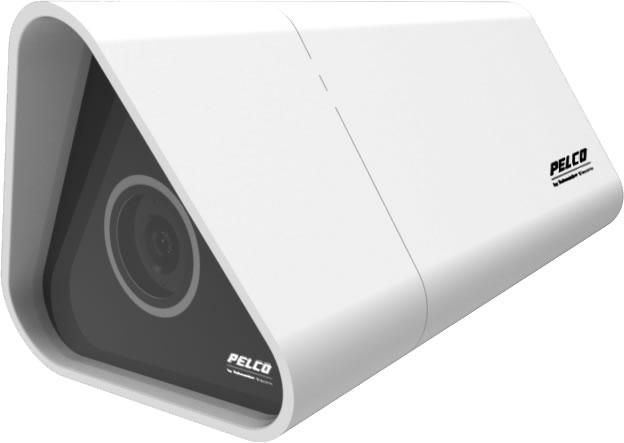

Pelco IL10-BP 1 Megapixel Indoor Box Camera, PoE
SKU
IL10-BP
Model No
IL10-BP
$516.00
Product Highlights
- 720p (1280 x 720) Resolution
- 30 Images per Second (ips)
- H.264 Compression
- Up to 2 Simultaneous Video Streams
- Selectable Bit Rate
Speak to an expert
The IL10-BP from Pelco is a 1 megapixel indoor box camera offering exceptional performance and versatility. With its integrated prefocused lens and flexible mounting options, installation is straightforward. This camera supports dual H.264 video streams while providing easy remote management through a standard web interface. Its advanced features like a one-click shutter for snapJPEG images and comprehensive compatibility with various video management systems ensure an efficient and effective surveillance solution.
Pelco IL10-BP Camera Features
- 720p (1280 x 720) Resolution: Provides clear and detailed video quality for reliable monitoring.
- 30 Images per Second (ips): Ensures smooth video playback for accurate event documentation.
- H.264 Compression: Reduces file size without sacrificing quality, enhancing storage efficiency.
- Up to 2 Simultaneous Video Streams: Allows flexible monitoring options to cater to diverse surveillance needs.
- Selectable Bit Rate: Users can optimize video quality vs. bandwidth/storage requirements according to their preferences.
- Minimum Illumination Down to 0.5 lux: Guarantees performance in low-light conditions for 24/7 surveillance.
- Integrated 68° Diagonal Field of View Lens: Captures a wide area, minimizing blind spots.
- Web-Based User Interface for Easy Setup and Configuration: Simplifies camera management and settings adjustments remotely.
- Multilingual Menus in User Interface: Supports various languages for user convenience.
- Power over Ethernet (IEEE 802.3af) or 24 VAC Options: Offers flexible power connectivity to suit different installation environments.
- Compatible with Pelco and Third-Party Video Systems: Provides versatility and ease of integration into existing setups.
- ONVIF Profile S Conformant: Ensures interoperability with a wide range of third-party video management systems.
Detailed Camera Specifications for Pelco IL10-BP
| Camera Type | Indoor Box Camera |
| Resolution | 1 Megapixel (720p) |
| Frame Rate | 30 ips |
| Compression | H.264 |
| Streams | Up to 2 simultaneous |
| Bit Rate | Selectable |
| Minimum Lux | 0.5 lux |
| Lens Field of View | 68° Diagonal |
| User Interface | Web-Based |
| Multilingual Support | Yes |
| Power Options | PoE (IEEE 802.3af) or 24 VAC |
| Compatibility | Pelco IP & Third-Party Systems |
| ONVIF Compliance | Profile S |
SKU  | IL10-BP |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Flickerless, Motion Detection Tracking, On Screen Display Menu, ONVIF |
| Manufacturer | Pelco |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired, Wireless |
| Infrared Distance | Non Infrared |
| Resolution | 1 Megapixel |
| Lens Type | Fixed |
| Lens Size | 1.92mm |
| Mount Type | Bracket Required |
| Compression Method | H.264 |
| Durability | Indoor |
| Voltage | PoE |
| Image Device | 1/6.9 inch CMOS |
| Minimum Scene Illumination | Color (33 ms): 3.0 lux, autoswitching, Color (200 ms) 0.5 lux, autoswitching |
| Operating Humidity | 15% to 85%, RH (noncondensing) |
| Operating Temperature | –0° to 40°C (32° to 104°F) |
| Power Consumption | <3 W |
| Protocols | HTTP, RTP, RTSP, NTP, IPv4, RTCP, UPnP, SSH, SSL |
| S/N Ratio | 50 dB |
| Angle of View | 68° |
| Motion Detection Tracking | 3 zones, plus background zone |
| Automatic White Balance | 2850° to 6500°K |
| Auto Gain Control | Yes |
| Automatic White Balance | Yes |
| Flickerless | Yes |
| Motion Detection Tracking | Yes |
| On Screen Display Menu | Yes |
| ONVIF | Yes |
