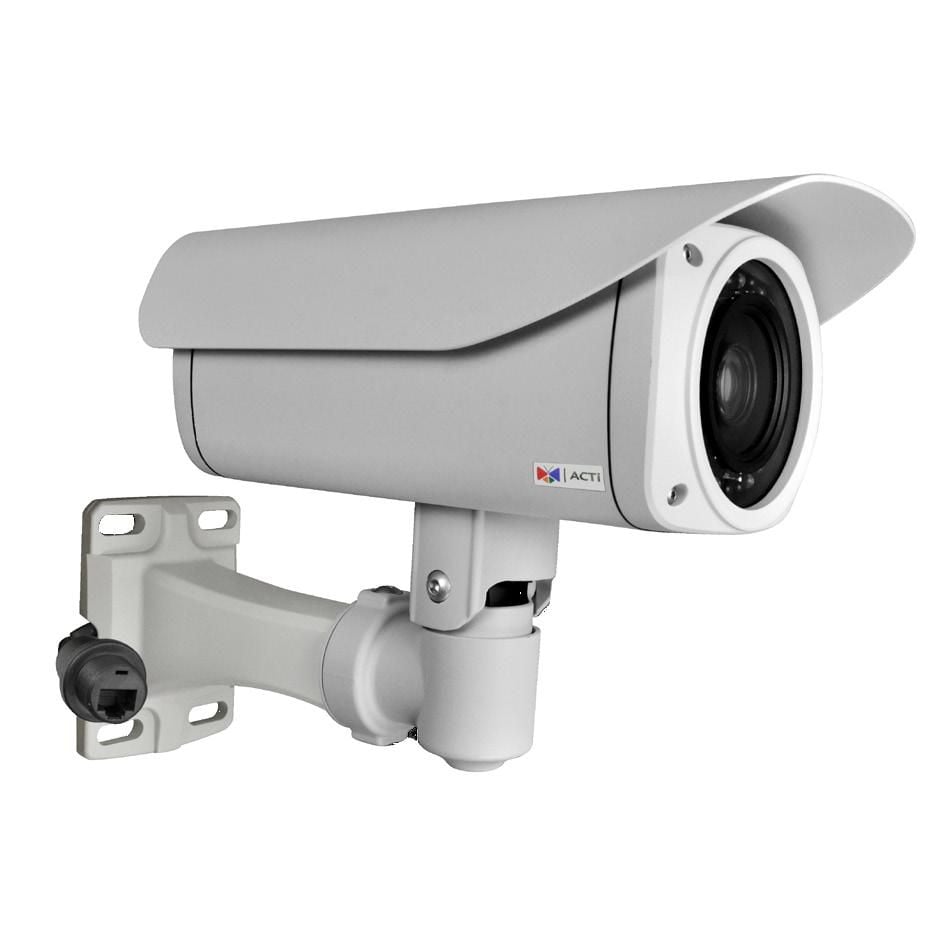

ACTi I47 4 Megapixel Outdoor IR Network Bullet Camera, 4.3-129mm Lens
Model No
I47
$2,247.75
Product Highlights
- 4 Megapixel with 1080p
- Day & Night with Superior Low Light Sensitivity and Adaptive IR LED
- 30x Zoom Lens with f4.3 - 129mm / F1.6 - 5.0, DC iris, Auto Focus
- Advanced WDR (75 dB)
- 30 fps at 1920 x 1080
Speak to an expert
The I47 from ACTi is a 4Mp 30x Outdoor Adaptive IR Network Vandal Bullet Camera designed for exceptional surveillance performance. Offering 4 Megapixel resolution, this camera ensures high-quality video while its weatherproof and vandal-proof casing provides durability for outdoor use.
ACTi I47 Camera Features
- 4 Megapixel with 1080p: Delivers crystal-clear video quality for enhanced surveillance visibility.
- Day & Night with Superior Low Light Sensitivity and Adaptive IR LED: Ensures continuous monitoring even in low-light conditions, enhancing security at all hours.
- 30x Zoom Lens with f4.3 - 129mm / F1.6 - 5.0, DC iris, Auto Focus: Offers versatile zoom capabilities to capture detailed images from various distances, making it ideal for expansive areas.
- Advanced WDR (75 dB): Provides excellent visibility in high-contrast lighting environments, allowing for precise monitoring of challenging conditions.
- 30 fps at 1920 x 1080: Ensures smooth video playback, capturing fast-moving subjects without blurring.
- Weatherproof (IP67) and Vandal Proof Metal Casing (IK10): Protects the camera against harsh weather and vandalism, ensuring reliable performance in diverse environments.
ACTi I47 Detailed Specifications
| Resolution | 4 Megapixels (1920 x 1080) |
| IR Capability | Adaptive IR LED for low-light performance |
| Zoom Lens | 30x motorized zoom lens (f4.3 - 129mm) |
| WDR | Advanced Wide Dynamic Range (75 dB) |
| Frame Rate | 30 fps |
| Weatherproof Rating | IP67 |
| Vandal Proof Rating | IK10 |
SKU  | I47 |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Day/Night, Digital Noise Reduction, Flickerless, ONVIF, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | ACTi |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 101 Feet + |
| Resolution | 4 Megapixel |
| Lens Type | Motorized Zoom |
| Lens Size | 30X |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 12vDC, PoE |
| Dimensions (W x H) | 122.4 mm x 223.7 mm x 317 mm (4.82” x 8.81” x 12.48”) |
| Electronic Shutter | 1/5 ~ 1/2,000 sec (manual mode); 1/5 ~ 1/10,000 sec (auto mode) |
| Image Device | 1/3'' Progressive Scan CMOS |
| Image Pixels-Effective | 2688 (H) x 1520 (V) (4.09 MP) |
| IR LEDs | 27 LED |
| IR Wavelength | 850 nm |
| Minimum Scene Illumination | Color: 0.1 lux at F1.6 (30 IRE, 2400°K); B/W: 0 lux (IR LED on) |
| Operating Humidity | 10% ~ 85% RH |
| Operating Temperature | -40°C ~ 50°C (-40°F ~ 122°F) |
| Power Consumption | PoE Class 3 (IEEE802.3af) / 6.48 W; DC 12V (adapter not included) / 8.4 W |
| Protocols | TCP, UDP, HTTP, HTTPs, DHCP, PPPoE, RTP, RTSP, IPv4, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour, Sony VISCA, Pelco-D, Pelco-P |
| S/N Ratio | 56 dB |
| Weatherproof | IP67 |
| Digital Noise Reduction | 2D+3D |
| Motion Detection Tracking | 3 regions |
| Automatic White Balance | automatic, hold, and manual |
| IR Distance | 40 meter |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Flickerless | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
