Linear HC1CH30-6SN Height Strip Camera No Labels, Silver

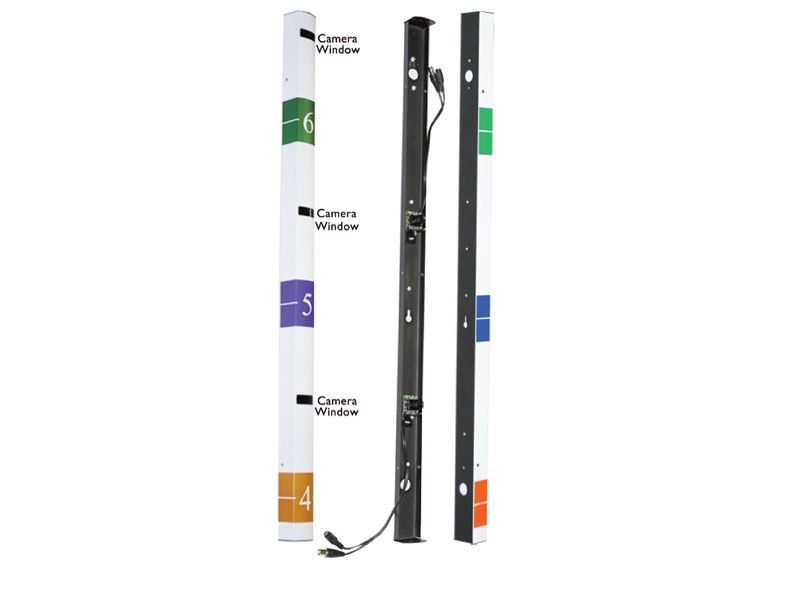

Height Strip cameras can be coupled with ceiling-mounted CCTV cameras to augment businesses’ surveillance capabilities. The ceiling cameras capture the subject’s height as he or she passes the height strip while the camera on-board the Height Strip captures facial images. Businesses that install height strip tape without an on-board camera run the risk of failing to capture facial images of subjects wearing a hat or hood. The Aigis Height Strip Camera was designed with ease of installation and high adjustability in mind. The curved front surface of the unit and tinted viewing windows allow the camera to be rotated for site specific adjustments. The camera’s 3.0mm IR corrected wide-angle lens provides a 78° horizontal field of view. The camera can be turned 22° left and right of center to capture the desired view. Sized to fit most standard door frames (1.75" width), and cable entry through the top, bottom, or rear of the unit allows the unit to be installed in a wide variety of environments. Equip the unit with an additional accessory camera and mount the Height Strip Camera between two doors to cover both entrance and exit with a single unit. Side-facing cameras can be installed to provide a profile shot across a doorway while the other on-board cameras face into the business.

Linear HC1CH30-6SN Height Strip Camera Features

• Onboard CCTV camera: included with base model for facial recognition.
• High-Resolution Imaging: 650TVL Color Hi-Res Camera with a 3.0mm wide angle lens ensures clear visuals.
• Power Requirements: Operates on 12VDC, 150mA per camera for energy efficiency.
• Durable Build: Made of robust aluminum construction for long-lasting performance.
• Camera Capacity: Accepts up to five cameras with options for two side-facing and three front-facing for comprehensive coverage.
• Wide Coverage Area: Unrivaled area coverage enhances security monitoring.
• Covert Camera Mounting: Cameras mount stealthily behind half-foot markers for discreet surveillance.
• Standard Frame Fit: Fits most standard door frames, allowing versatile installation.
• Height Indicators: Highly visible color coded height levels for quick identification.
• Wrap-around Labels: Labels are visible from the side, enhancing functional use.
• Enhanced Viewing Angle: Curved surface permits increased viewing angle, reducing blind spots.
• Easy Installation: Two-piece construction simplifies setup and maintenance.
• Accessory Bracket: Allows 90° left or right rotation of the unit for direct doorway views.

Linear HC1CH30-6SN Detailed Specifications
