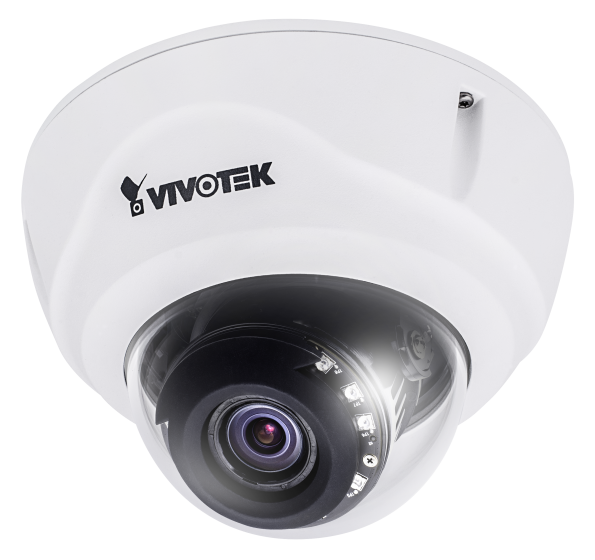

Vivotek FD9371-EHTV 3 Megapixel Outdoor Fixed Dome Network Camera, 3-9mm Lens
SKU
FD9371-EHTV
Model No
FD9371-EHTV
$655.40
Product Highlights
- H.265 Compression Technology
- 1/2.8" Progressive CMOS Sensor
- 30 fps @ 2048x1536
- Smart Stream II to Optimize Bandwidth Efficiency
- WDR Pro for Unparalleled Visibility in High Contrast Environments
Speak to an expert
The Vivotek FD9371-EHTV is a high-performance outdoor fixed dome network camera designed for remarkable video clarity and efficiency. With advanced H.265 compression technology and VIVOTEK's Smart Stream II, this camera offers superior image quality at a reduced bandwidth, making it ideal for professional surveillance needs. Its robust construction and intelligent features promise reliability in varied environmental conditions, providing users with peace of mind.
Vivotek FD9371-EHTV Camera Features
- H.265 Compression Technology: Reduces bandwidth and storage consumption up to 80% while maintaining high image quality.
- 1/2.8" Progressive CMOS Sensor: Ensures clear and detailed images in a compact design.
- 30 fps @ 2048x1536: Provides smooth video playback at high resolutions for enhanced detail.
- Smart Stream II to Optimize Bandwidth Efficiency: Adjusts the resolution of the specific area of interest, maximizing overall efficiency.
- WDR Pro for Unparalleled Visibility in High Contrast Environments: Delivers exceptional image quality in scenes with varying light conditions.
- Built-in IR Illuminators, Effective up to 30 Meters: Enhances night time surveillance capabilities, enabling clear images in complete darkness.
- Remote Focus for Easy Focus Adjustments: Facilitates quick setup and adjustments without manual interaction.
- Weather-proof IP66-rated and Vandal-proof IK10-rated Housing: Guarantees durability against harsh weather and vandalism, ensuring long-lasting performance.
- Extreme Weather Support with PoE: Operates effectively in a wide range of temperatures while utilizing Power over Ethernet for simple setup.
- SNV (Supreme Night Visibility) for Low Light Conditions: Provides optimal visibility, enhancing security coverage during nighttime.
- Video Rotation for Corridor View: Adapts the video perspective for specific monitoring needs.
- P-iris Lens: Offers improved depth of field and image contrast for better clarity.
Vivotek FD9371-EHTV Detailed Specifications
| Camera Type | Outdoor Fixed Dome Network Camera |
| Image Sensor | 1/2.8" Progressive CMOS |
| Resolution | 3 Megapixel (2048x1536) |
| Frame Rate | 30 fps |
| Compression Technology | H.265 / H.264 |
| Smart Stream II | Yes |
| WDR Pro | Yes |
| IR Range | Up to 30 Meters |
| Weather Resistance | IP66-rated |
| Impact Resistance | IK10-rated |
| Operating Temperature Range | -40°C to 50°C |
| Power over Ethernet | Supported |
| P-iris Lens | Yes |
SKU  | FD9371-EHTV |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Digital Zoom, Heater & Fan, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Vivotek |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 61~100 Feet |
| Resolution | 3 Megapixel |
| Lens Type | Varifocal |
| Lens Size | 3-9mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 12vDC, PoE |
| Dimensions (W x H) | Ø 155 x 103 mm |
| Electronic Shutter | 1/5 sec. to 1/16000 sec. |
| Image Device | 1/2.8" Progressive CMOS |
| IR LEDs | 4 |
| Minimum Scene Illumination | 0.01 Lux @ F1.2 (Color), 0.001 Lux @ F1.2 (B/W) |
| Operating Humidity | 0.9 |
| Operating Temperature | Starting Temperature: -40°C ~ 50°C (-40°F ~ 122°F), Working Temperature: -50°C ~ 50°C (-58°F ~ 122°F) |
| Power Consumption | Max. 24.7 W (Heater on) |
| Protocols | IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, SSL, TLS |
| S/N Ratio | 43 dB |
| Weatherproof | IP66 |
| Digital Noise Reduction | 3DNR |
| Angle of View | 41° ~ 86° (Horizontal), 31° ~ 64° (Vertical), 51° ~ 113 (Diagonal) |
| Motion Detection Tracking | Five-window video motion detection |
| IR Distance | 30m/98.42ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Heater & Fan | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
| Digital Zoom | Yes |
