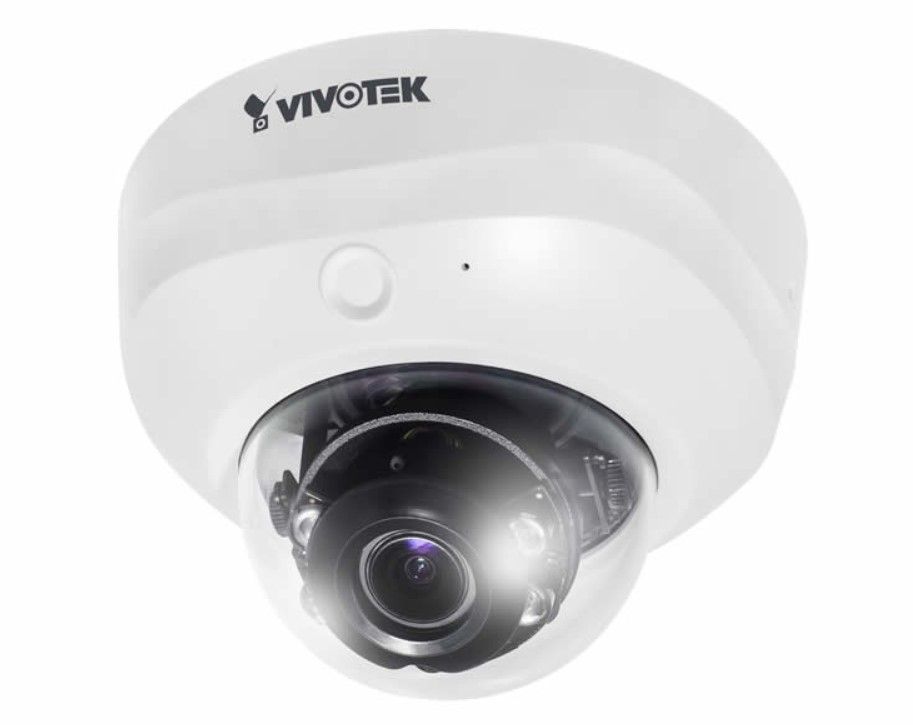

Vivotek FD8165H 2 Megapixel Indoor WDR Fixed Dome Network Camera, 3-10mm Lens

SKU
FD8165H
Model No
FD8165H
$144.00
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • 2-Megapixel CMOS Sensor
  • 30 fps @ 1920x1080
  • 60 fps @ 1920x1080 (one-stream mode only)
  • Motorized, P-iris Lens
  • Removable IR-cut Filter for Day & Night Function

The FD8165H from Vivotek is a 2 megapixel WDR fixed dome network camera, featuring a 3-10mm varifocal lens. This professional indoor network camera delivers exceptional image quality with up to 60 fps at 2-Megapixel resolution. Its Wide Dynamic Range Technology (WDR Pro) enhances visibility in contrasting lighting conditions, while 3D Noise Reduction ensures clear video even in low-light scenarios. With Smart IR technology and a precision-controlled P-iris lens, the FD8165H guarantees superior image sharpness and adaptability to varying light environments, making installation and operation user-friendly.

Vivotek FD8165H Camera Features

  • 2-Megapixel CMOS Sensor: Captures high-resolution images for detailed surveillance.
  • 30 fps @ 1920x1080: Provides smooth video playback in standard operation.
  • 60 fps @ 1920x1080 (one-stream mode only): Delivers ultra-smooth video ideal for fast-moving scenes.
  • Motorized, P-iris Lens: Automatically adjusts for optimal iris opening, improving focus and depth of field.
  • Removable IR-cut Filter for Day & Night Function: Allows for clear, true-color images during the day and superior night vision.
  • Built-in IR Illuminators, Effective up to 20 Meters: Ensures the camera captures clear images in complete darkness.
  • Smart IR Technology to Avoid Overexposure: Automatically adjusts infrared output to maintain image quality in varied lighting.
  • 3D Noise Reduction for Low-light Conditions: Minimizes noise, enhancing video clarity and reducing bandwidth usage during low-light scenarios.
  • WDR Pro to Provide Improved Visibility in Extremely Bright and Dark Environments: Balances image contrast for enhanced visibility in challenging lighting situations.
  • Smart Focus System for Remote and Precise Focus Adjustment: Facilitates easy setup and adjustments without physical intervention.
  • Two-way Audio: Enables communication through the camera for improved security and interaction.
  • Video Rotation for Corridor View: Optimizes the camera's field of vision for narrow areas.
  • EIS (Electronic Image Stabilization) to Control Image Stability: Reduces blurriness from camera movements, ensuring crisp video quality.

Vivotek FD8165H Detailed Specifications

Camera TypeFixed Dome Network Camera
Resolution2 Megapixels (1920x1080)
Frame RateUp to 60 fps (one-stream mode)
Lens3-10mm Varifocal P-iris Lens
IR Illumination DistanceUp to 20 Meters
Day/Night FunctionSmart IR with Removable IR-cut Filter
Noise Reduction3D Noise Reduction Technology
Wide Dynamic RangeWDR Pro
Audio SupportTwo-way Audio
Video OrientationSupports Corridor View
SKU  FD8165H
Features  Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Digital Zoom, Motion Detection Tracking, ONVIF, Privacy Masking, Wide Dynamic Range
Manufacturer  Vivotek
Camera Signal     Network IP
Connection Type  Wired
Infrared Distance    61~100 Feet
Resolution    2 Megapixel
Lens Type    Varifocal
Lens Size    3-10mm
Mount Type  Ceiling, Wall
Compression Method    H.264, M-JPEG
Durability    Indoor
Voltage  12vDC, 24vAC, PoE
Dimensions (W x H)  Ø: 157 mm x 109 mm
Electronic Shutter    1/5 sec. to 1/10000 sec.
Image Device    1/2.8" Progressive CMOS
IR LEDs  4 IR LEDs
Minimum Scene Illumination  0.16Lux @ F1.3 (Color), 0.001 Lux @ F1.3 (B/W)
Operating Temperature    -20°C ~ 50°C (-4°F~ 122°F)
Power Consumption  DC 12V: Max. 7.6 W, AC 24V: Max. 8.6 W, PoE: Max. 10.6 W
Protocols  IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP
S/N Ratio  62 dB
Video Output    10Base-T/100 BaseTX Ethernet (RJ-45)
Zoom Ratio    48x
Digital Noise Reduction    3D-DNR
Motion Detection Tracking    Triple-window video motion detection
IR Distance  up to 20 meters
AudioYes
Auto Gain Control    Yes
Day/Night    Yes
Digital Noise Reduction    Yes
Automatic White Balance    Yes
Back Light Compensation    Yes
Motion Detection Tracking    Yes
Privacy Masking    Yes
Wide Dynamic Range    Yes
Mirror    Yes
ONVIF  Yes
Digital ZoomYes
