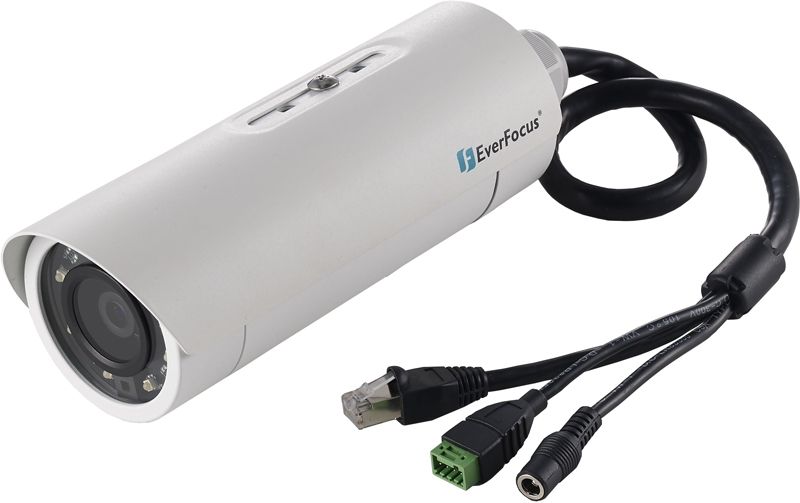

Everfocus EZN1260-8 2 Megapixel Full HD IR & WDR Network Bullet Camera, 8mm
SKU
EZN1260-8
Model No
EZN1260-8
$302.99
Product Highlights
- 1/2.7″ Full HD color CMOS image sensor delivers 2 Megapixel resolution
- Weather resistance IP66-rated metal housing
- High performance noise reduction function
- Wide dynamic range function
- Multi profiles for image settings
Speak to an expert
The Everfocus EZN1260-8 is a 2 Megapixel Full HD IR & WDR Network Bullet Camera designed to meet all your outdoor surveillance needs. With its weather-resistant housing, advanced imaging capabilities, and easy installation options like Power over Ethernet, this camera delivers top-notch performance, ensuring high-quality video surveillance day and night. The built-in micro SDHC card slot allows for local recording, while the camera’s compatibility with various video compression formats offers flexibility for different monitoring scenarios.
Everfocus EZN1260-8 Camera Features
- High Resolution: 1/2.7” Full HD color CMOS image sensor delivers 2 Megapixel resolution, ensuring clear and detailed images.
- Weather Resistance: IP66-rated metal housing protects against dust and water, ideal for outdoor use.
- Noise Reduction: High performance noise reduction function enhances image quality in challenging lighting conditions.
- Wide Dynamic Range: Wide dynamic range function captures details in both bright and dark areas for improved visibility.
- Customizable Image Settings: Multi profiles for image settings allow users to tailor the camera's output to their specific needs.
- User-Friendly Setup: Setup wizard enables easy Web UI setting, simplifying installation and configuration.
- Digital PTZ Support: Digital PTZ function allows for zooming in to capture details without sacrificing video quality.
- Multiple Video Streams: Supports streams from H.264, MPEG-4 and M-JPEG codec to maximize compatibility with surveillance systems.
- Edge Recording: Built-in micro SDHC slot enables local recording when an event is triggered, ensuring critical footage is captured.
- Night Vision: IR LEDs provide low Lux environment visibility up to 20 meters for effective nighttime monitoring.
- True Day/Night Functionality: Automatic IR filter operation ensures optimal performance in varying light conditions.
- Compact Design: Small size facilitates easy installation in various locations.
- Cable Management: Protects cables within the bracket, enhancing aesthetics and reducing wear.
- Triple Power Supply Options: Supports Power over Ethernet, 12 VDC and 24 VAC~, providing flexible installation choices.
- ONVIF / PSIA Compliance: Ensures compatibility with other network video devices, enhancing system integration.
- Hallway Display Support: Supports 9:16 mode for optimal monitoring of narrow spaces like hallways.
- Anti-Tampering Function: Alerts when tampering occurs, enhancing security.
- BNC Video Output: Simplifies on-site installation and verification with easy connectivity.
- Mobile Monitoring: Supports live monitoring from mobile devices via MobileFocus / MobileFocus Plus Apps for real-time surveillance.
Everfocus EZN1260-8 Detailed Specifications
| Image Sensor | 1/2.7” Full HD color CMOS |
| Resolution | 2 Megapixel (1920 x 1080) |
| Video Compression | H.264, MPEG-4, M-JPEG |
| Frame Rate | 30fps |
| IR Range | Up to 20 meters |
| Weather Resistance | IP66-rated |
| Power Options | Power over Ethernet, 12 VDC, 24 VAC |
| Storage | Built-in micro SDHC card slot |
| Dimensions | Compact |
| Compatibility | ONVIF / PSIA compliant |
| Mobile Access | MobileFocus / MobileFocus Plus Apps support |
SKU  | EZN1260-8 |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Day/Night, Digital Noise Reduction, Digital Zoom, Motion Detection Tracking, ONVIF, Privacy Masking, Weather Resistant, Wide Dynamic Range |
| Manufacturer | EverFocus |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 61~100 Feet |
| Resolution | 2 Megapixel |
| Lens Type | Fixed |
| Lens Size | 8mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, MPEG-4, M-JPEG |
| Durability | Weather Resistant |
| Voltage | 12vDC, 24vAC, PoE |
| Dimensions (W x H) | 61.8 x 198.9mm / 2.43” x 7.83” 61.8 x 309mm / 2.43” x 12.17” (with cable management) |
| Electronic Shutter | 4 ~ 1/15,000sec. |
| Image Device | 1/2.7" CMOS Sensor |
| IR LEDs | 8 LEDs |
| IR Wavelength | 850nm |
| Minimum Scene Illumination | Color: 1.5 Lux @ F1.8, B/W: 0.05 Lux @ F1.8, 0 Lux @ F1.8 (IR LEDs on) |
| Operating Humidity | 20% ~ 80% not condensing |
| Operating Temperature | -20°C~55°C / -4°F~131°F |
| Power Consumption | 12 VDC / 8.52W, 24 VAC~ /11.04W, PoE / 10.56W |
| Protocols | TCP/IP, IPV6, UDP, ICMP, DHCP, NTP, DNS, DDNS, SMTP, SNMP, FTP, HTTP, HTTPs, PPPoE, UPnP, Bonjour, RTP, RTSP, RTCP, UDP, IGMP, ICMP, ARP, ONVIF, PSIA |
| S/N Ratio | >50dB |
| Weatherproof | IP66 |
| Digital Noise Reduction | 3DNR |
| IR Distance | 20m/65ft |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
| Digital Zoom | Yes |
