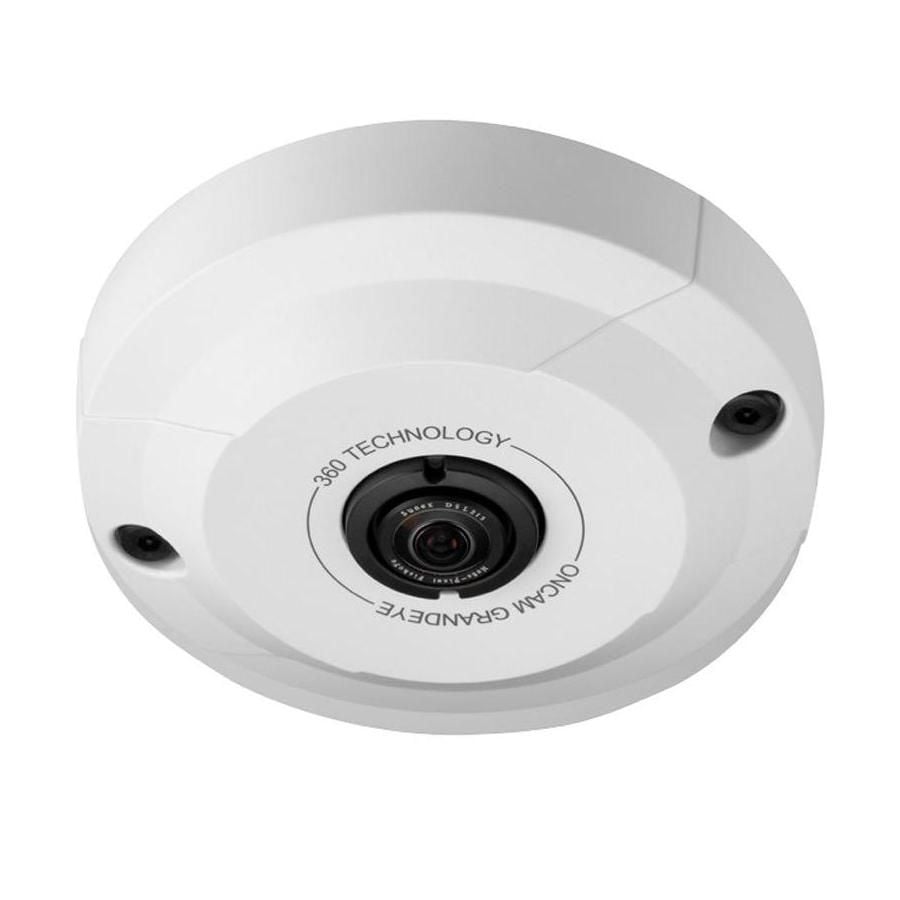

Pelco EVO-05LID 5 Megapixel Evolution Mini 360° Indoor Surface Mount Camera, White
SKU
EVO-05LID
Model No
EVO-05LID
$371.30
Product Highlights
- Compact diameter for discreet installations
- 5MP 1/2.5 CMOS sensor
- H.264 / MJPEG Multistream
- 0.2 lux
- Compatible with Oncam Grandeye 3D dewarping software
Speak to an expert
5 Megapixel Evolution Mini 360° Indoor Surface Mount Camera
- The EVO-05LID from Pelco is a 5 megapixel evolution mini 360° indoor surface mount camera, white body. The Evolution Mini Camera is a compact and affordable, entry-level IP panoramic camera that delivers the same image quality and performance as the Evolution 360° cameras, with nearly all of the same great features. The Evolution Mini Camera provides total situational awareness over a 360-degree field of view, generating a number of video streams at a choice of resolutions at up to 30 IPS as well as configurable privacy zones and video motion detection within defined areas of interest.
Camera Functions
Auto Gain Control
Auto White Balance
Motion Detection
Onvif
Privacy Masking
WDR
Camera Features
| Compact diameter for discreet installations | ONVIF Profile S Compliant |
| 5MP 1/2.5 CMOS sensor | Constant 360° surveillance with no blind spots |
| H.264 / MJPEG Multistream | No moving parts, no maintenance and silent operation |
| 0.2 lux | Up to 30 fps video stream at 1 MP and ¼ MP |
| Compatible with Oncam Grandeye 3D dewarping software | 0.2 lux minimum illumination and electronic WDR |
| Client-side dewarping on Pelco VideoXpert, Endura, Digital Sentry VMS and other compatible VMS platforms | PoE powered |
Introduction to Evolution 360 Degree IP Cameras
The Evolution range consists of a 5 megapixel camera and exciting features, including high frame rate, H.264, on-board SD card, supports POE, digital input and output and audio capabilities. Evolution also comes with a range of accessories including pole, pendant and wall mount. This new approach for 360-degree surveillance cameras greatly enhances the ease and speed of installation and does not limit the 360 to wall or ceiling mounts. A differentiating strength of the new Evolution range is its innovative modular design, capable of being mounted on a range of available housings to allow for indoor, outdoor, surface mount and concealed applications.
Additional Pelco Products
SKU  | EVO-05LID |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Motion Detection Tracking, ONVIF, Privacy Masking, Wide Dynamic Range |
| Manufacturer | Pelco |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 5 Megapixel |
| Lens Type | Fixed |
| Lens Size | 1.6mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG |
| Durability | Indoor |
| Voltage | PoE |
| Dimensions (W x H) | 107 x 34 mm (4.2 x 1.3 in.) |
| Image Device | 1/2.5-inch Sony CMOS Sensor |
| Minimum Scene Illumination | 0.2 lux = 50 IRE F/2.0 (6500K) |
| Operating Humidity | Up to 98% non-condensing |
| Operating Temperature | 0 to +40°C (-32 to +104°F) |
| Power Consumption | 4.13 W |
| Privacy Zone | 10 configurable privacy regions |
| Protocols | TCP/IP, HTTP, DHCP, DNS, NTP, FTP, SMTP, RSTP, uPNP |
| Weatherproof | IP40 |
| Wide Dynamic Range | Electronic WDR 60dB |
| Motion Detection Tracking | 8 configurable regions |
| Automatic White Balance | Auto White Balance (Range = approx. 2500K~8000K) |
| Auto Gain Control | Yes |
| Automatic White Balance | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
