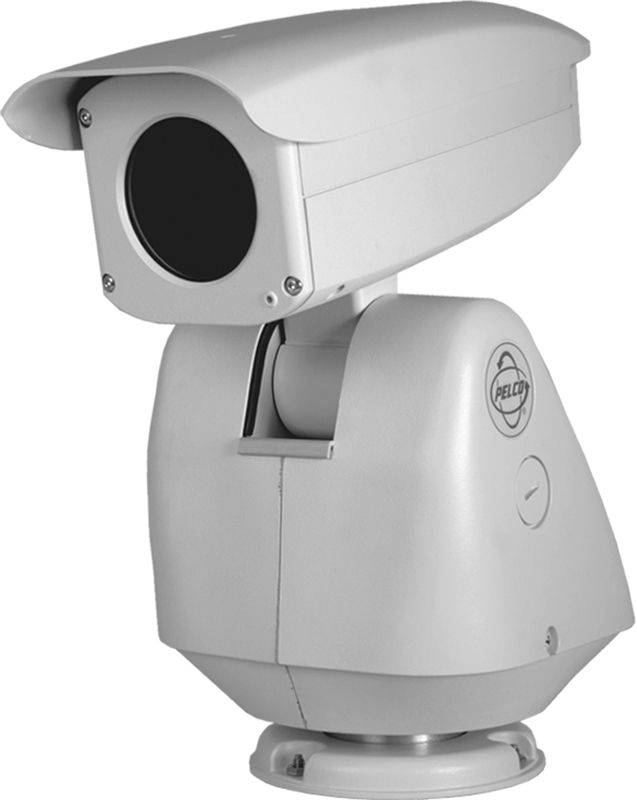

Pelco ESTI314-2W Sarix TI Series Thermal IP Positioning System, NTSC Wall Mount, 14.25mm
SKU
ESTI314-2W
Model No
ESTI314-2W
$22,490.88
Product Highlights
- Uncooled, Sun-Safe, Amorphous Silicon Microbolometer
- Long Wave Infrared (LWIR)
- Esprit® Pan/Tilt
- IP and Analog Capability
- 384 x 288 Resolution
Speak to an expert
The Pelco Sarix TI Series Thermal IP Positioning System, model ESTI314-2W, is engineered for high-performance surveillance, providing exceptional thermal imaging capabilities. This advanced system ensures clear detection and recognition of faces and objects, even in low visibility conditions. With a robust 360° pan rotation, variable speed control, and integrated analytics, it's designed for versatile applications across various locations.
Pelco ESTI314-2W Camera Functions
- Continuous Pan Rotation: 360° capabilities allow full area coverage, reducing blind spots.
- Variable Speed Control: Offers panning speeds from 0.1° to 100°/sec, enhancing tracking precision.
- High-Resolution Imaging: 384 x 288 resolution provides clear thermal images for enhanced security monitoring.
- Integrated Analytics: Advanced features support proactive surveillance through automated alerts and monitoring.
- Wide Tilt Range: +33° to -83° tilt capability enables versatile positioning for various surveillance scenarios.
Pelco ESTI314-2W Detailed Camera Specifications
| Image Sensor | Uncooled, Sun-Safe, Amorphous Silicon Microbolometer |
| Video Compression | H.264 and MJPEG Compression |
| Network Protocols | IP/Analog, ONVIF v1.02 Conformant |
| Pan/Tilt Mechanism | Esprit Pan/Tilt with Continuous 360° Rotation |
| Lens | 14mm Lens for optimal thermal imaging |
| Operation Current | 24 VAC 50/60 Hz Selectable |
| Image Sensitivity | Below NETD <50 mK at f/1.0 |
| Motion Detection | Adaptive Motion Detection for enhanced security |
| Maintenance | Designed for Minimal Maintenance, no gears to adjust |
SKU  | ESTI314-2W |
|---|---|
| Features | Auto Gain Control, Coaxitron, Motion Detection Tracking, Weather Resistant |
| Manufacturer | Pelco |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wireless |
| Infrared Distance | Non Infrared |
| Resolution | 384 X 288 |
| Lens Type | Fixed |
| Lens Size | 14.25mm |
| Mount Type | Wall |
| Compression Method | H.264, M-JPEG |
| Durability | Weather Resistant |
| Voltage | 24vAC |
| Operating Temperature | –40° to 50°C (–40° to 122°F) |
| Power Consumption | 3.87 A, 102.2 VA (100 W) |
| Protocols | TCP/IP, UDP/IP (Unicast, Multicast IGMP),UPnP, DNS, DHCP, RTP, RTSP, NTP, IPv4, SNMP,QoS, HTTP, HTTPS, LDAP (client), SSH, SSL,SMTP, FTP, and 802.1x (EAP) |
| Signal System | NTSC |
| Video Output | 1 Vp-p |
| Weatherproof | IP66 |
| Angle of View | 39° x 29° x 48° |
| Rotation Angle | 360° |
| Auto Gain Control | Yes |
| Motion Detection Tracking | Yes |
| Coaxitron | Yes |
