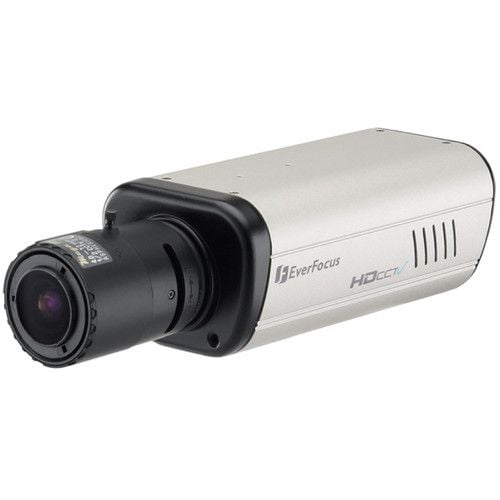

EverFocus EQH5202 2MP 1080p HD-SDI Day/Night Box Camera
SKU
EQH5202
Model No
EQH5202
$568.00
Product Highlights
- HD CCTV 2 MP real time 1920 x 1080 HD video over coaxial cable
- 2 MP progressive scan CMOS sensor
- Supports C-mount and CS-mount lenses (DC or manual)
- Day/night function with automatically swiveling IR cut filter
- Enhanced exposure control with WDR, BLC, HSBLC, DSS
Speak to an expert
The EverFocus EQH5202 Day & Night Camera with Progressive Scan and WDR allows viewing of real-time videos at FullHD (1920 x 1080) resolution. It offers enhanced exposure control with WDR, BLC, HSBLC, and DSS functionalities.
EverFocus EQH5202 Camera Features
- HD CCTV 2 MP real time 1920 x 1080 HD video over coaxial cable: Delivers high-quality video suitable for detailed monitoring.
- 2 MP progressive scan CMOS sensor: Ensures clear and crisp images for superior video capture.
- Supports C-mount and CS-mount lenses (DC or manual): Provides flexibility in lens selection to suit various applications.
- Day/night function with automatically swiveling IR cut filter: Enables effective surveillance in both day and night conditions.
- Enhanced exposure control with WDR, BLC, HSBLC, DSS: Improves visibility in challenging lighting environments for better image quality.
- On-screen programming: Allows for easy adjustments to camera settings directly on-screen.
- Dual video output: MP HD-SDI (BNC) plus SD TV out (adaptor cable) for installation: Facilitates versatile installation options and video output choices.
- 8 programmable privacy zones: Offers customizable security settings to protect sensitive areas within the camera's view.
- Dual power source: 12 VDC / 24 VAC: Provides options for reliable power supply, enhancing installation flexibility.
EverFocus EQH5202 Detailed Specifications
| Video Resolution | 1920 x 1080 (Full HD) |
| Sensor Type | 2 MP progressive scan CMOS |
| Lens Compatibility | C-mount and CS-mount (DC or manual) |
| Day/Night Function | Automatic IR cut filter |
| Exposure Control | WDR, BLC, HSBLC, DSS |
| Privacy Zones | 8 programmable zones |
| Power Supply | 12 VDC / 24 VAC |
| Video Outputs | MP HD-SDI (BNC), SD TV out |
| On-Screen Programming | Yes |
SKU  | EQH5202 |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Motion Detection Tracking, On Screen Display Menu, Privacy Masking, Wide Dynamic Range |
| Manufacturer | EverFocus |
Camera Signal  | HD-SDI |
| Resolution | 1080p |
| Sensor Option | 1/3" CMOS |
| Lens Type | Not Included |
| Infrared Distance | Non Infrared |
| Durability | Indoor |
| Mount Type | Bracket Required |
| Voltage | 12vDC, 24vAC |
| Back Light Compensation | Yes |
| Automatic White Balance | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| On Screen Display Menu | Yes |
| Wide Dynamic Range | Yes |
| Privacy Masking | Yes |
| Auto Gain Control | Yes |
| Motion Detection Tracking | Yes |
