Everfocus EHN1220-6 2 Megapixel Full HD WDR Mini Rugged Dome Network Camera, 6mm EHN1220-6 by EverFocus

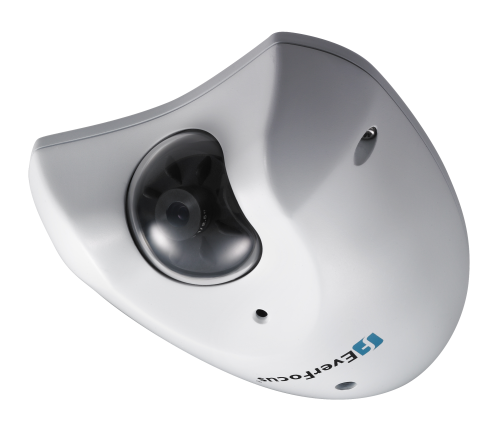

Everfocus EHN1220-6 2 Megapixel Full HD WDR Mini Rugged Dome Network Camera, 6mm

Everfocus EHN1220-6 2 Megapixel Full HD WDR Mini Rugged Dome Network Camera, 6mm

  • Everfocus EHN1220-6 2 Megapixel Full HD WDR Mini Rugged Dome Network Camera, 6mm Everfocus EHN1220-6 2 Megapixel Full HD WDR Mini Rugged Dome Network Camera, 6mm

SKU: EHN1220-6

Model #: EHN1220-6

Availability: Usually ships within 3-5 business days

Low Price Guarantee

Quick Overview


    • High performance noise reduction function

    • Wide dynamic range function

    • Multi profiles for image settings

    • Setup wizard for easy Web UI setting

    • Digital PTZ function support


  • Express Checkout:
  • Checkout with PayPal

See any errors on this page? Let us know.

Product Details

The EHN1220-6 from Everfocus is a 2 Megapixel Full HD WDR Mini Rugged Dome Network Camera, 6mm.

Features

  • 1/2.7” Full HD color CMOS image sensor delivers 2 Megapixel resolution
  • Vandal proof IK10-rated metal and weather proof IP67-rated metal housing
  • High performance noise reduction function
  • Wide dynamic range function
  • Multi profiles for image settings
  • Setup wizard for easy Web UI setting
  • Digital PTZ function support
  • Four streams from H.264, M-JPEG or MPEG-4
  • Built-in micro SDHC slot for a SDHC card enabling edge recording
  • 3-Axis mechanism (Pan: ±25° / Tilt: 0° ~ 90° / Rotate: ±90°)
  • Mini size, easy installation
  • Built-in microphone
  • Power over Ethernet
  • ONVIF / PSIA compliant
  • Support hallway display (9:16) mode
  • Anti-tampering function
  • BNC video output for simplified on-site installation and verification
  • Supports live monitoring of video from mobile devices via MobileFocus / MobileFocus Plus Apps (iOS and Android)

Downloads

  EHN1220/6-Specsheet

  EHN1220-6-User-Manual

Product Specifications

SKU  EHN1220-6
Manufacturer  EverFocus
Features  Auto Gain Control, Automatic White Balance, Day/Night, Digital Noise Reduction, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range
Connection Type  Wired
Infrared Distance   Non Infrared
Resolution   2 Megapixel
Lens Type   Fixed
Lens Size   6mm
Mount Type  Ceiling, Wall
Compression Method   H.264, MPEG-4, M-JPEG
Durability   Vandal Resistant, Weather Resistant
Voltage  12vDC, PoE
Dimensions (W x H)  130 x 112 x46.5mm / 5.12” x 4.41” x 1.83”
Electronic Shutter   4 ~ 1/15,000sec.
Image Device   1/2.7" Full HD CMOS Sensor
Minimum Scene Illumination  Color: 0.5 Lux, B/W: 0.1 Lux
Operating Humidity   20% ~ 80% not condensing
Operating Temperature   -40°C~55°C / -40°F~131°F (12 VDC), -20°C~55°C / -4°F~131°F (PoE)
Power Consumption  12 VDC 3.48W / PoE 6.2W
Power Requirements 10-36 VDC & PoE
Protocols  TCP/IP, IPV6, UDP, ICMP, DHCP, NTP, DNS, DDNS, SMTP, SNMP, FTP, HTTP, HTTPs, PPPoE, UPnP, Bonjour, RTP, RTSP, RTCP, UDP, IGMP,ICMP, ARP, ONVIF, PSIA
S/N Ratio  >50dB
Weatherproof   IP67
Digital Noise Reduction   3DNR
Rotation Angle Pan: ±25°, Tilt: 0° ~ 90°, Rotate: ±90°
Audio Yes
Auto Gain Control   Yes
Day/Night   Yes
Digital Noise Reduction   Yes
Automatic White Balance   Yes
Motion Detection Tracking   Yes
Privacy Masking   Yes
Wide Dynamic Range   Yes
ONVIF  Yes
