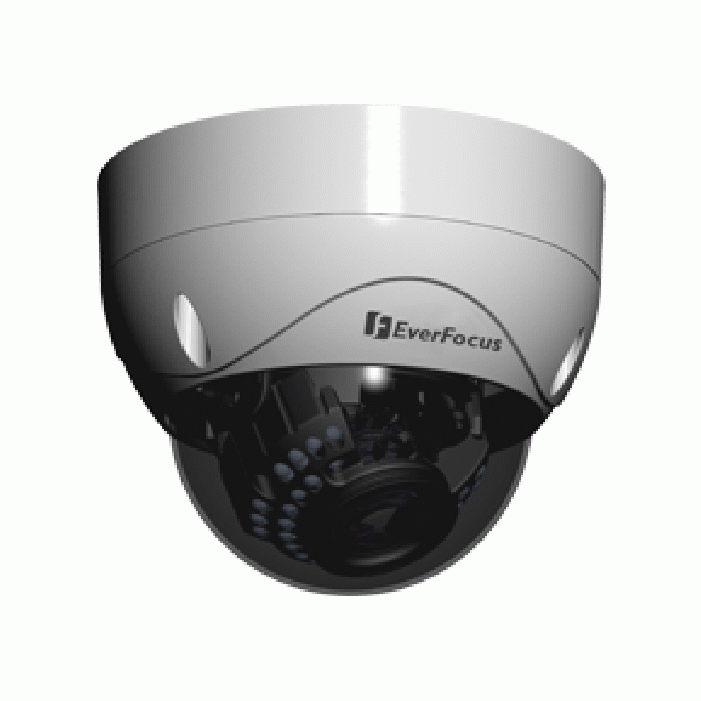

EverFocus EHH5241 1080p Analog Outdoor IR Vandal Dome Camera, 3-9mm Lens
SKU
EHH5241
Model No
EHH5241
$988.00
Product Highlights
- HDcctv Megapixel real time 1920x1080 or 1280x720 HD video over coax for superlative image detail
- HDcctv Alliance Base Line Compliance
- True day/night operation with automatic ICR module
- Includes DNR to improve picture clarity while enabling DVRs to improve disk storage utilization
- 3-9mm AI VF megapixel lens captures the desired field of view
Speak to an expert
The EverFocus EHH5241 is a premium 1080p Analog Outdoor IR Vandal Dome Camera equipped with a 3-9mm Varifocal Lens, designed to deliver exceptional image quality and durability in various environments. Its advanced features make it ideal for both residential and commercial surveillance needs.
EverFocus EHH5241 Camera Features
- HDcctv Quality: Real-time 1920x1080 or 1280x720 HD video over coax ensures superior image detail for enhanced security monitoring.
- Compliance: HDcctv Alliance Base Line Compliance guarantees compatibility with other HDcctv systems.
- Day/Night Operation: Automatic ICR module enables true day/night functionality for consistent performance in varying light conditions.
- Dynamic Noise Reduction (DNR): Improves picture clarity and allows DVRs to optimize disk storage utilization.
- Varifocal Lens: The 3-9mm AI VF megapixel lens captures the desired field of view, giving flexibility in surveillance setup.
- User-Friendly OSD: An easy-to-use On-Screen Display setup menu simplifies configuration and adjustments.
- Flexible Mounting: A 3-axis design allows for versatile wall or ceiling mounting options.
- Vandal Resistant: Robust construction provides resilience against intentional damage, enhancing security.
- Weather Resistance: IP66 rating indicates excellent protection against dust and water, ensuring reliable outdoor performance.
- Infrared Capability: IR illuminators work up to 100 feet, maintaining visibility in low-light conditions.
- Convenient Installation: Surface mount design with an optional wall arm mount bracket for added flexibility.
- Multiple Video Outputs: Supports a variety of video outputs, including 1080i60/50, 1080p30/25, and 720p60/50/30/25 (field selectable).
- Test Monitor Support: S/D Analog Test TV-Out for easy setup, aiming, and focusing using a standard handheld test monitor.
- Power Options: Dual power source 12VDC/24VAC for versatile installation scenarios.
- Brightness Control: BLC & Electronic WDR functions effectively manage bright and unbalanced lighting conditions.
EverFocus EHH5241 Detailed Specifications
| Camera Type | 1080p Analog Outdoor IR Vandal Dome |
| Lens | 3-9mm Varifocal AI Megapixel Lens |
| Video Resolution | 1920x1080 or 1280x720 HD |
| IR Distance | Up to 100 feet |
| Weather Rating | IP66 |
| Power Supply | 12VDC/24VAC |
| Video Outputs | 1080i60/50, 1080p30/25, 720p60/50/30/25 (field selectable) |
| Dimensions | Compact design for versatile installation |
SKU  | EHH5241 |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, On Screen Display Menu, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | EverFocus |
Camera Signal  | HD-SDI |
| Resolution | 1080p |
| Sensor Option | 1/2.8" CMOS |
| Lens Type | Varifocal |
| Lens Size | 3-9mm |
| Infrared Distance | 61~100 Feet |
| Durability | Vandal Resistant, Weather Resistant |
| Mount Type | Ceiling, Wall |
| Voltage | 12vDC, 24vAC |
| Electronic Shutter | Auto/Manual selectable |
| Image Device | 1/2.8” Sony Exmor R 2.1 megapixel color progressive CMOS sensor |
| Image Pixels-Effective | 1920x1080 |
| IR Distance | 30.48m/100ft |
| IR Wavelength | 850nm |
| Minimum Scene Illumination | 1 lux/F=1.4; 0 lux (IR LED ON) |
| Operating Temperature | -10° ~ 50°C/ 14° ~ 122°F |
| Dimensions (W x H) | 5.94” x 4.86” |
| Power Consumption | 12VDC: 800mA max, 24VAC: 10W max (˜420mA) |
| S/N Ratio | 50 dB max |
| Signal System | NTSC, PAL |
| Video Output | NTSC/PAL selectable 1V p-p (in test mode only) |
| Weatherproof | IP66 |
| Backlight Compensation | On/Off selectable |
| Automatic White Balance | ATW/Push/Manual/Specific Color or Color Temperature |
| Auto Gain Control | Yes (Level 0-186) |
| Back Light Compensation | Yes |
| Automatic White Balance | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| On Screen Display Menu | Yes |
| Wide Dynamic Range | Yes |
| Auto Gain Control | Yes |
