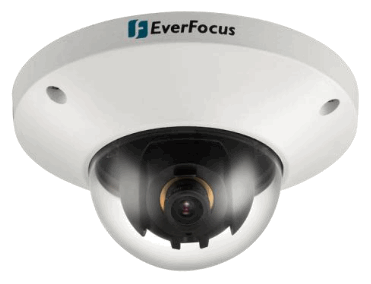

EverFocus EDN228-3 2 Megapixel Mini Dome WDR Network Camera, 3.6 mm Lens

SKU
EDN228-3
Model No
EDN228-3
$183.76
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • Wide dynamic range
  • Provides true day / night functionality with automatic IR filter operation
  • Multi profiles settings for allows choice of image quality to fit the environment
  • High performance noise filter improves image quality
  • Dual power capability PoE or 12 VDC for flexible installation

The EDN228-3 from EverFocus is a 2 megapixel mini dome WDR network camera designed for versatility and high-performance monitoring. It features a 3.6 mm lens and offers an array of capabilities that ensure high-quality imaging in various lighting conditions while providing flexible installation options for any security requirement.

EverFocus EDN228-3 Camera Features

  • Image Sensor: 1/2.8” HD color CMOS image sensor delivers high resolution, ensuring clear imaging performance in various environments.
  • Dynamic Range: Wide dynamic range capability allows the camera to capture details in both bright and dark areas, providing a balanced image.
  • True Day/Night Functionality: Automatic IR filter operation ensures optimal performance day and night, enhancing surveillance effectiveness.
  • Multi Profiles Settings: Choice of image quality settings to fit the environment, enabling adaptability to different monitoring needs.
  • Noise Filter: High performance noise filter improves image quality, particularly in low-light conditions.
  • Power Options: Dual power capability (PoE or 12 VDC) offers flexible installation options for diverse setups.
  • Mobile Monitoring: Supports live video monitoring from mobile devices via MobileFocus / MobileFocus Plus apps (iOS and Android), ensuring remote access to surveillance feeds.
  • Compatibility: ONVIF / PSIA compliant, making it compatible with a wide range of security systems and software.

EverFocus EDN228-3 Detailed Camera Specifications

FeatureDetails
ModelEDN228-3
Image Sensor1/2.8” HD color CMOS
Resolution2 Megapixels
Lens3.6 mm
Dynamic RangeWide dynamic range
IR FilterAutomatic day/night IR filter
Noise ReductionHigh performance noise filter
PowerPoE or 12 VDC
Mobile SupportMobileFocus / MobileFocus Plus (iOS and Android)
ComplianceONVIF / PSIA compliant
SKU  EDN228-3
Features  Auto Gain Control, Back Light Compensation, Day/Night, Motion Detection Tracking, Privacy Masking, Wide Dynamic Range
Manufacturer  EverFocus
Camera Signal     Network IP
Connection Type  Wired
Infrared Distance    Non Infrared
Resolution    2 Megapixel
Lens Type    Fixed
Lens Size    3.6mm
Mount Type  Ceiling, Wall
Compression Method    H.264, MPEG-4, M-JPEG
Durability    Indoor
Voltage  12vDC, PoE
Dimensions (W x H)  58.5 x 110mm / 2.3” x 4.33”
Electronic Shutter    1/7.5 ~ 1/15,000 sec
Image Device    1/2.8” SONY Progressive Scan CMOS Sensor
Minimum Scene Illumination  Color: 0.2 Lux at F1.4, B/W: 0.05 Lux at F1.4
Operating Humidity    20% ~ 80% not condensing
Operating Temperature    -10°C ~ 50°C / -14°F~122°F
Power Consumption  5W Max
Privacy Zone    Yes
Protocols  TCP/IP, IPV6, UDP, ICMP, DHCP, NTP, DNS, DDNS, SMTP, SNMP, FTP, HTTP, HTTPs, PPPoE, UPnP, Bonjour, RTP, RTSP, RTCP, UDP, IGMP,SSL, ICMP, ARP, ONVIF, PSIA
S/N Ratio  > 50 dB
Signal System    NTSC / PAL
Auto Gain Control    Yes
Day/Night    Yes
Back Light Compensation    Yes
Motion Detection Tracking    Yes
Privacy Masking    Yes
Wide Dynamic Range    Yes
