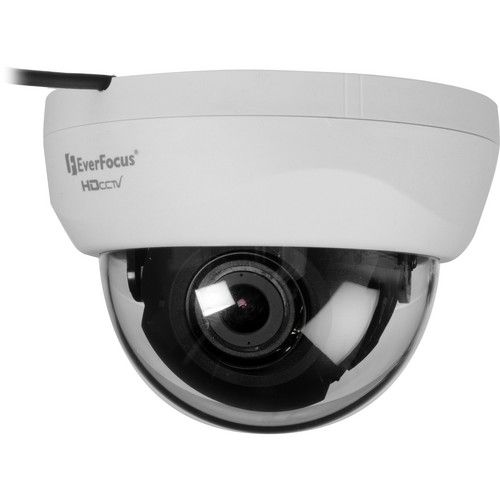

EverFocus EDH5210W 1080p HD Indoor Dome Camera, White

SKU
EDH5210W
Model No
EDH5210W
$526.00
Qty:
Product Highlights
    • Supports video outputs of 1080p 30 / 25 and 720p 60 / 50 (field select)
    • Varifocal 3.6 to16mm Mp lens
    • Choice of day / night operation or full color images in low light
    • Provides 3D DNR to improve picture clarity while enabling DVRs to improve disk storage utilization
    • 3-axis Gimbal for flexible mounting and positioning

The EDH5210W from EverFocus is a HD CCTV 1080p Indoor 3-Axis Dome Camera that features day / night capability. Based on a 1/2.8” Sony 2.43 Mp progressive scan sensor and varifocal 3.6 to 16mm Mp lens for HD 1080p resolution digital images, this camera delivers good quality video footage. It not only captures critical evidentiary information, but the inherent ability for Megapixel video also extends the area of coverage, expedites completion of investigations and resolves complaints. Designed with SENS-UP up to 8x low light enhancement technology, this Dome Camera can capture color images in very low light without ghosting. Not only that, it can automatically switch to monochrome mode in low light environments. This imaging system also incorporates various optical enhancement technologies. For example, Lens Shading Correction eliminates artificial shadows caused by attenuation of light as it traverses the outer portions of the lens. The Digital Slow Shutter Light Enhancement technology combines with 3D DNR (Digital Noise Reduction) to maximize image clarity while conserving DVR disk storage space.

Its digital WDR (Wide Dynamic Range) handles challenging lighting conditions, while its digital zoom with electronic PTZ (Pan / Tilt / Zoom) is used to fine tune the field of view. The HSBLC (Highlight Suppression) handles imbalance due to bright spots in the scene, image flip / rotate, and much more. To deploy this technology, no major upgrade to your existing IT network is required. This HD CCTV camera can communicate at digital speeds up to 1.5 Gb/s over a coaxial cable (RG59 or other types for longer distances), using industry standard BNC connectors. With its NTSC / analog secondary output to allow convenient aim and focus using a standard hand-held test monitor, full OSD (On-Screen Display) controls, 3-axis positioning and 94° wide horizontal viewing angle Megapixel lens, this camera delivers flexible and robust coverage in a wide range of low light surveillance applications while delivering good HD image quality.

CCTV Resolution Comparison

Features

  • HD CCTV 2.1 Megapixel real time 1920 x 1080 / 1280 x 720 HD video over coax for superlative image detail
  • Supports video outputs of 1080p 30 / 25 and 720p 60 / 50 (field select)
  • Varifocal 3.6 to16mm Mp lens
  • Choice of day / night operation or full color images in low light
  • Provides 3D DNR to improve picture clarity while enabling DVRs to improve disk storage utilization
  • 3-axis Gimbal for flexible mounting and positioning
  • Easy-to-use OSD setup menu with an array of options
  • Enhanced low-light sensitivity increase of up to 8x
  • Lens shading compensation to offset diminished light transmission through lens periphery for uniform image illumination
  • Electronic WDR and HSBLC (Highlight Suppression Back Light Compensation) to handle lighting imbalance and bright areas in the scene
  • Digital zoom increases effective lens magnification up to 20x
  • Up to 24 privacy zones
  • Dead pixel compensation for increased clarity and extended service life
  • SD TV out for aim and focus using a standard hand held test monitor
SKU  EDH5210W
Features  Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, On Screen Display Menu, Privacy Masking, Wide Dynamic Range
Manufacturer  EverFocus
Camera Signal     HD-SDI
Resolution    1080p
Sensor Option    1/2.8" CMOS
Lens Type    Varifocal
Lens Size    3.6-16mm
Infrared Distance    Non Infrared
Durability    Indoor
Mount Type  Ceiling
Voltage  12vDC
Electronic Shutter    Auto / Manual selectable
Image Device    1/2.8" Sony 2.43 Mp color progressive CMOS sensor
Minimum Scene Illumination  0.1 lux / F=1.2 (SENS-UP OFF)
Operating Humidity    20 to 80% non-condensing
Operating Temperature    14 to 122°F (-10 to 50°C)
Dimensions (W x H)  Body: 3.75 x 5.37" (95.3 x 136.4 mm) maximum (H x base diameter)
OSD Menu    English
Power Consumption  220 mA
Privacy Zone    24 areas independently adjustable for size, location, color
S/N Ratio  More than 50 dB
Signal System    NTSC, PAL
Digital Noise Reduction    Low / Medium / High (3D)
Backlight Compensation    Off / On
Automatic White Balance    ATW / Push / Manual
Back Light Compensation    Yes
Automatic White Balance    Yes
Day/Night    Yes
Digital Noise Reduction    Yes
On Screen Display Menu    Yes
Wide Dynamic Range    Yes
Privacy Masking    Yes
Auto Gain Control    Yes
