ACTi E96 5MP 360-Degree IP Fisheye Vandal Dome, 1.19mm
Model No
E96
$498.15
Product Highlights
- 5 Megapixel
- Fixed Lens with f1.19 mm / F2.0
- Basic WDR (74 dB)
- 15 fps at 2592 x 1944
- 180/360° Fisheye View
Speak to an expert

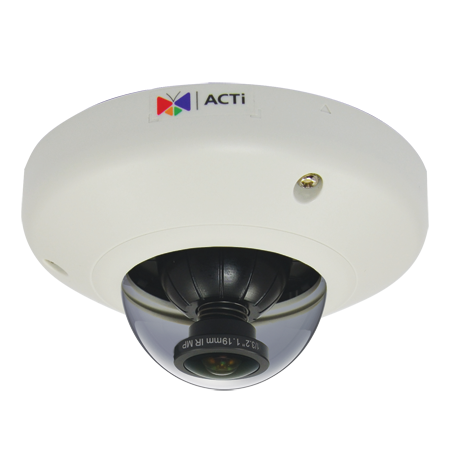

The ACTi E96 5-Megapixel Vandal-Resistant Indoor Mini Dome Camera (NTSC) offers high-resolution imaging combined with a 1.19mm hemispheric fisheye lens for comprehensive surveillance. This innovative camera features PoE for simplified installation and basic WDR technology to ensure clear images in varying lighting conditions.
ACTi E96 Camera Features
- 5 Megapixel: Provides exceptional image clarity and detail, making it ideal for surveillance in various environments.
- Fixed Lens with f1.19 mm / F2.0: The wide-angle lens covers significant areas, minimizing blind spots and enhancing coverage efficiency.
- Basic WDR (74 dB): Ensures clear image quality even in scenes with both bright and dark areas, improving visibility in challenging lighting conditions.
- 15 fps at 2592 x 1944: Delivers smooth video performance, capturing video with sufficient detail for identification purposes.
- 180/360-Degree Coverage: Offers flexible mounting options to monitor vast spaces without the need for multiple cameras, simplifying operations.
ACTi E96 Detailed Camera Specifications
| Model | ACTi E96 |
| Type | 5MP IP Fisheye Vandal Dome |
| Lens | 1.19mm Fixed |
| Resolution | 2592 x 1944 pixels |
| Frame Rate | 15 fps |
| WDR | Basic (74 dB) |
| Power Supply | Power over Ethernet (PoE) |
| Coverage | 180/360 Degrees |
| Vandal-Resistant | Yes |
SKU  | E96 |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Day/Night, Digital Noise Reduction, Flickerless, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Wide Dynamic Range |
| Manufacturer | ACTi |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 5 Megapixel |
| Lens Type | Fixed |
| Lens Size | 1.19mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG |
| Durability | Indoor, Vandal Resistant |
| Voltage | PoE |
| Dimensions (W x H) | 110 mm x 58 mm (4.3" x 2.3") |
| Electronic Shutter | 1/5 ~ 1/2,000 sec (manual mode); 1/5 ~ 1/10,000 sec (auto mode) |
| Image Device | 1/3.2 “ Progessive Scan CMOS |
| Minimum Scene Illumination | Color: 0.1 lux at F2.0 (30 IRE, 2400°K) |
| Operating Humidity | 10% ~ 85% RH |
| Operating Temperature | -10°C ~ 50°C (14°F ~ 122°F) |
| Power Consumption | 2.91 W |
| Privacy Zone | 4 configurable regions |
| Protocols | TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour |
| Angle of View | Horizontal - 180° (overview area), 109.8° (high detail area), Pan: ±90°; Tilt: 0°- 90° |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Flickerless | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
