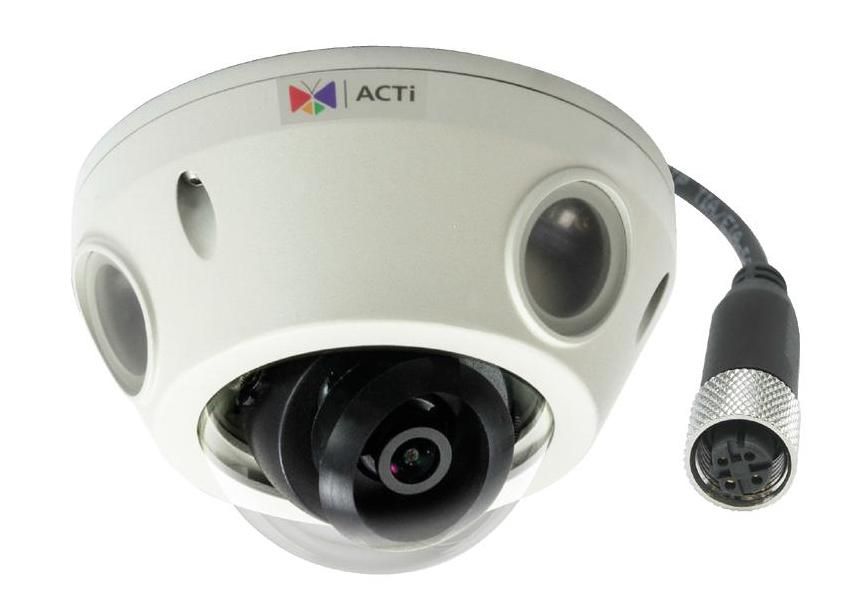

ACTi E933M 2 Megapixel Day/Night Outdoor Mini Dome Camera, M12, 2.55mm Lens
SKU
E933M
Model No
E933M
$202.50
Product Highlights
- 2 Megapixel with 1080p
- Day & Night with Super Low Light Sensitivity and Adaptive IR LED
- Fixed Lens with f2.55 mm / F2.2
- Extreme WDR (145 dB)
- 60 fps at 1920 x 1080
Speak to an expert
The E933M from ACTi is a 2MP outdoor mini dome camera designed for both day and night monitoring. Its advanced features include adaptive infrared technology for excellent low light performance, extreme wide dynamic range for improved image quality in high-contrast environments, and robust weatherproofing to withstand harsh conditions. With built-in analytics and a compact design, the E933M ensures reliable and versatile surveillance.
Features
- Resolution: 2 Megapixel providing clear 1080p video quality for detailed monitoring.
- Day & Night Capability: Equipped with super low light sensitivity and adaptive IR LED ensures reliable performance in various lighting conditions.
- Lens: Fixed lens with f2.55 mm / F2.2 allowing for a focused field of view.
- Extreme WDR: Offers wide dynamic range (145 dB) to effectively capture details in challenging lighting scenarios.
- High Frame Rate: Records at 60 fps at 1920 x 1080 for smooth motion capture.
- Super Wide Angle: Enhances coverage area, reducing the number of cameras needed.
- Durability: Weatherproof (IP68), vandal proof (IK10), and vibration proof (EN50155, M12 connector) for versatile installation.
- Analytics: Built-in analytics for intelligent monitoring, improving security response time.
ACTi E933M Camera Features
Detailed Camera Specifications
| Model | ACTi E933M |
| Image Sensor | 2 Megapixel |
| Max Resolution | 1080p |
| Lens Type | Fixed, 2.55 mm / F2.2 |
| WDR | Extreme WDR, 145 dB |
| Frame Rate | 60 fps at 1920 x 1080 |
| Viewing Angle | Super Wide Angle |
| Protection Rating | IP68, IK10, EN50155 |
| Analytics | Built-in |
SKU  | E933M |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Day/Night, Digital Noise Reduction, Flickerless, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | ACTi |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 0~60 Feet |
| Resolution | 2 Megapixel |
| Lens Type | Fixed |
| Lens Size | 2.55mm |
| Mount Type | Ceiling, Wall |
| Compression Method | M-JPEG |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | PoE |
| Dimensions (W x H) | 115 mm x 70 mm (4.5" x 2.8") |
| Electronic Shutter | 1/5 - 1/32,000 sec (manual mode); 1/5 - 1/32,000 sec (auto mode) |
| Image Device | 1/2.8 " Progressive Scan CMOS |
| Image Pixels-Effective | 1944(H) x 1224 (V) (2.38 MP) |
| IR LEDs | 3 |
| IR Wavelength | 850 nm |
| Minimum Scene Illumination | Color: 0.1 lux at F2.2 (30 IRE, 2400°K); B/W: 0 lux (IR LED on) |
| Operating Humidity | 10% ~ 85% RH |
| Operating Temperature | -20°C ~ 50°C (-4°F ~ 122°F) |
| Power Consumption | PoE Class 2 (IEEE802.3af) / 6.49 W |
| Privacy Zone | 4 configurable regions |
| Protocols | TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv4, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour |
| S/N Ratio | 56 dB |
| Weatherproof | IP68 |
| Digital Noise Reduction | 2D+3D |
| Angle of View | 112.7° |
| Automatic White Balance | Automatic, hold and manual |
| IR Distance | 15m/49.21ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Flickerless | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
