ACTi E929 3 Megapixel Outdoor Network Mini Fisheye Dome Camera, 1.19mm Lens
SKU
E929
Model No
E929
$553.50
Product Highlights
- 3 Megapixel with 1080p
- Day & Night with Adaptive IR LED
- Fixed Lens with f1.19 mm / F2.0
- Superior WDR (110 dB)
- 20 fps at 2048 x 1536
Speak to an expert

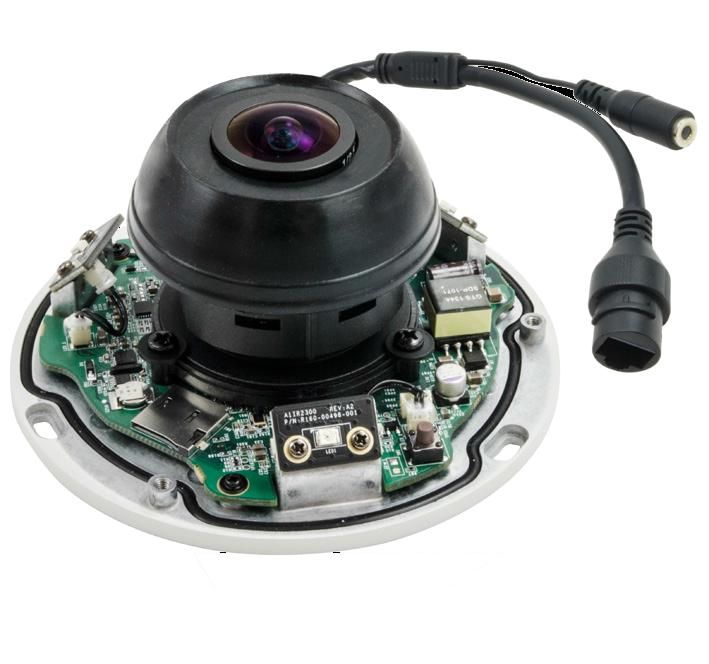

The E929 from ACTi is a 3 megapixel outdoor PoE network mini fisheye dome camera designed for superior surveillance performance in challenging environments. It offers exceptional image clarity and versatility, making it ideal for both day and night usage.
ACTi E929 Camera Features
- 3 Megapixel with 1080p: Delivers high-resolution images for clear and detailed monitoring.
- Day & Night with Adaptive IR LED: Ensures visibility in low-light conditions, enhanced by adaptable infrared technology.
- Fixed Lens with f1.19 mm / F2.0: Provides a wider view, suitable for capturing expansive areas.
- Superior WDR (110 dB): Effectively manages lighting contrast, ensuring clear images in challenging lighting scenarios.
- 20 fps at 2048 x 1536: Smooth video recording at high resolution for effective surveillance.
- 180/360° Fisheye View: Offers panoramic coverage, reducing the number of cameras required for large spaces.
- Weatherproof (IP68), Vandal Proof (IK10) and Vibration Proof (EN50155): Built to withstand harsh conditions, making it reliable for outdoor use.
ACTi E929 Detailed Camera Specifications
| Camera Resolution | 3 Megapixel |
| Lens Type | Fixed Lens, f1.19 mm / F2.0 |
| Night Vision | Adaptive IR LED |
| Wide Dynamic Range | 110 dB |
| Frame Rate | 20 fps at 2048 x 1536 |
| View Angle | 180/360° Fisheye |
| Weather Resistance | IP68 |
| Vandal Resistance | IK10 |
| Vibration Resistance | EN50155 |
SKU  | E929 |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Day/Night, Digital Noise Reduction, Flickerless, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | ACTi |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 0~60 Feet |
| Resolution | 3 Megapixel |
| Lens Type | Fixed |
| Lens Size | 1.19mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | PoE |
| Dimensions (W x H) | 115 mm x 70 mm (4.5" x 2.8") |
| Electronic Shutter | 1/5 ~ 1/2,000 sec (manual mode); 1/5 ~ 1/10,000 sec (auto mode) |
| Image Device | 1/3.2" Progressive Scan CMOS |
| Image Pixels-Effective | 2048 (H) x 1536 (V) (3.15 MP) |
| IR LEDs | 3 IR LED |
| IR Wavelength | 850 nm |
| Minimum Scene Illumination | Color: 0.1 lux at F2.0 (30 IRE, 2400°K); B/W: 0 lux at F2.0 |
| Operating Humidity | 10% ~ 85% RH |
| Operating Temperature | -20°C ~ 50°C (-4°F ~ 122°F) |
| Power Consumption | PoE Class 2 (IEEE802.3af) / 4.8 W |
| Privacy Zone | 4 configurable regions |
| Protocols | TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv4, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour |
| S/N Ratio | 52 dB |
| Weatherproof | IP68 |
| Digital Noise Reduction | 2D+3D |
| Angle of View | 189° (overview area), 115.3° (high detail area) |
| Motion Detection Tracking | 3 regions |
| Automatic White Balance | Automatic, Hold and Manual |
| IR Distance | 15m/49.21ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Flickerless | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
