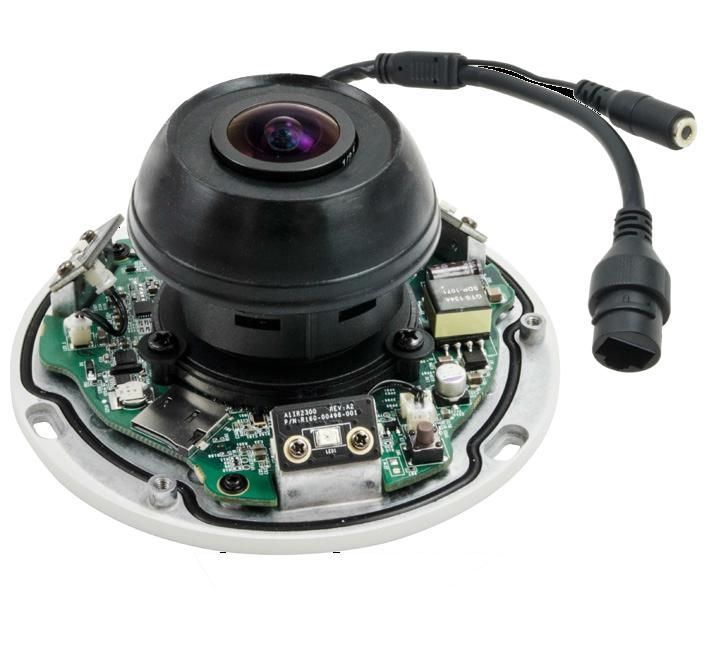

ACTi E925 5 Megapixel Outdoor IR Network Mini Fisheye Dome Camera, 1.19mm Lens
SKU
E925
Model No
E925
$484.65
Product Highlights
- 5 Megapixel with 1080p
- Day & Night with Adaptive IR LED
- Fixed Lens with f1.19 mm / F2.0
- Basic WDR (74 dB)
- 15 fps at 2592 x 1944
Speak to an expert
The ACTi E925 is a top-of-the-line outdoor camera featuring a 5 megapixel resolution and an innovative fisheye lens that provides both 180 and 360-degree views. Built with adaptive IR LEDs, it captures clear images up to 15 meters, even in low-light conditions. Its sturdy vandal-resistant and vibration-proof housing ensures durability in various environments, making it perfect for surveillance needs.
ACTi E925 Camera Features
- 5 Megapixel Resolution: Achieves high-definition clarity with 1080p outputs, ensuring sharp and detailed images for better analysis.
- Day & Night Functionality: Equipped with adaptive IR LEDs for enhanced visibility in low light, making it ideal for 24/7 monitoring.
- Fixed Lens: The f1.19 mm / F2.0 lens allows for an expansive viewing angle, effectively covering more area with fewer cameras.
- Basic WDR (74 dB): Wide Dynamic Range features minimize glare and enhance details in high-contrast scenarios, improving image quality.
- High Frame Rate: Supports 15 fps at 2592 x 1944 resolution, delivering smoother video playback for better surveillance insights.
- Fisheye View: Offers 180/360° viewing to eliminate blind spots and provide comprehensive coverage in any setting.
- Durable Design: Rated IP68 for weather resistance and IK10 for impact protection, ensuring reliable performance in harsh conditions.
ACTi E925 Detailed Specifications
| Camera Type: | Outdoor IR Network Mini Fisheye Dome Camera |
| Megapixel Count: | 5 Megapixels |
| Lens: | 1.19mm Fixed Lens |
| IR LEDs: | 3 Adaptive IR LEDs, 15m range |
| Weatherproof Rating: | IP68 |
| Vandal Resistance: | IK10 |
| Vibration Resistance: | EN50155 |
| Max Resolution: | 2592 x 1944 |
| Frame Rate: | 15 fps |
| Wide Dynamic Range: | 74 dB |
SKU  | E925 |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Day/Night, Digital Noise Reduction, Flickerless, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | ACTi |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 0~60 Feet |
| Resolution | 5 Megapixel |
| Lens Type | Fixed |
| Lens Size | 1.19mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | PoE |
| Dimensions (W x H) | 115 mm x 70 mm (4.5" x 2.8") |
| Electronic Shutter | 1/5 ~ 1/2,000 sec (manual mode); 1/5 ~ 1/10,000 sec (auto mode) |
| Image Device | 1/3.2" Progressive Scan CMOS |
| Image Pixels-Effective | 2592 (H) x 1944 (V) (5.04 MP) |
| IR LEDs | 3 IR LED |
| IR Wavelength | 850 nm |
| Minimum Scene Illumination | Color: 0.1 lux at F2.0 (30 IRE, 2400°K); B/W: 0 lux at F2.0 |
| Operating Humidity | 10% ~ 85% RH |
| Operating Temperature | -20°C ~ 50°C (-4°F ~ 122°F) |
| Power Consumption | PoE Class 2 (IEEE802.3af) / 5.04 W |
| Privacy Zone | 4 configurable regions |
| Protocols | TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv4, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour |
| S/N Ratio | 52 dB |
| Weatherproof | IP68 |
| Digital Noise Reduction | 2D+3D |
| Angle of View | 189° (overview area), 115.3° (high detail area) |
| Motion Detection Tracking | 3 regions |
| Automatic White Balance | Automatic, Hold and Manual |
| IR Distance | 15m/49.21ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Flickerless | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
There are no related videos.
3
Write a review
Share your thoughts with other customers
Top customer reviews
- Works after 3 hours of set up 0 people found this helpfulI required an mjpeg feed without using activeX. This camera most likely works very well if all you want is a solution that requires activeX. I needed a formatted URL that would provide an MJPEG feed. After emailing customer service, i got a quick phone response and an email explaining what i needed to do. Unfortunately, the information in the email was incorrect. The accompanying URL command doc did help, however. I had looked for such a doc on ACTi's website, but their documentation center was difficult to search/use. All in all, the camera is now working and looks great. The camera hardware itself is beautiful. Well designed, with several small details that make installation easier (screws that dont fall out when upside down, a case that is attached to the base via a cable, etc).
