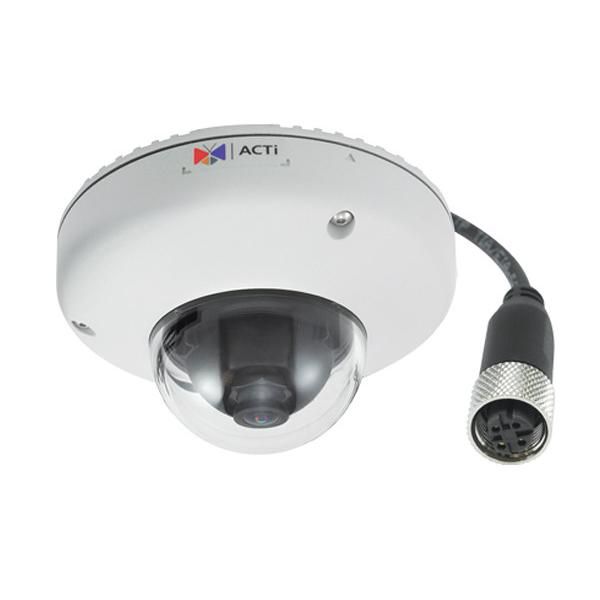

ACTi E922M 10 Megapixel Outdoor Mini Dome Camera, M12 Connector, 3.6mm Lens
SKU
E922M
Model No
E922M
$520.00
Product Highlights
- 10 Megapixel with 4K/1080p
- Fixed Lens with f3.6 mm / F1.8
- Basic WDR (70 dB)
- 30 fps at 1920x1080
- Super Wide Angle
Speak to an expert
The ACTi E922M is a state-of-the-art 10 Megapixel outdoor mini dome camera designed for enhanced surveillance. Equipped with a M12 connector and a fixed 3.6mm lens, this camera offers exceptional image quality, robust weather resistance, and a compact form factor ideal for any outdoor setting.
ACTi E922M Camera Features
- 10 Megapixel Resolution: Provides stunningly clear video quality, ensuring that every detail is captured for effective monitoring.
- Fixed Lens (3.6mm, F1.8): Delivers a wide field of view, perfect for covering larger areas without distortion.
- Basic WDR (70 dB): Enhances visibility in challenging lighting conditions, allowing for clear images even in high-contrast environments.
- 30 fps at 1920x1080: Ensures smooth video playback, making it easier to track movement and identify crucial details.
- Super Wide Angle: Increases the area covered, helping to minimize the number of cameras required for comprehensive surveillance.
- Weatherproof (IP68), Vandal Proof (IK10): Designed to withstand harsh outdoor conditions and tampering, ensuring reliable operation in all environments.
- Vibration Proof (EN50155, M12 Connector): Provides durability and reliability in various installation scenarios, enhancing the camera’s longevity.
Detailed Specifications for ACTi E922M
| Resolution | 10 Megapixel (4K/1080p) |
| Lens | Fixed 3.6mm, F1.8 |
| WDR | Basic WDR (70 dB) |
| Frame Rate | 30 fps at 1920x1080 |
| Field of View | Super Wide Angle |
| Weatherproof Rating | IP68 |
| Vandal Proof Rating | IK10 |
| Vibration Proof Rating | EN50155, M12 Connector |
SKU  | E922M |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Digital Noise Reduction, Flickerless, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range, 4K Resolution |
| Manufacturer | ACTi |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 10 Megapixel |
| Lens Type | Fixed |
| Lens Size | 3.6mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | PoE |
| Dimensions (W x H) | 110 mm x 60 mm (4.3" x 2.4") |
| Electronic Shutter | 1/5 ~ 1/2,000 sec (manual mode); 1/5 ~ 1/10,000 sec (auto mode) |
| Image Device | 1/2.3'' Progressive Scan CMOS |
| Image Pixels-Effective | 3856 (H) x 2764 (V) (10.66 MP) |
| Minimum Scene Illumination | Color: 0.1 lux at F1.8 (30 IRE, 2400°K) |
| Operating Humidity | 10% ~ 85% RH |
| Operating Temperature | -20°C ~ 50°C (-4°F ~ 122°F) |
| Power Consumption | 3.84W |
| Privacy Zone | 4 configurable regions |
| Protocols | TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour |
| S/N Ratio | 52 Db |
| Weatherproof | IP68 |
| Angle of View | 129.56° (overview area), 79.0° (high detail area) |
| Motion Detection Tracking | 3 regions |
| Automatic White Balance | automatic, hold, and manual |
| Audio | Yes |
| Auto Gain Control | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Flickerless | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
