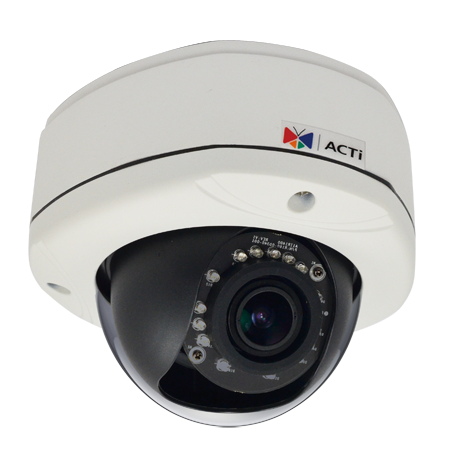

ACTi E83A 5MP Outdoor Dome with D/N, Adaptive IR, Basic WDR, Vari-focal lens
SKU
E83A
Model No
E83A
$550.80
Product Highlights
- 5 Megapixel with 1080p
- Day and night with Adaptive IR LED
- Vari-focal Lens with f2.8~12mm / F1.4
- Basic WDR (74 dB)
- 30 fps at 1920 x 1080
Speak to an expert
The E83 5MP IR Day/Night Outdoor IP Dome Camera from ACTi is designed to deliver high-quality surveillance in various lighting conditions. With impressive features such as a vari-focal lens, day/night functionality, and advanced weatherproofing, this camera is perfect for monitoring high-risk areas while ensuring clear video capture up to 5MP resolution. Its robust design meets IK10 and IP66 ratings, while the Adaptive IR and Basic WDR enhance image quality in challenging environments.
ACTi E83A Camera Features
- 5 Megapixel Resolution: Provides exceptional image clarity, making it ideal for detailed surveillance needs.
- Day & Night Functionality: Adaptive IR LEDs allow for high-quality recordings in low light conditions down to 0.1 lux.
- Vari-focal Lens (f2.8~12mm): Offers flexibility in field of view and focus, enabling customized surveillance setups.
- Basic WDR (74 dB): Compensates for bright and dark areas in the scene, improving visibility in high-contrast environments.
- 30 fps at 1920 x 1080: Ensures smooth video playback and reduced motion blur.
- Weatherproof and Vandal Proof (IP67 & IK10): Designed for resilience against harsh weather and physical damage, perfect for outdoor installations.
ACTi E83A Detailed Camera Specifications
| Camera Type | IP Dome Camera |
| Resolution | 5MP (up to 2592 x 1944 at 15 fps) |
| Video Compression | H.264 HP, MJPEG |
| Day/Night Functionality | Mechanical IR cut filter |
| Low Light Sensitivity | Color: 0.1 lux, Night mode: Up to 49.2’ with 15 IR LEDs |
| Audio Support | 2-way audio communication |
| Operating Conditions | -22°F to 140°F (-30°C to 60°C) |
| Weather Ratings | IP66 (Weatherproof) / IK10 (Vandal-proof) |
SKU  | E83A |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Digital Noise Reduction, Flickerless, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant |
| Manufacturer | ACTi |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 61~100 Feet |
| Resolution | 5 Megapixel |
| Lens Type | Varifocal |
| Lens Size | 2.8-12mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | PoE |
| Dimensions (W x H) | 150mm x 116mm (5.9" x 4.6") |
| Electronic Shutter | 1/5 ~ 1/2,000 sec (manual mode); 1/5 ~ 1/10,000 sec (auto mode) |
| IR LEDs | 15 |
| IR Wavelength | 850nm |
| Minimum Scene Illumination | Color: 0.1 lux at F1.4 (30 IRE, 2400°K); B/W: 0 lux (IR LED on) |
| Operating Humidity | 10% ~ 85% RH |
| Operating Temperature | -40°C ~ 50°C (-40°F ~ 122°F) |
| Power Consumption | 6.49 W |
| Privacy Zone | 4 configurable regions |
| Protocols | TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour |
| Video Output | RJ-45 |
| Weatherproof | IP66 |
| Angle of View | Horizontal - 69.2° - 28.2° |
| Automatic White Balance | automatic |
| IR Distance | 30 m (0 lux, 30 IRE, Gain 255, Auto shutter mode) |
| Audio | Yes |
| Auto Gain Control | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Flickerless | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| ONVIF | Yes |
