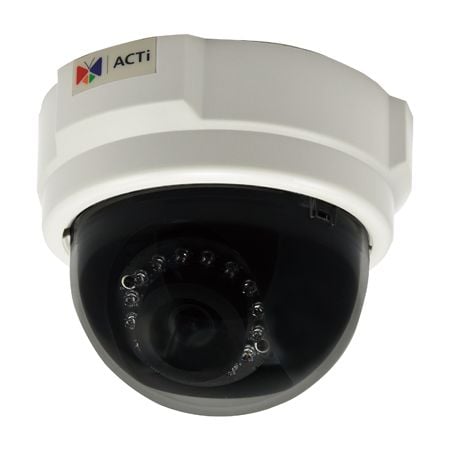

ACTi E54 5 Megapixel IR Indoor Day/Night Dome Camera, 3.6mm Lens
Model No
E54
$722.25
Product Highlights
- 5 Megapixel with 1080p
- Day & Night with IR LED
- Fixed Lens with f3.6mm/ F1.8
- Basic WDR (69 dB)
- 30 fps at 1920 x 1080
Speak to an expert
Discover the ACTi E54 5 Megapixel IR Indoor Day/Night Dome Camera, designed to provide high-quality surveillance with exceptional clarity and performance. With its advanced features such as Day/Night functionality and IR capabilities, this camera ensures reliable monitoring in varying light conditions, making it an ideal choice for indoor security applications.
ACTi E54 Camera Features
- 5 Megapixel Resolution: Captures ultra-clear images with 1080p full HD, allowing for detailed visual surveillance.
- Day & Night Functionality: Equipped with IR LED technology, it delivers optimal performance in both day and night conditions for round-the-clock surveillance.
- Fixed 3.6mm Lens: The fixed lens with f3.6mm/F1.8 aperture offers a wide field of view to cover larger areas effectively.
- Basic WDR (69 dB): Basic Wide Dynamic Range support improves image quality in scenes with varying light levels, ensuring clear visibility.
- 30 fps at 1920 x 1080: Smooth video playback at 30 frames per second enhances your ability to monitor live activities without lag.
ACTi E54 Detailed Specifications
| Model | ACTi E54 |
| Resolution | 5 Megapixel (1080p) |
| Lens Type | Fixed Lens (3.6mm, F1.8) |
| IR Capability | Yes |
| Dynamic Range | Basic WDR (69 dB) |
| Frame Rate | 30 fps at 1920 x 1080 |
SKU  | E54 |
|---|---|
| Features | Auto Gain Control, Day/Night, Digital Noise Reduction, Wide Dynamic Range |
| Manufacturer | ACTi |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 61~100 Feet |
| Resolution | 5 Megapixel |
| Lens Type | Fixed |
| Lens Size | 3.6mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG |
| Durability | Indoor |
| Voltage | PoE |
| Dimensions (W x H) | 5.12” x 3.90“ |
| Electronic Shutter | 1/5 ~ 1/2,000 sec (manual mode); 1/5 ~ 1/10,000 sec (auto mode) |
| Image Device | 1/3.2" Progressive Scan CMOS |
| IR LEDs | Adaptive IR LED (IR Exposure Compensation) x 10 (850nm) |
| IR Wavelength | 850 nm |
| Minimum Scene Illumination | Color: 0.1 lux at F1.8 (30 IRE, 2400°K); B/W: 0 lux (IR LED on) |
| Operating Humidity | 10% ~ 85% RH |
| Operating Temperature | -10 °C ~ 50 °C (14 °F ~ 122 °F) |
| Power Consumption | 6.49 W |
| Privacy Zone | 4 configurable regions |
| Protocols | TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS,DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour |
| Video Output | RJ-45 |
| Angle of View | Horizontal Viewing Angle - 72.0° |
| Automatic White Balance | automatic |
| IR Distance | 30 m (0 lux, 30 IRE, Gain 255, Auto shutter mode) |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Wide Dynamic Range | Yes |
