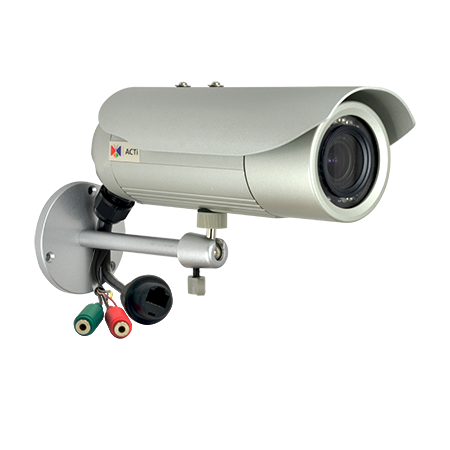

ACTi E47 1.3MP Bullet with D/N, Adaptive IR, Basic WDR, Vari-focal lens
Model No
E47
$707.40
Product Highlights
- 1.3 Megapixel with 720p
- Vari-focal Lens with f2.8-12mm/F1.4
- Basic WDR (88 dB)
- 60 fps at 1280 x 720
- Wide Angle (83°-31.1°)
Speak to an expert
The E47 from ACTi is a high-performance 1.3MP bullet camera designed for versatile surveillance with its Day & Night capability, Adaptive IR, Basic WDR, and an adjustable vari-focal lens. This camera ensures clear images in various lighting conditions and is built to withstand harsh environments.
ACTi E47 Camera Features
- 1.3 Megapixel Resolution: Provides high-definition 720p video quality for clear and detailed images.
- Day & Night Functionality: Superior low light sensitivity with Adaptive IR LED ensures reliable performance in low light conditions.
- Vari-focal Lens: Adjustable f2.8-12mm/F1.4 lens allows for flexible field of view adjustments, catering to different surveillance needs.
- Basic WDR: With 88 dB, it efficiently manages light contrast to provide clear images in challenging lighting environments.
- High Frame Rate: Supports 60 fps at 1280 x 720 for smooth video reproduction, helping to capture fast-moving subjects without blur.
- Wide Angle View: Offers a range of 83°-31.1° for enhanced coverage, allowing the camera to monitor larger areas.
- Durable Build: Weatherproof (IP68) and vandal-proof (IK10) metal casing ensures longevity and resilience in outdoor and high-risk environments.
Detailed Camera Specifications for ACTi E47
| Camera Type | 1.3MP Bullet Camera |
| Resolution | 720p |
| Lens Type | Vari-focal 2.8-12mm/F1.4 |
| WDR | Basic WDR (88 dB) |
| Frame Rate | 60 fps at 1280 x 720 |
| Field of View | 83°-31.1° |
| Weatherproof Rating | IP68 |
| Vandal Proof Rating | IK10 |
SKU  | E47 |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Day/Night, Digital Noise Reduction, Flickerless, Motion Detection Tracking, ONVIF, Privacy Masking, Wide Dynamic Range |
| Manufacturer | ACTi |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 61~100 Feet |
| Resolution | 1.3 Megapixel |
| Lens Type | Varifocal |
| Lens Size | 2.8-12mm |
| Mount Type | Ceiling, Corner, Pole, Wall |
| Compression Method | H.264, M-JPEG |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | PoE |
| Dimensions (W x H) | 77 mm x 218 mm (3.03" x 8.58") |
| Electronic Shutter | 1/5 ~ 1/2,000 sec (manual mode); 1/5 ~ 1/10,000 sec (auto mode) |
| Image Device | 1/3'' Progressive Scan CMOS |
| IR LEDs | 15 |
| IR Wavelength | 850 nm |
| Minimum Scene Illumination | Color: 0.1 lux at F1.4 (30 IRE, 2400°K); B/W: 0 lux (IR LED on) |
| Operating Humidity | 10% ~ 85% RH |
| Operating Temperature | -40 °C ~ 50 °C (-40 °F ~ 122 °F) |
| Power Consumption | 5.28 W (IR on) |
| Privacy Zone | 4 configurable regions |
| Protocols | TCP, UDP, HTTP, HTTPs, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour |
| Weatherproof | IP68 |
| Angle of View | 83° ~ 31.1° |
| Motion Detection Tracking | 3 regions |
| Automatic White Balance | automatic, hold, and manual |
| IR Distance | 30m |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Flickerless | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
