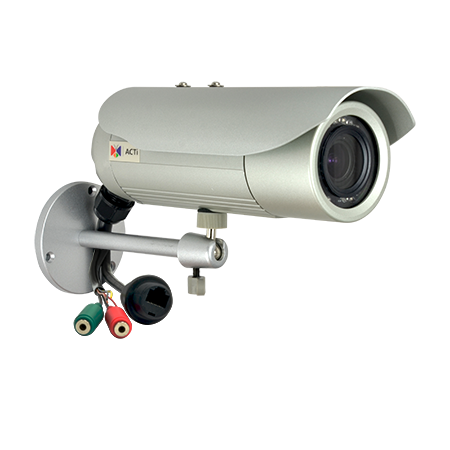

ACTi E43B 5 Megapixel IR Outdoor Day/Night Bullet Camera, 2.8-12mm Lens
SKU
E43B
Model No
E43B
$1,053.00
Product Highlights
- 5 Megapixel with 1080p
- Day & Night with Adaptive IR LED
- Vari-focal Lens with f2.8-12mm/ F1.4
- Basic WDR (74 dB)
- 30 fps at 1920 x 1080
Speak to an expert
The ACTi E43B is a high-performance 5 Megapixel IR Outdoor Day/Night Bullet Camera designed for superior surveillance capabilities. With its advanced features such as Adaptive IR, Basic WDR, and a Vari-focal lens, this camera ensures highly detailed imagery under various lighting conditions, making it an ideal choice for any outdoor security application.
ACTi E43B Bullet Camera Features
- 5 Megapixel Resolution: Experience crystal-clear images with 5MP resolution, ensuring every detail is captured for higher security assurance.
- Day & Night Functionality: Equipped with Adaptive IR LEDs, the camera provides exceptional image quality in both daylight and low-light environments.
- Vari-focal Lens: The 2.8-12mm lens allows for flexible field of view adjustments, making it adaptable to various surveillance needs.
- Basic WDR: With a wide dynamic range of 74 dB, the camera effectively captures details in scenes with contrasting light, reducing glare and shadows.
- High Frame Rate: Record at 30 fps in 1920 x 1080 resolution, ensuring smooth motion capture for active surveillance.
- Durable Design: The camera features weatherproof (IP68) and vandal-proof metal casing (IK10), providing reliable outdoor functionality in harsh conditions.
ACTi E43B Bullet Camera Specifications
| Camera Type | 5 Megapixel Bullet Camera |
| Resolution | 1080p (1920 x 1080) |
| Lens Type | Vari-focal Lens (2.8-12mm, F1.4) |
| Image Features | Day & Night with Adaptive IR, Basic WDR (74 dB) |
| Frame Rate | 30 fps |
| Weather Resistance | IP68 |
| Vandal Resistance | IK10 |
SKU  | E43B |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Day/Night, Digital Noise Reduction, Flickerless, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | ACTi |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 61~100 Feet |
| Resolution | 5 Megapixel |
| Lens Type | Varifocal |
| Lens Size | 2.8-12mm |
| Mount Type | Ceiling, Corner, Pole, Wall |
| Compression Method | H.264, M-JPEG |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | PoE |
| Dimensions (W x H) | 77 mm x 218 mm (3.03" x 8.58") |
| Electronic Shutter | 1/5 ~ 1/2,000 sec (manual mode); 1/5 ~ 1/10,000 sec (auto mode) |
| Image Device | 1/3.2" Progressive Scan CMOS |
| IR LEDs | 15 |
| IR Wavelength | 850 nm |
| Minimum Scene Illumination | Color: 0.1 lux at F1.4 (30 IRE, 2400°K); B/W: 0 lux (IR LED on) |
| Operating Humidity | 10% ~ 85% RH |
| Operating Temperature | -40 °C ~ 50 °C (-40 °F ~ 122 °F) |
| Power Consumption | 5.76 W (IR on) |
| Privacy Zone | 4 configurable regions |
| Protocols | TCP, UDP, HTTP, HTTPs, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour |
| Weatherproof | IP68 |
| Angle of View | 69.2° ~ 28.2° |
| Motion Detection Tracking | 3 regions |
| Automatic White Balance | automatic, hold, and manual |
| IR Distance | 30m |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Flickerless | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
