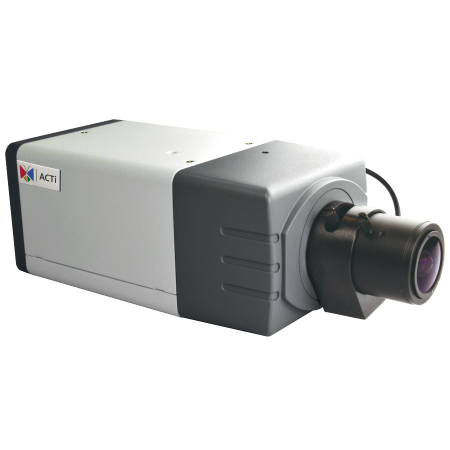

ACTi E24 3 Megapixel Day/Night IP Box Camera, 2.8-12mm Lens
Model No
E24
$430.65
Product Highlights
- 3 Megapixel with 1080p
- Day & Night
- Vari-focal Lens with f2.8-12mm / F1.4, DC Iris
- Superior WDR (107 dB)
- 30 fps at 1920 x 1080
Speak to an expert
The E24 from ACTi is a high-performance 3MP Box Camera designed for round-the-clock surveillance, featuring exceptional Day/Night capabilities, a versatile vari-focal lens, and advanced image processing technologies. With its robust specifications, including H.264 compression for efficient bandwidth usage, it offers crystal-clear video quality at 1080p/30fps, making it an ideal choice for security needs.
ACTi E24 Camera Features
- 3 Megapixel with 1080p: Provides high-resolution images ensuring every detail is captured for effective monitoring.
- Day & Night: Automatically switches between color and monochrome modes, ensuring clear visibility regardless of lighting conditions.
- Vari-focal Lens with f2.8-12mm / F1.4, DC Iris: Enables flexible zoom and focus capabilities to adapt to different surveillance scenarios.
- Superior WDR (107 dB): Enhances image quality in high-contrast environments, allowing better visibility in challenging light.
- 30 fps at 1920 x 1080: Guarantees smooth video playback and enhances real-time monitoring effectiveness.
ACTi E24 Detailed Camera Specifications
| Model | ACTi E24 |
| Resolution | 3 Megapixel |
| Max Frame Rate | 30 fps |
| Lens Type | Vari-focal 2.8-12mm |
| Day/Night Capability | Yes |
| WDR | Superior WDR 107 dB |
| Compression | H.264 |
| Power over Ethernet | Yes (PoE) |
SKU  | E24 |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Digital Noise Reduction, Flickerless, Motion Detection Tracking, ONVIF, Privacy Masking, Wide Dynamic Range |
| Manufacturer | ACTi |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 3 Megapixel |
| Lens Type | Varifocal |
| Lens Size | 2.8-12mm |
| Mount Type | Bracket Required |
| Compression Method | H.264, M-JPEG |
| Durability | Indoor, Weather Resistant |
| Voltage | PoE |
| Dimensions (W x H) | 67.05mm x 65.02mm x 169.89mm (2.6" x 2.6" x 6.7") |
| Electronic Shutter | 1/5 ~ 1/2,000 sec (manual mode); 1/5 ~ 1/10,000 sec (auto mode) |
| Image Device | 1/3" Progressive Scan CMOS |
| Minimum Scene Illumination | Color: 0.1 lux at F1.4 (30 IRE, 2400°K); B/W: 0.05 lux at F1.4 (30 IRE, 2400°K) |
| Operating Humidity | 10% ~ 85% RH |
| Operating Temperature | -10°C ~ 50°C (14°F ~ 122°F) |
| Power Consumption | 3.645W |
| Privacy Zone | 4 configurable regions |
| Protocols | TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS,DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour |
| Weatherproof | IP66 |
| Angle of View | Horizontal - 78.1° - 26.8° |
| Auto Gain Control | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Flickerless | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
There are no related videos.
Write Your Own Review
Manuals & Specifications
E24-Specsheet E24-Manual E24-Quick-Installation-Guide
