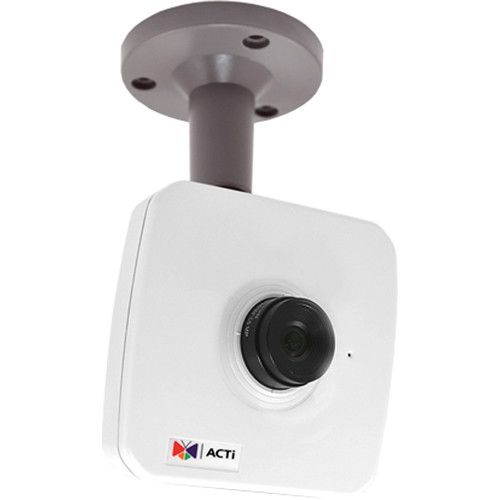

ACTi E12A 3 Megapixel Indoor Network Cube Camera, 2.8mm Lens
SKU
E12A
Model No
E12A
$203.85
Product Highlights
- 3 Megapixel with 1080p
- Fixed Lens with f2.8mm / F2.0
- Basic WDR (74 dB)
- 30 fps at 1920 x 1080
- Wide Angle
Speak to an expert
The E12A from ACTi is a 3 megapixel cube camera designed for indoor surveillance, featuring a 2.8mm lens and basic WDR capabilities. This camera utilizes a progressive scan CMOS image sensor that delivers high-quality imagery at resolutions up to 2048 x 1536 pixels. With built-in motion detection and privacy masking functions, the E12A ensures reliable monitoring while maintaining user privacy.
ACTi E12A Camera Features
- 3 Megapixel Resolution: Captures stunning detail with the ability to deliver high-definition images up to 1080p for enhanced visibility and clarity.
- Fixed Lens with f2.8mm / F2.0: Offers a wide angle of view suitable for indoor environments, ensuring comprehensive coverage of the monitored area.
- Basic WDR (74 dB): Improves image quality in challenging lighting conditions by balancing bright and dark areas of the image.
- 30 fps at 1920 x 1080: Provides smooth video playback and fluid motion capture, ideal for real-time monitoring of indoor spaces.
- Motion Detection: Triggers alarms and notifications when movement is detected, enhancing security and alerting users to potential threats.
- Privacy Masking: Allows configuration of 4 regions to block specific areas of the video feed, upholding privacy in sensitive locations.
ACTi E12A Detailed Camera Specifications
| Camera Type | Indoor Network Cube Camera |
| Image Sensor | Progressive Scan CMOS |
| Maximum Resolution | 2048 x 1536 pixels |
| Lens Type | Fixed Lens, 2.8mm / F2.0 |
| WDR | Basic WDR, 74 dB |
| Frame Rate | 30 fps at 1920 x 1080 |
| Fields of View | Wide Angle |
| Motion Detection | Yes |
| Privacy Masking | 4 Configurable Regions |
SKU  | E12A |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Digital Noise Reduction, Flickerless, Motion Detection Tracking, ONVIF, Privacy Masking, Wide Dynamic Range |
| Manufacturer | ACTi |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 3 Megapixel |
| Lens Type | Fixed |
| Lens Size | 2.8mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG |
| Durability | Indoor |
| Voltage | PoE |
| Dimensions (W x H) | 96mm x 96mm x 45mm (3.8" x 3.8" x 1.8") |
| Electronic Shutter | 1/5 ~ 1/2,000 sec (manual mode); 1/5 ~ 1/10,000 sec (auto mode) |
| Image Device | 1/3.2" Progressive Scan CMOS |
| Image Pixels-Effective | 2592 (H) x 1944 (V) (5.04 MP) |
| Minimum Scene Illumination | Color: 0.1 lux at F2.0 (30 IRE, 2400 °K) |
| Operating Humidity | 10% ~ 85% RH |
| Operating Temperature | -10°C ~ 45°C (14°F ~ 113°F) |
| Power Consumption | PoE Class 2 (IEEE802.3af) / 3.456 W |
| Privacy Zone | 4 configurable regions |
| Protocols | TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv4, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour |
| S/N Ratio | 52 dB |
| Angle of View | 92.6° |
| Motion Detection Tracking | 3 regions |
| Automatic White Balance | Automatic, Hold and Manual |
| Audio | Yes |
| Auto Gain Control | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Flickerless | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
