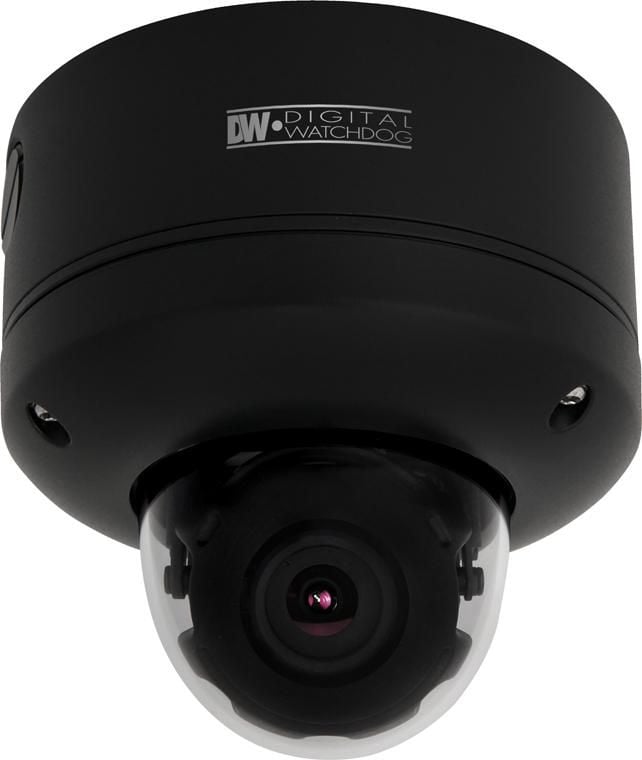

Digital Watchdog DWC-MV421DB 2.1MP Day/Night IP Vandal Dome

SKU
DWC-MV421DB
Model No
DWC-MV421DB
was $464.63 Special Price $398.86
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • 2.1 Megapixels (1080P, 30fps)
  • Triple Codecs (H.264, MJPEG, MPEG4) with Dual-Stream
  • 1/2.8" CMOS Sensor (7% Larger Than 1/3" CMOS Sensor)
  • 3.5-16mm Auto Focus Lens
  • 8X Digital Zoom, 4.5X Optical Zoom

The Digital Watchdog DWC-MV421DB is a state-of-the-art 2.1MP Day/Night IP Vandal Dome camera designed for robust surveillance needs. Equipped with triple codec technology, it ensures crisp 1080P video at 30 frames per second and comes packed with advanced features such as Electronic Day and Night, 3D-DNR, and Double Shutter WDR to deliver exceptional image quality regardless of lighting conditions. With easy installation through Power over Ethernet and Snapit Housing, this camera allows seamless remote access for monitoring from anywhere in the world.

Digital Watchdog DWC-MV421DB Camera Features

  • Resolution: 2.1 Megapixels (1080P, 30fps) - Captures sharp and clear video, ensuring every detail is visible.
  • Triple Codecs: H.264, MJPEG, MPEG4 with Dual-Stream - Offers flexibility in video compression formats for efficient storage and bandwidth management.
  • CMOS Sensor: 1/2.8" (7% Larger Than 1/3" CMOS Sensor) - Enhances light sensitivity for better performance in low light conditions.
  • Lens: 3.5-16mm Auto Focus - Provides versatility for various viewing angles and distances.
  • Zoom: 8X Digital Zoom, 4.5X Optical Zoom - Allows for detailed inspections from a distance without loss of quality.
  • Day/Night Functionality: Electronic Day and Night - Adapts to changing light conditions for continuous monitoring.
  • Power Supply: Power over Ethernet [PoE] & DC12V - Simplifies installation with less wiring required.
  • Audio: Two-Way Audio - Facilitates communication and enhances security measures.
  • Storage: Local SDHC Card Remote Backup - Ensures reliable backup of recorded footage.
  • Weather Resistance: IP68 Certified - Protects against dust and water, suitable for indoor and outdoor use.
  • Installation: Junction Box Built-in - Streamlines mounting and reduces installation complexity.
  • Management: Web Server Built-in - Enables easy configuration and access via a web browser.
  • Image Enhancement: Double Shutter WDR - Improves visibility in high-contrast lighting situations.
  • Noise Reduction: 3D-DNR - Reduces noise in low-light environments for clearer images.
  • Privacy Management: Programmable Privacy Zones (30) & Motion Detection - Provides customizable privacy settings and alerts for enhanced security.
  • Design: Black Housing - Suitable for discreet installations in various environments.
  • Compatibility: ONVIF Compliant - Ensures interoperability with other security systems and devices.

Detailed Specifications for Digital Watchdog DWC-MV421DB

FeatureDetails
ModelDWC-MV421DB
Resolution2.1 Megapixels (1080P)
Frame Rate30 frames per second
CodecH.264, MJPEG, MPEG4
Lens Type3.5-16mm Auto Focus
Zoom Capabilities8X Digital, 4.5X Optical
Sensor Type1/2.8" CMOS
Power InputPoE & DC12V
Audio CapabilityTwo-Way Audio
Backup StorageLocal SDHC Card
Ingress ProtectionIP68 Certified
WDR TechnologyDouble Shutter WDR
Noice Reduction Technology3D-DNR
Privacy Zones30 Programmable Zones
ComplianceONVIF Compliant
SKU  DWC-MV421DB
Features  Auto Gain Control, Back Light Compensation, Day/Night, Digital Noise Reduction, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range
Manufacturer  Digital Watchdog
NDAACompliant
Connection Type  Wired
Infrared Distance    Non Infrared
Resolution    2.1 Megapixel
Lens Type    Varifocal
Mount Type  Ceiling, Wall
Compression Method    H.264, MPEG-4, M-JPEG
Durability    Vandal Resistant, Weather Resistant
Voltage  12vDC, PoE
Automatic Gain Control (AGC)    0~20
Dimensions (W x H)  5.47 X 4.7 in
Electronic Shutter    Auto, Manual
Image Device    1/2.8” CMOS Sensor (7% Larger Than 1/3” CMOS Sensor
Image Pixels Total2016 (H) X 1108 (V)
Image Size1/2.8” CMOS
Minimum Scene Illumination  F1.6 (30IRE): 0.5 Lux [Color], F1.6 (30IRE): 0.01 Lux [B&W]
Operating Humidity    Less than 90% (Non-Condensing)
Operating Temperature    -10oC ~ 55oC (14oF ~ 131oF)
Power Consumption  7.2W, 600mA
Power RequirementsPoE, 12V DC
Privacy Zone    30
Protocols  TCP/IP, HTTP, DHCP, PPPoE, ICMP, ARP, RARP, RTSP, NTP, UDP, Multicast
Weatherproof    IP68
Digital Noise Reduction    3D-DNR: Off, Low, Middle, High
Mirror    Off, On
Rotation Angle360
Back Light Compensation  Off, On
Auto Gain Control    Yes
Day/Night    Yes
Digital Noise Reduction    Yes
Back Light Compensation    Yes
Motion Detection Tracking    Yes
Privacy Masking    Yes
Wide Dynamic Range    Yes
ONVIF  Yes
