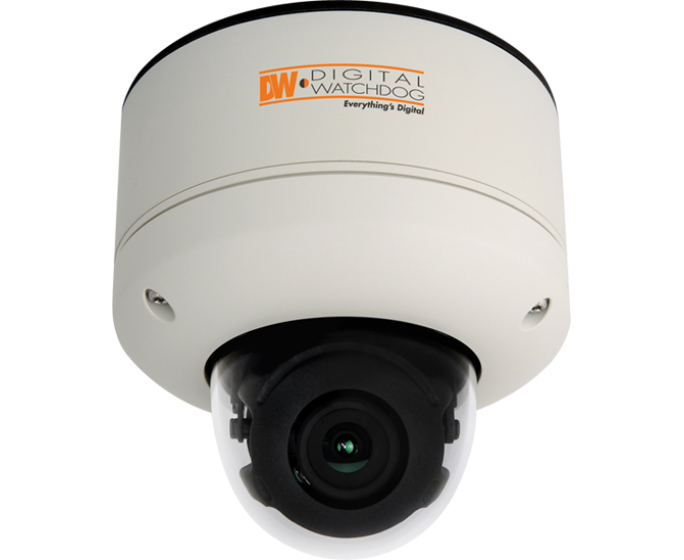

Digital Watchdog DWC-MV421D Triple Codec Network Camera

SKU
DWC-MV421D
Model No
DWC-MV421D
was $464.63 Special Price $398.71
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • ONVIF Compliant
  • 2.1 Megapixels (1080P, 30fps)
  • Triple Codecs (H.264, MJPEG, MPEG4) with Dual Stream
  • 1/2.8″ CMOS Sensor
  • 3.5~16mm Auto Focus Lens

The DWC-MV421D from Digital Watchdog is a triple codec network camera that provides 1080P megapixel resolution at 30 frames per second. The camera's advanced technologies like Electronic Day and Night, 3D-DNR, and Double Shutter WDR will deliver the best images in any type of environment. And Power over Ethernet combined with our Snapit Housing, branded for its quick and easy installation procedure, allows you to view and control your MEGAPIX camera from anywhere in the world in just a few minutes.

Digital Watchdog DWC-MV421D Camera Features

  • ONVIF Compliant: Ensures compatibility with a wide range of surveillance devices, making integration seamless and efficient.
  • 2.1 Megapixels (1080P, 30fps): Provides high-quality video with clear details for improved monitoring and security.
  • Triple Codecs (H.264, MJPEG, MPEG4) with Dual Stream: Offers flexibility in video compression formats and supports simultaneous streaming for various applications.
  • 1/2.8” CMOS Sensor: Delivers superior image quality, especially in low-light conditions, enhancing overall performance.
  • 3.5~16mm Auto Focus Lens: Provides adjustable focal lengths, ensuring optimal focus for enhancing subject detail.
  • 8X Digital Zoom, 4.5X Optical Zoom: Allows for close-ups without losing image quality, perfect for surveillance purposes.
  • Electronic Day and Night: Switches automatically for optimal performance in varying light conditions, ensuring clear imagery day and night.
  • Power over Ethernet [PoE] & DC12V: Simplifies installation by providing power through the Ethernet cable, reducing wiring complexities.
  • Two-Way Audio: Enables communication through the camera, enhancing security monitoring capabilities.
  • Local SDHC Card Remote Backup: Allows for convenient storage options and retrieval of recorded footage remotely.
  • E-mail Event Notifications: Keeps users informed about significant events, enhancing surveillance response time.
  • Web Server Built-in: Facilitates easy access and control of the camera via any web browser.
  • IP68 Certified: Ensures the camera is dust-tight and waterproof, suitable for various outdoor conditions.
  • Junction Box Built-in: Provides additional installation convenience and simplifies wiring.
  • Double Shutter WDR (Wide Dynamic Range): Ensures quality images in high-contrast lighting conditions by balancing the light levels.
  • 3D-DNR (3D Digital Noise Reduction): Enhances image clarity by reducing noise, especially in dark scenes.
  • Programmable Privacy Zones (30) & Motion Detection: Offers customizable privacy settings and alerts to enhance security monitoring.

Digital Watchdog DWC-MV421D Detailed Specifications

ModelDWC-MV421D
Resolution2.1 Megapixels (1080P)
Frame Rate30 fps
Sensor Type1/2.8” CMOS
Lens Type3.5~16mm Auto Focus
Zoom8X Digital / 4.5X Optical
Video CompressionH.264, MJPEG, MPEG4
Power SupplyPoE & DC12V
Audio SupportTwo-Way Audio
IP RatingIP68
Privacy Zones30 Programmable
Weight1.4 kg
Dimensions4.9 x 4.9 x 9.2 in
SKU  DWC-MV421D
Features  Auto Gain Control, Back Light Compensation, Day/Night, Digital Noise Reduction, Motion Detection Tracking, ONVIF, Weather Resistant
Manufacturer  Digital Watchdog
NDAACompliant
Camera Signal     Network IP
Connection Type  Wired
Infrared Distance    Non Infrared
Resolution    2.1 Megapixel
Lens Type    Varifocal
Mount Type  Ceiling, Wall
Compression Method    H.264, MPEG-4
Durability    Weather Resistant
Voltage  12vDC
Automatic Gain Control (AGC)    0~20
Dimensions (W x H)  5.47 X 4.7 in
Electronic Shutter    1/30, 1/60, 1/120
Image Device    1/2.8” CMOS Sensor
Image Pixels Total2016 (H) X 1108 (V)
IR LEDs  30IRE
Minimum Scene Illumination  F1.6(30IRE): 0.5 Lux [Color], 0.01 Lux [B/W]
Operating Humidity    Less than 90% (Non-Condensing)
Operating Temperature    -29°C ~ 55°C (-20.2°F ~ 131°F)
Power Consumption  Class 3 PoE Switch, 7.2W, 600mA
Privacy Zone    Off, On (30 Programmable Zones)
Protocols  TCP/IP, HTTP, DHCP, PPPoE, ICMP, ARP, RARP,RTSP, NTP, UDP, Multicast
Zoom Ratio    4.5x Optical Zoom, 8x Digital Zoom
Digital Noise Reduction    OFF / LOW / MIDDLE / HIGH
Mirror    Flip: Off / On
Motion Detection Tracking    Sensitivity: Low / Middle / High
Back Light Compensation  ON/OFF
Auto Gain Control    Yes
Day/Night    Yes
Digital Noise Reduction    Yes
Back Light Compensation    Yes
Motion Detection Tracking    Yes
Mirror    Yes
ONVIF  Yes
There are no related videos.

0

0 reviews

Write a review

Share your thoughts with other customers

Top customer reviews

No reviews

Write Your Own Review
You're reviewing:Digital Watchdog DWC-MV421D Triple Codec Network Camera
Your Rating
Manuals & Specifications
  DWC-MV421D-Manual
  DWC-MV421D-Quick-User-Guide
  DWC-MV421D-Specsheet
