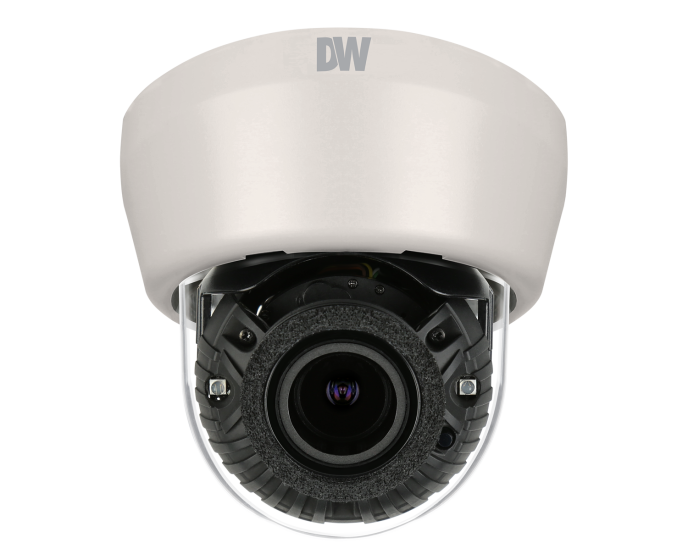

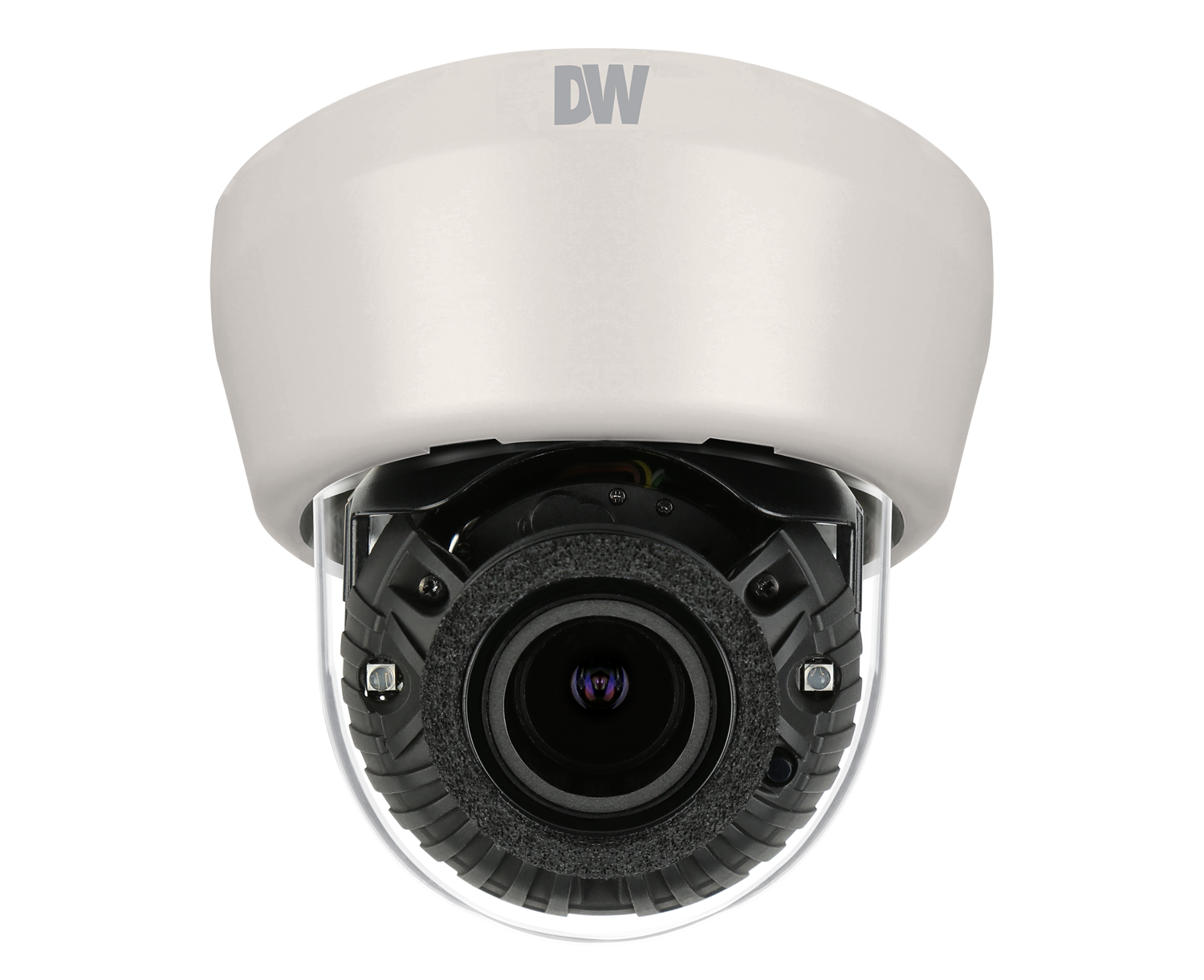

Digital Watchdog DWC-MD421TIR Triple Codec Network Camera

SKU
DWC-MD421TIR
Model No
DWC-MD421TIR
was $480.99 Special Price $331.24
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • 12 VDC power supply
  • Two-way audio
  • Local SDHC card remote backup
  • E-mail event notifications
  • Built-in web server

The Digital Watchdog DWC-MD421TIR Triple Codec Network Camera is designed for top-tier surveillance, offering 1080P megapixel resolution at 30 frames per second. With its cutting-edge features such as True Day and Night, 3D-DNR, and Double Shutter WDR, this camera ensures high-quality images in diverse lighting conditions. The convenience of Power over Ethernet combined with the Snapit Housing enables quick installations, meaning you can start monitoring your space from anywhere in the world in just a few minutes.

Digital Watchdog DWC-MD421TIR Camera Features

  • ONVIF Compliance: Ensures increased flexibility and reduced total cost by standardizing communication between network video devices.
  • High-Quality Imaging: Features a 1/2.8" CMOS sensor and a 3.5 to 16 mm autofocus lens, which captures crisp images at a resolution of 2.1 MP (1920 x 1080p at 30 fps).
  • Day and Night Operation: Automatically switches to night mode in low-light conditions to provide sharp black-and-white video images.
  • Triple Codecs: Supports H.264, MJPEG, and MPEG4 with dual stream capabilities for versatile video streaming options.
  • Optical and Digital Zoom: Offers 8x digital zoom and 4.5x optical zoom for detailed monitoring of distant objects.
  • Power over Ethernet (PoE): Simplifies installation by providing power and network connectivity through a single cable.
  • Two-Way Audio: Facilitates communication in both directions, enhancing interactive surveillance capabilities.
  • Remote Backup: Local SDHC card support for remote data backup, ensuring video footage is easily retrievable.
  • E-mail Notifications: Configurable email alerts for event notifications to keep you informed.
  • Built-in Web Server: Access and manage your camera through a web interface from anywhere with internet connectivity.
  • Advanced WDR Technology: Double shutter WDR minimizes blind spots and covers a wide viewing angle of 81°.
  • 3D-DNR: Reduces digital noise in low-light conditions for clearer video output.
  • Privacy Zones & Motion Detection: Programmable privacy zones (30) prevent unauthorized viewing areas, along with motion detection for active monitoring.
  • Remote Client Setup: Allows for easy remote configuration and upgrades.
  • FTP Upgrade Support: Enables efficient software updates and management through FTP along with UPnP support.
  • True Day and Night: The TDN feature ensures reliable performance in various lighting conditions.
  • Intelligent IR Sync: 70' (21.33 m) range infrared with smart synchronization helps improve nocturnal surveillance quality.

Digital Watchdog DWC-MD421TIR Detailed Specifications

Camera TypeTriple Codec Network Camera
Resolution1080P (1920 x 1080p at 30 fps)
Lens Type3.5 to 16 mm Autofocus Lens
Sensor Type1/2.8" CMOS
Codecs SupportedH.264, MJPEG, MPEG4
Optical Zoom4.5x
Digital Zoom8x
Power Supply12 VDC & Power over Ethernet (PoE)
Audio SupportTwo-way audio
SD Card SupportSDHC remote backup
Event NotificationsE-mail alerts
WDR TechnologyDouble Shutter WDR
Night ModeTrue Day and Night (TDN)
IR Range70' (21.33 m)
Privacy Zones30 programmable zones
Motion DetectionYes
Remote UpgradeFTP and UPnP support
SKU  DWC-MD421TIR
Features  Auto Gain Control, Back Light Compensation, Day/Night, Digital Noise Reduction, Motion Detection Tracking, ONVIF
Manufacturer  Digital Watchdog
NDAACompliant
Camera Signal     Network IP
Connection Type  Wired
Infrared Distance    Non Infrared
Resolution    2.1 Megapixel
Lens Type    Varifocal
Mount Type  Ceiling, Wall
Compression Method    H.264, MPEG-4
Durability    Indoor
Voltage  12vDC
Automatic Gain Control (AGC)    0~20
Dimensions (W x H)  4.25 X 3.8 in
Electronic Shutter    1/30, 1/60, 1/120
Image Device    1/2.8” CMOS Sensor
Image Pixels Total2016 (H) X 1108 (V)
IR LEDs  30IRE
Minimum Scene Illumination  0.0 Lux
Operating Humidity    Less than 90% (Non-Condensing)
Operating Temperature    -10?C ~ 55?C (14?F ~ 131?F)
Power Consumption  LED OFF: 5.16W, 430mA LED ON: 9.96W, 830mA
Privacy Zone    Off, On (30 Programmable Zones)
Protocols  TCP/IP, HTTP, DHCP, PPPoE, ICMP, ARP, RARP,RTSP, NTP, UDP, Multicast
Zoom Ratio    4.5x Optical Zoom, 8x Digital Zoom
Digital Noise Reduction    OFF / LOW / MIDDLE / HIGH
Mirror    Flip: Off / On
Motion Detection Tracking    Sensitivity: Low / Middle / High
Back Light Compensation  ON/OFF
Auto Gain Control    Yes
Day/Night    Yes
Digital Noise Reduction    Yes
Back Light Compensation    Yes
Motion Detection Tracking    Yes
Mirror    Yes
ONVIF  Yes
