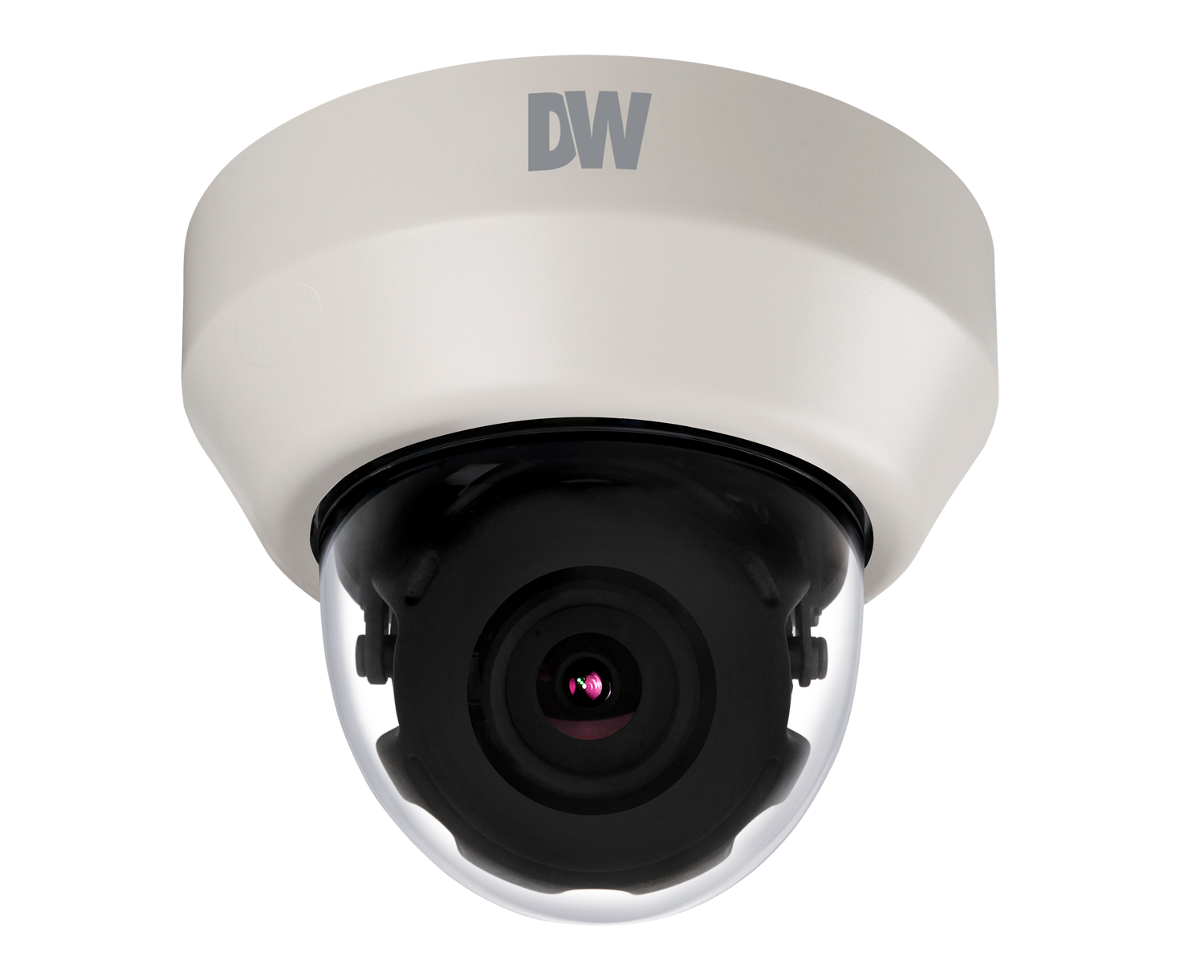

Digital Watchdog DWC-MD421D Triple Codec Network Camera
SKU
DWC-MD421D
Model No
DWC-MD421D
was $347.05 Special Price $309.19
Product Highlights
- ONVIF Compliant
- 2.1 Megapixels (1080P, 30fps)
- Triple Codecs (H.264, MJPEG, MPEG4) with Dual Stream
- 1/2.8″ CMOS Sensor
- 3.5~16mm Auto Focus Lens
Speak to an expert
The DWC-MD421D from Digital Watchdog is a triple codec network camera that provides 1080P megapixel resolution at 30 frames per second. The camera's advanced technologies like Electronic Day and Night, 3D-DNR, and Double Shutter WDR will deliver the best images in any type of environment. And Power over Ethernet combined with our Snapit Housing, branded for its quick and easy installation procedure, allows you to view and control your MEGAPIX camera from anywhere in the world in just a few minutes.
Digital Watchdog DWC-MD421D Camera Features
- ONVIF Compliant: Ensures compatibility with various security systems and devices.
- 2.1 Megapixels (1080P, 30fps): Provides clear and detailed video quality for better surveillance.
- Triple Codecs (H.264, MJPEG, MPEG4) with Dual Stream: Flexibility in streaming options to optimize bandwidth usage.
- 1/2.8” CMOS Sensor: Enhanced low-light performance for improved image quality.
- 3.5~16mm Auto Focus Lens: Offers versatile zoom options to capture distant objects clearly.
- 8X Digital Zoom, 4.5X Optical Zoom: Allows users to focus in on subjects without losing detail.
- Electronic Day and Night: Automatically adjusts for optimal viewing in varying light conditions.
- Power over Ethernet [PoE] & DC12V: Simplifies wiring and installation with fewer cables.
- Two-Way Audio: Enables communication through the camera for enhanced security.
- Local SDHC Card Remote Backup: Ensures recorded footage is secure and easily retrievable.
- E-mail Event Notifications: Keeps users informed of any unusual activity immediately.
- Web Server Built-in: Offers easy access and control from a remote location.
- Double Shutter WDR (Wide Dynamic Range): Captures the finest details in both bright and dark areas.
- 3D-DNR (3D Digital Noise Reduction): Reduces image noise, enhancing overall video clarity.
- Programmable Privacy Zones (30) & Motion Detection: Provides customizable security settings minimizing false alarms.
Digital Watchdog DWC-MD421D Detailed Specifications
| Megapixel Resolution | 2.1 Megapixels |
| Frames Per Second | 30 fps |
| Sensor Type | 1/2.8” CMOS |
| Lens | 3.5~16mm Auto Focus |
| Zoom Capability | 8X Digital, 4.5X Optical |
| Power Supply | PoE & DC12V |
| Audio Support | Two-Way Audio |
| Storage | Local SDHC Card Backup |
| Event Notification | E-mail Alerts |
| WDR & DNR Technology | Double Shutter WDR, 3D-DNR |
| Privacy Zones | 30 Programmable Zones |
SKU  | DWC-MD421D |
|---|---|
| Features | Auto Gain Control, Back Light Compensation, Day/Night, Digital Noise Reduction, Motion Detection Tracking, ONVIF |
| Manufacturer | Digital Watchdog |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 2.1 Megapixel |
| Lens Type | Varifocal |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, MPEG-4 |
| Durability | Indoor |
| Voltage | 12vDC |
| Automatic Gain Control (AGC) | 0~20 |
| Dimensions (W x H) | 4.25 X 3.8 in |
| Electronic Shutter | 1/30, 1/60, 1/120 |
| Image Device | 1/2.8” CMOS Sensor |
| Image Pixels Total | 2016 (H) X 1108 (V) |
| IR LEDs | 30IRE |
| Minimum Scene Illumination | F1.6 (30IRE): 0.5 Lux [Color], 0.01 Lux [B&W] |
| Operating Humidity | Less than 90% (Non-Condensing) |
| Operating Temperature | -10?C ~ 55?C (14?F ~ 131?F) |
| Power Consumption | Class 3 PoE Switch, 7.2W, 600mA |
| Privacy Zone | Off, On (30 Programmable Zones) |
| Protocols | TCP/IP, HTTP, DHCP, PPPoE, ICMP, ARP, RARP,RTSP, NTP, UDP, Multicast |
| Zoom Ratio | 4.5x Optical Zoom, 8x Digital Zoom |
| Digital Noise Reduction | OFF / LOW / MIDDLE / HIGH |
| Mirror | Flip: Off / On |
| Motion Detection Tracking | Sensitivity: Low / Middle / High |
| Back Light Compensation | ON/OFF |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| Mirror | Yes |
| ONVIF | Yes |
