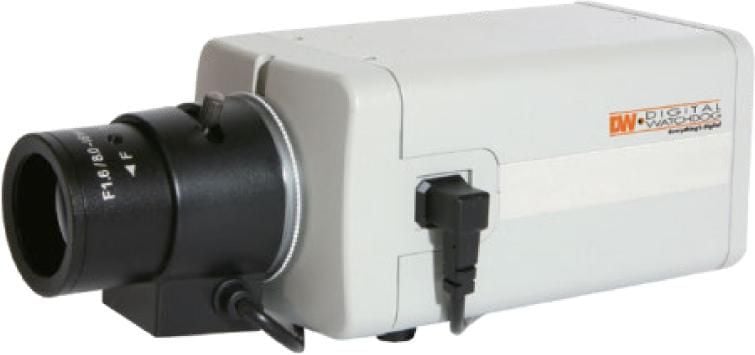

Digital Watchdog DWC-MC421D 2.1MP Day/Night IP Box Camera

SKU
DWC-MC421D
Model No
DWC-MC421D
$372.99
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • 2.1 Megapixels (1080P, 30fps)
  • Triple Codecs (H.264, MJPEG, MPEG4) with Dual-Stream
  • 1/2.8" CMOS Sensor (7% Larger Than 1/3" CMOS Sensor)
  • Electronic Day and Night
  • Power over Ethernet [PoE] & DC12V

The Digital Watchdog DWC-MC421D 2.1MP Day/Night IP Box Camera combines cutting-edge technology with user-friendly features to deliver high-quality surveillance. With a resolution of 1080P at 30 frames per second and advanced functionalities such as Electronic Day and Night and Wide Dynamic Range, it ensures superior image quality in any environment. Its Power over Ethernet capability simplifies installation, making it ideal for both professional and personal use.

Digital Watchdog DWC-MC421D Camera Features

  • 2.1 Megapixels: Provides crystal-clear 1080P video at 30fps, ensuring detailed image capture and clarity.
  • Triple Codecs: Supports H.264, MJPEG, and MPEG4 with dual-stream capabilities for flexible streaming options and efficient bandwidth usage.
  • 1/2.8" CMOS Sensor: Larger sensor size captures more light, resulting in enhanced low-light performance.
  • Electronic Day and Night: Automatic adjustment to lighting conditions offers reliable monitoring around the clock.
  • Power over Ethernet (PoE): Streamlines installation by transmitting power and data through a single cable, reducing clutter.
  • Two-Way Audio: Facilitates communication through the camera, enhancing surveillance interactions.
  • Micro SD/SDHC Card Slot: Allows for emergency video backup with support for Class 10 cards.
  • Built-in Web Server: Provides easy remote access and management of camera settings through a user-friendly interface.
  • Wide Dynamic Range (WDR): Enhances visibility in high-contrast lighting situations, ensuring clear images in diverse environments.
  • 3D Digital Noise Reduction (3D-DNR): Reduces noise for clearer images, especially in low-light conditions.
  • Programmable Privacy Zones: Customizable areas can be blocked from recording, ensuring privacy where needed.
  • AGC and BLC: Automatic Gain Control and Backlight Compensation enhance image quality in challenging lighting.
  • Event E-mail Notifications: Keeps users informed of significant occurrences through automatic email alerts.
  • ONVIF Compliance: Ensures compatibility with a variety of third-party surveillance systems.
  • Compatible with C and CS Mount Lenses: Offers flexibility for lens customization (lens not included).

Detailed Specifications for DWC-MC421D

ModelDWC-MC421D
Resolution2.1 Megapixels (1080P)
Frame Rate30 fps
Codec SupportH.264, MJPEG, MPEG4
Sensor Type1/2.8" CMOS
Light AdjustmentElectronic Day and Night
AudioTwo-Way Audio
StorageMicro SD/SDHC Class 10
Power SupplyPower over Ethernet (PoE) & DC12V
Special FeaturesWDR, 3D-DNR, Privacy Zones
CompatibilityONVIF Compliant, C/CS Mount Lens
SKU  DWC-MC421D
Features  Auto Gain Control, Back Light Compensation, Day/Night, Digital Noise Reduction, Motion Detection Tracking, ONVIF, Privacy Masking, Wide Dynamic Range
Manufacturer  Digital Watchdog
Connection Type  Wired
Infrared Distance    Non Infrared
Resolution    2.1 Megapixel
Lens Type    Not Included
Mount Type  Bracket Required
Compression Method    H.264, MPEG-4, M-JPEG
Durability    Indoor
Voltage  12vDC, PoE
Automatic Gain Control (AGC)    0~20
Dimensions (W x H)  5.2 X 2.17 in
Electronic Shutter    Auto, Manual
Image Device    1/2.8” Sony CMOS Sensor
Image Pixels Total2016 (H) X 1108 (V)
Image Size1/2.8” CMOS
Minimum Scene Illumination  F1.6 (30IRE): 0.5 Lux [Color], F1.6 (30IRE): 0.01 Lux [B&W]
Operating Humidity    Less than 90% (Non-Condensing)
Operating Temperature    -10oC ~ 55oC (14oF ~ 131oF)
Power Consumption  6.5W, 550mA
Power RequirementsPoE, 12V DC
Privacy Zone    30
Protocols  TCP/IP, HTTP, DHCP, PPPoE, ICMP, ARP, RARP, RTSP, NTP, UDP, Multicast
Digital Noise Reduction    3D-DNR: Off/ Low/ Middle/ High
Mirror    Off, On
Back Light Compensation  Off, On
Auto Gain Control    Yes
Day/Night    Yes
Digital Noise Reduction    Yes
Back Light Compensation    Yes
Motion Detection Tracking    Yes
Privacy Masking    Yes
Wide Dynamic Range    Yes
ONVIF  Yes
