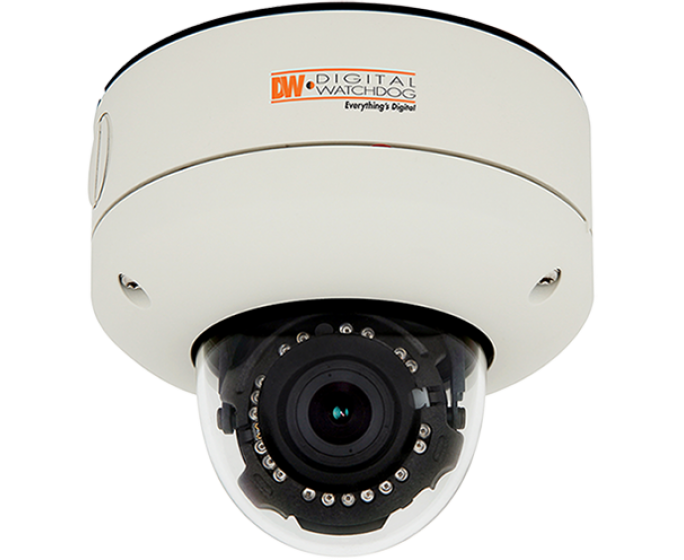

Digital Watchdog DWC-HV421TIR 2.1 Megapixel Indoor/Outdoor Dome Camera

SKU
DWC-HV421TIR
Model No
DWC-HV421TIR
$383.22
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • 1/2.8" CMOS Sensor
  • Highest Resolution 2.1 Megapixels (HD-SDI)
  • 3.5~16mm Remote Auto Focus
  • 4.5 X Optical Zoom
  • Digital Zoom

The DWC-HV421TIR from Digital Watchdog is a 2.1 megapixel indoor/outdoor dome camera with HD-SDI 1080P output. The camera outputs the clearest high definition images with its 1/2.8" CMOS sensor and features like 3D Digital Noise Reduction and Wide Dynamic Range. The command via coaxial cables offers the unique ability to control and configure the camera remotely from Digital Watchdog's VMAXHD DVR. Our simple to install housing series combined with our reliable camera technology series gives you a high-quality camera in just a few minutes.

Digital Watchdog DWC-HV421TIR Camera Features

  • 1/2.8” CMOS Sensor: Captures high-quality images even in low light conditions, ensuring clear video surveillance.
  • Highest Resolution 2.1 Megapixels (HD-SDI): Provides exceptional clarity and detail, ideal for critical monitoring environments.
  • 3.5~16mm Remote Auto Focus: Adjusts the focus automatically to provide optimal viewing distance without manual intervention.
  • 4.5 X Optical Zoom: Allows you to zoom in on details without losing image quality, enhancing surveillance capabilities.
  • Digital Zoom: Offers additional flexibility to enlarge video feed areas, ensuring no detail is missed.
  • 70ft Range IR with Intelligent Camera Sync: Ensures effective night vision capabilities, keeping monitored areas secure even in darkness.
  • TDN (True Day and Night/IR Cut Filter): Switches between day and night modes automatically to optimize video quality around the clock.
  • WDR (Wide Dynamic Range): Balances lighting in scenes with high contrast, providing clear images in varying light conditions.
  • 3D-DNR (3D Digital Noise Reduction): Reduces noise in images, enhancing the quality of video, especially in low light conditions.
  • Programmable Privacy Zones (30) & Motion Detection: Enables customized monitoring while protecting privacy in designated areas.
  • Mirror & Flip: Allows the camera to be installed in various orientations without losing functionality.
  • OSD Control via Coaxial Cable (with DW-VMAXHD DVR Only): Facilitates easy configuration through the DVR, streamlining the setup process.
  • AGC / BLC / AWB: Ensures optimal brightness and color balance in various lighting conditions for consistent image quality.
  • IP68 Certified (Water Submersible): Guarantees the camera's durability in harsh weather, making it suitable for outdoor use.
  • Junction Box Built-in: Simplifies installation by reducing the need for additional accessories.
  • RS-485 Built-in: Allows for remote control and configuration of the dome camera, enhancing usability.
  • Secondary Video-BNC Output: Provides additional connectivity options, ensuring versatility in setup.

Digital Watchdog DWC-HV421TIR Detailed Specifications

ModelDWC-HV421TIR
Resolution2.1 Megapixels
Sensor Type1/2.8” CMOS
Zoom4.5 X Optical & Digital Zoom
Night Vision Range70ft IR
WDRYes
IP RatingIP68 (Water Submersible)
Control via Coaxial CableYes (with DW-VMAXHD DVR)
Privacy Zones30
WeightVaries Depending on Installation
SKU  DWC-HV421TIR
Features  Auto Gain Control, Automatic White Balance, Day/Night, Digital Noise Reduction, Motion Detection Tracking, Wide Dynamic Range
Manufacturer  Digital Watchdog
Camera Signal     HD-SDI
Resolution    2.1 Megapixel
Sensor Option    1/2.8" CMOS
Lens Type    Varifocal
Infrared Distance    61~100 Feet
Durability    Vandal Resistant, Weather Resistant
Mount Type  Ceiling
Voltage  12vDC
Electronic Shutter    AUTO / MANUAL / DEBLUR120 / DEBLUR 240 / OUTDOOR
Image Device    1/2.8-inch CMOS Sensor
Image Pixels Total2000 (H) X 1241 (V)
Minimum Scene Illumination  F1.6 (30IRE): 0.1 Lux [Color]F1.6 (30IRE): 0.01 Lux [B&W]
Operating Humidity    Less than 90% (Non-Condensing)
Operating Temperature    -10oC ~ 50oC (14oF ~ 122oF)
Dimensions (W x H)  139 X 118.8 mm ( 5.47 X 4.7 in)
OSD Menu    ENGLISH / CHINESE / GERMAN
Power Consumption  2.0W, 166.7mA / LED ON 3.5W, 291.7mA
Privacy Zone    OFF / ON (30 Programmable Zones
S/N Ratio  50dB (AGC off)
Video Output    HD-SDI
Weatherproof    IP68
Zoom Ratio    4.5 X
Synchronization  Internal
Digital Noise Reduction    OFF / LOW / MIDDLE / HIGH
Backlight Compensation    OFF / WDR / BLC
Automatic White Balance    AUTO / AUTO_H / AUTO_l / PRESET / MANUAL / AUTO_EXT
Auto Gain Control    0-20
Automatic White Balance    Yes
Day/Night    Yes
Digital Noise Reduction    Yes
Wide Dynamic Range    Yes
Auto Gain Control    Yes
Motion Detection Tracking    Yes
