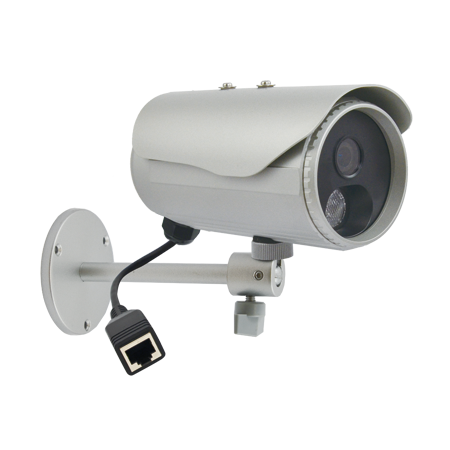

ACTi D31 1 Megapixel IR Outdoor Day/Night Bullet Camera, 4.2mm Lens
Model No
D31
$296.00
Product Highlights
- 1 Megapixel with 720p
- Day & Night with IR LED
- Fixed Lens with f4.2mm/ F1.8
- 30 fps at 1280 x 720
- Weatherproof (IP66)
Speak to an expert
The ACTi D31 1 Megapixel Day/Night IR Bullet Camera with Fixed Lens offers exceptional clarity and performance for outdoor surveillance. Featuring a Progressive Scan CMOS image sensor, this camera ensures high-resolution images, even in low light conditions, making it an ideal choice for comprehensive security solutions.
ACTi D31 Camera Features
- 1 Megapixel with 720p: Provides clear and detailed images, ensuring reliable surveillance.
- Day & Night with IR LED: Optimizes visibility in both daylight and low-light situations, enhancing security around the clock.
- Fixed Lens with f4.2mm/ F1.8: Offers a wide field of view, capturing more area with high-quality shots.
- 30 fps at 1280 x 720: Ensures smooth video playback and real-time monitoring, important for capturing fast-moving subjects.
- Weatherproof (IP66): Resilient design protects against dust and water, making it suitable for outdoor settings.
Detailed Camera Specifications for ACTi D31
| Feature | Details |
|---|---|
| Resolution | 1280 x 720 pixels |
| Image Sensor | Progressive Scan CMOS |
| Lens | Fixed f4.2mm, F1.8 |
| Frame Rate | 30 fps |
| IR Range | Up to 30 meters |
| Weather Resistance | IP66 |
SKU  | D31 |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Day/Night, Digital Noise Reduction, Flickerless, Motion Detection Tracking, ONVIF, Privacy Masking, Weather Resistant |
| Manufacturer | ACTi |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 61~100 Feet |
| Resolution | 1 Megapixel |
| Lens Type | Fixed |
| Lens Size | 4.2mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG |
| Durability | Weather Resistant |
| Voltage | PoE |
| Dimensions (W x H) | 77 mm x 176 mm (3.03" x 6.9'') |
| Electronic Shutter | 1/5 ~ 1/2,000 sec (manual mode); 1/5 ~ 1/10,000 sec (auto mode) |
| Image Device | 1/4" Progressive Scan CMOS |
| IR LEDs | 1 |
| IR Wavelength | 850 nm |
| Minimum Scene Illumination | Color: 0.1 lux at F1.8 (30 IRE, 2400°K); B/W: 0 lux (IR LED on) |
| Operating Humidity | 10% ~ 85% RH |
| Operating Temperature | -40°C ~ 50°C (-40°F ~ 122°F) |
| Power Consumption | 3.77 W (IR on) |
| Privacy Zone | 4 configurable regions |
| Protocols | TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour |
| Weatherproof | IP66 |
| Angle of View | 55.9° |
| Motion Detection Tracking | 3 regions |
| Automatic White Balance | automatic, hold, and manual |
| IR Distance | 20m |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Flickerless | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Mirror | Yes |
| ONVIF | Yes |
