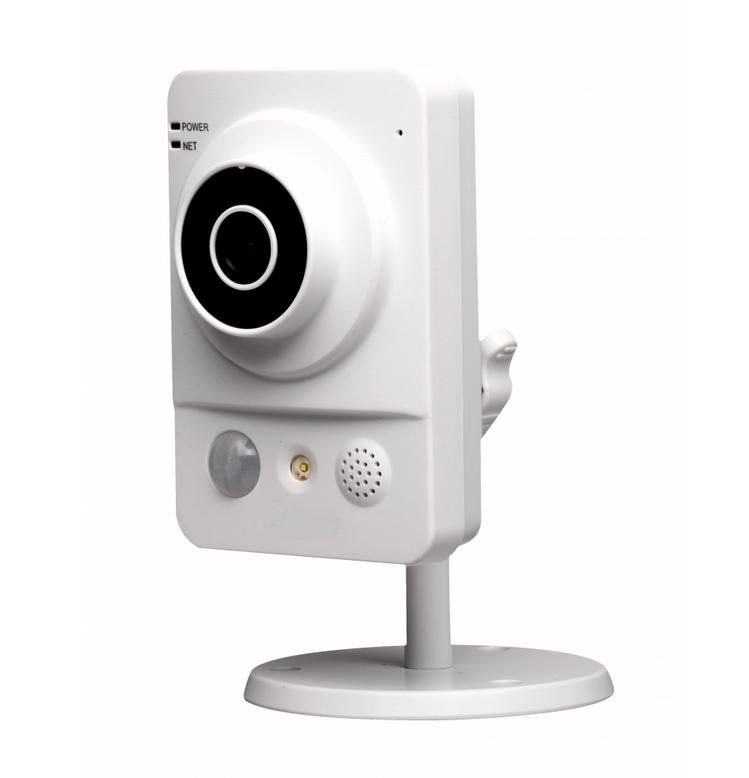

Cantek CT-IPC-K200A 2 Megapixel HD Network Cube Camera with Audio, 3.6mm Lens
SKU
CT-IPC-K200A
Model No
CT-IPC-K200A
$131.89
Product Highlights
- 1/3” 2 Megapixel progressive scan CMOS
- H.264 & MJPEG dual-stream encoding
- Max 25/30fps@1080P (1920×1080)
- DWDR, Day/Night, 3DNR, Auto iris, AWB, AGC, BLC
- Multiple network monitoring: Web viewer, CMS (DSS/PSS) & DMSS
The CT-IPC-K200A from Cantek is a 2 megapixel HD network cube camera with audio, 3.6mm Lens.
CCTV Resolution Comparison
Features
- 1/3” 2 Megapixel progressive scan CMOS
- H.264 & MJPEG dual-stream encoding
- Max 25/30fps@1080P (1920×1080)
- DWDR, Day/Night, 3DNR, Auto iris, AWB, AGC, BLC
- Multiple network monitoring: Web viewer, CMS (DSS/PSS) & DMSS
- 3.6mm fixed lens
- White LEDs length 10m
- PIR sensor range 6m
- Micro SD memory, PoE
SKU  |
CT-IPC-K200A |
|---|---|
| Features |
Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, ONVIF, Privacy Masking, Wide Dynamic Range |
| Manufacturer |
Cantek |
Camera Signal  |
Network IP |
| Connection Type |
Wired |
| Infrared Distance |
0~60 Feet |
| Resolution |
2 Megapixel |
| Lens Type |
Fixed |
| Lens Size |
3.6mm |
| Mount Type |
Ceiling, Wall |
| Compression Method |
H.264, M-JPEG |
| Durability |
Indoor |
| Voltage |
12vDC, PoE |
| Automatic Gain Control (AGC) |
Auto/Manual |
| Dimensions (W x H) |
66.6mm × 99.5mm × 131.2mm |
| Electronic Shutter |
Auto/Manual, 1/3(4)~1/100000 |
| Image Device |
1/3” 2Megapixel progressive scan CMOS |
| Image Pixels-Effective | 1920(H)x1080(V) |
| Minimum Scene Illumination |
0.05 lux/F1.8 (color) |
| Operating Humidity |
Less than 95% RH |
| Operating Temperature |
-20°C~+60°C |
| Power Consumption |
< 4.5W |
| Privacy Zone |
Up to 4 areas |
| Protocols |
IPv4/IPv6, HTTP, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour |
| S/N Ratio |
More than 50dB |
| Scanning System |
Progressive |
| Digital Noise Reduction |
3D DNR |
| Angle of View |
86.5° |
| Back Light Compensation |
BLC / HLC / DWDR |
| Automatic White Balance |
Auto/Manual |
| IR Distance |
10m/32.80ft |
| Audio | Yes |
| Auto Gain Control |
Yes |
| Day/Night |
Yes |
| Digital Noise Reduction |
Yes |
| Automatic White Balance |
Yes |
| Back Light Compensation |
Yes |
| Privacy Masking |
Yes |
| Wide Dynamic Range |
Yes |
| ONVIF |
Yes |
