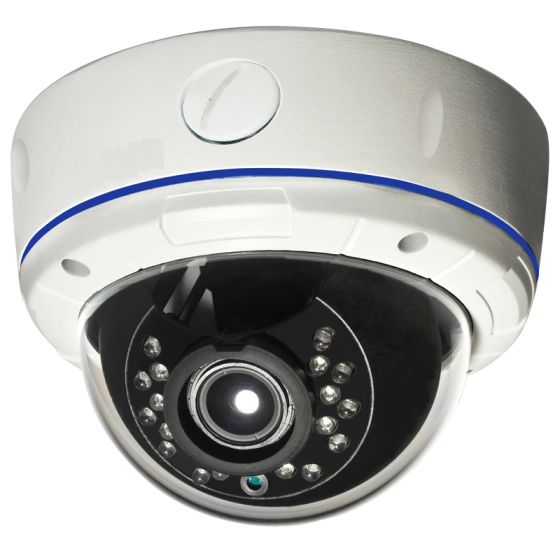

Appro CV-7830KDIR Day/Night Vandal Proof IR Dome Camera
SKU
CV-7830KDIR
Model No
CV-7830KDIR
$160.99
Product Highlights
- 1/3" SONY IMX138 1.3MP CMOS
- 1000 TVL (720p) High Resolution
- 2.8~12mm Varifocal Lens
- OSD Menu
- 3 Axis for Wall or Ceiling Mounting
Speak to an expert
The Appro CV-7830KDIR is a robust Day/Night Vandal Proof IR Dome Camera designed for excellent surveillance in diverse environments. With its high resolution and advanced features, this camera ensures clear monitoring both day and night.
Appro CV-7830KDIR Camera Features
- 1/3" SONY IMX138 1.3MP CMOS: Provides exceptional image quality with reduced noise, ensuring high clarity in all lighting conditions.
- 1000 TVL (720p) High Resolution: Captures detailed footage for better identification of people and objects.
- 2.8~12mm Varifocal Lens: Offers flexibility in viewing angles, allowing for customized surveillance setups.
- OSD Menu: Simplifies camera configuration and adjustment through an easy-to-use on-screen display.
- 3 Axis for Wall or Ceiling Mounting: Enhances installation versatility to suit different surveillance needs.
- 18 IR LEDs and 100ft IR Range: Ensures exceptional nighttime visibility, providing 24/7 surveillance capability.
- Weatherproof: IP66: Designed to withstand harsh environmental conditions, ensuring reliability in outdoor use.
- DC 12V / AC 24V: Provides flexible power options for varied installations.
Detailed Camera Specifications for Appro CV-7830KDIR
| Image Sensor | 1/3" SONY IMX138 1.3MP CMOS |
| Resolution | 1000 TVL (720p) |
| Lens Type | 2.8~12mm Varifocal Lens |
| Mounting Options | 3 Axis for Wall or Ceiling |
| IR Features | 18 IR LEDs with 100ft IR Range |
| Weatherproof Rating | IP66 |
| Power Supply | DC 12V / AC 24V |
SKU  | CV-7830KDIR |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Motion Detection Tracking, On Screen Display Menu, Privacy Masking, Vandal Resistant, Weather Resistant |
| Manufacturer | Appro |
Camera Signal  | Analog |
| Resolution | 1000 TVL |
| Sensor Option | 1/3" CMOS |
| Lens Type | Varifocal |
| Lens Size | 2.8-12mm |
| Infrared Distance | 61~100 Feet |
| Durability | Vandal Resistant, Weather Resistant |
| Mount Type | Ceiling, Wall |
| Voltage | 12vDC, 24vAC |
| Image Device | 1/3” SONY IMX138 1.3MP CMOS |
| Image Pixels-Effective | NTSC: 960 (H) X 480 (V) |
| IR Distance | 100ft |
| Minimum Scene Illumination | 0 lux / F1.2 (with IR on) |
| Operating Temperature | 14°F ~ 122°F (-10°C ~ 50°C) |
| Dimensions (W x H) | 5.9" (W) X 4.2" (H), (150mm (W) x 107mm (H)) |
| OSD Menu | Built-in |
| Power Consumption | 650mA |
| Privacy Zone | OFF / ON (8 Areas) |
| S/N Ratio | More than 50dB (AGC OFF) |
| Scanning System | 2:1 Interlaced |
| Signal System | NTSC |
| Video Output | 1.0V p-p Composite output, 75Ω |
| Weatherproof | IP66 |
| Synchronization | Internal |
| Digital Noise Reduction | 3D |
| Mirror | ON / OFF |
| Automatic White Balance | AWB-PRO / AWB-TEMPORA / AWB-AI / AWB-GW / AWB-CCT |
| IR LEDs | 18 IR LEDs |
| Motion Detection | OFF / ON (4 Areas) |
| Back Light Compensation | Yes |
| Automatic White Balance | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Mirror | Yes |
| On Screen Display Menu | Yes |
| Privacy Masking | Yes |
| Auto Gain Control | Yes |
| Motion Detection Tracking | Yes |
