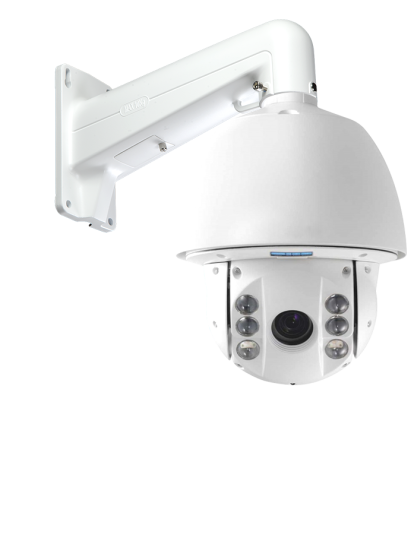

Cantek Plus CTP-PTIP20LW 2 Megapixel Network IR PTZ Camera, Wall Mount

SKU
CTP-PTIP20LW
Model No
CTP-PTIP20LW
$1,078.00
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • 1/2.9" Megapixel Sony CMOS
  • Max 25/30FPS@1080p resolution
  • 4.7mm - 94.0mm(20x) optical zoom
  • 8 IR Leds
  • H.264 Dual-stream video compression

The Cantek Plus CTP-PTIP20LW is a state-of-the-art 2 Megapixel Network IR PTZ Camera designed for superior surveillance. With impressive features such as a powerful optical zoom, robust night vision capabilities, and advanced video compression technology, this camera ensures clear and effective monitoring in various environments. Its weatherproof design and extensive preset options make it a versatile choice for any security system.

Cantek Plus CTP-PTIP20LW Camera Features

  • Image Sensor: 1/2.9" Megapixel Sony CMOS for enhanced image quality.
  • Resolution: Max 25/30FPS@1080p for crystal clear video performance.
  • Optical Zoom: 4.7mm - 94.0mm (20x) optical zoom for detailed close-ups.
  • Night Vision: 8 IR LEDs providing visibility up to 120m in complete darkness.
  • Video Compression: H.264 Dual-stream video compression for efficient storage.
  • Advanced Features: WDR, day/night ICR, DNR (2D&3D), and more for adaptive performance.
  • Remote Access: Support for P2P penetration and mobile phone push alarms for real-time notifications.
  • Monitoring Options: Multiple network monitoring via Web viewer, CMS & mobile applications.
  • Speed & Maneuverability: Max 240°/S PAN speed with 360° endless PAN rotation for complete coverage.
  • Preset Functions: Up to 255 presets, 8 auto scans, and 8 tours for customizable monitoring.
  • Durable Design: Waterproof (IP66) and works in temperatures ranging from -35 to 55°C for outdoor reliability.
  • Maintenance: Aluminium wiper included to keep the lens clean and clear.
  • Power Options: Supports DC 12V / AC 24V for flexible installation.

Cantek Plus CTP-PTIP20LW Detailed Camera Specifications

FeatureDetails
Image Sensor1/2.9" Megapixel Sony CMOS
Max Resolution25/30FPS@1080p
Optical Zoom4.7mm - 94.0mm (20x)
IR LEDs8 LEDs, up to 120m visibility
Video CompressionH.264 Dual-stream
Additional FeaturesWDR, day/night ICR, DNR (2D&3D)
Remote AccessP2P penetration and mobile alerts
MonitoringWeb, CMS & Mobile access
PAN SpeedMax 240°/S
PAN Rotation360° endless
PresetsUp to 255 presets, 8 auto scans, 8 tours
Weather ResistanceIP66 rated
Operating Temperature-35 to 55°C
Power SupplyDC 12V / AC 24V
SKU  CTP-PTIP20LW
Features  Auto Gain Control, Automatic White Balance, Back Light Compensation, Digital Noise Reduction, Privacy Masking, Weather Resistant, Wide Dynamic Range
Manufacturer  Cantek Plus
Camera Signal     Network IP
Connection Type  Wired
Infrared Distance    101 Feet +
Resolution    2 Megapixel
Lens Type    Motorized Zoom
Mount Type  Wall
Compression Method    H.264, M-JPEG
Durability    Weather Resistant
Voltage  12vDC
Electronic Shutter    AUTO / MANUAL, 1/100~1/200,000S
Image Device    2.1 MP CMOS
IR LEDs  8
Minimum Scene Illumination  0.5 LUX (F1.6, 50IRE, ICR OFF),0.095 LUX (F1.6, 50IRE, ICR ON)
Operating Humidity    10% ~ 85%
Operating Temperature    -35°C~+55°C
Power Consumption  <50W
Privacy Zone    Up to 5 ares
Weatherproof    IP66
Digital Noise Reduction    2D / 3D
Back Light Compensation  Auto
Automatic White Balance    Auto
IR Distance  120m/393.70ft
Auto Gain Control    Yes
Digital Noise Reduction    Yes
Automatic White Balance    Yes
Back Light Compensation    Yes
Privacy Masking    Yes
Wide Dynamic Range    Yes
