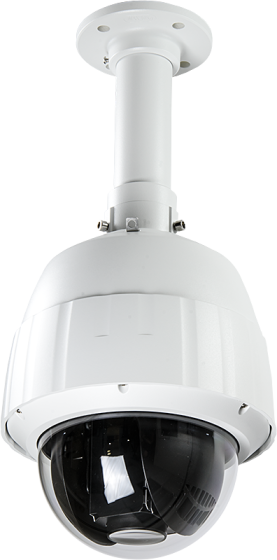

Cantek Plus CTP-PTIP20LC 2 Megapixel Network IR PTZ Camera, Ceiling Mount

SKU
CTP-PTIP20LC
Model No
CTP-PTIP20LC
$1,078.00
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • 1/2.9" Megapixel Sony CMOS
  • Max 25/30FPS@1080p resolution
  • 4.7mm - 94.0mm(20x) optical zoom
  • 8 IR Leds
  • H.264 Dual-stream video compression

The Cantek Plus CTP-PTIP20LC is a high-performance 2 Megapixel Network IR PTZ Camera designed for ceiling mount applications. With advanced features such as a powerful optical zoom, superior night vision capabilities, and robust weatherproofing, this camera offers exceptional surveillance for both indoor and outdoor environments.

Cantek Plus CTP-PTIP20LC Camera Features

  • 1/2.9" Megapixel Sony CMOS: Delivers high-quality images with rich detail and clarity.
  • Max 25/30FPS@1080p resolution: Provides smooth video streaming without lag, ensuring reliable monitoring.
  • 4.7mm - 94.0mm(20x) optical zoom: Allows for detailed close-ups on distant subjects, enhancing surveillance capabilities.
  • 8 IR LEDs: Enables powerful night vision with clear imaging up to 120 meters in complete darkness.
  • H.264 Dual-stream video compression: Reduces bandwidth while maintaining high-quality video, ideal for remote monitoring.
  • WDR(DWDR), day/night(ICR), DNR (2D&3D): Advanced imaging technologies that improve visibility in challenging lighting conditions.
  • Support P2P penetration: Simplifies remote access and management via mobile push alarms.
  • Multiple network monitoring: Allows access through web viewers, CMS, and mobile devices for flexible surveillance options.
  • Max 240°/S PAN speed: Fast and responsive camera movement for tracking moving subjects effortlessly.
  • Up to 255 presets: Easily programable positions for quick navigation, with features like auto scan and tours.
  • Waterproof (IP66): Ensures durability and reliability in harsh weather conditions.
  • Operating temperature -35~55°C: Designed to function well in extreme temperatures.
  • Power supply: Compatible with DC 12V / AC 24V for versatile installation.

Cantek Plus CTP-PTIP20LC Detailed Specifications

FeatureDetails
Sensor Type1/2.9" Megapixel Sony CMOS
Maximum Resolution2 Megapixel (1080p)
FPS25/30 FPS
Optical Zoom20x (4.7mm - 94.0mm)
IR LEDs8, up to 120m range
Video CompressionH.264 Dual-stream
Weatherproof RatingIP66
Operating Temperature-35°C to 55°C
Power SupplyDC 12V / AC 24V
PAN SpeedMax 240°/S
PresetsUp to 255
SKU  CTP-PTIP20LC
Features  Auto Gain Control, Automatic White Balance, Back Light Compensation, Digital Noise Reduction, Privacy Masking, Weather Resistant, Wide Dynamic Range
Manufacturer  Cantek Plus
Camera Signal     Network IP
Connection Type  Wired
Infrared Distance    101 Feet +
Resolution    2 Megapixel
Lens Type    Motorized Zoom
Mount Type  Ceiling
Compression Method    H.264, M-JPEG
Durability    Weather Resistant
Voltage  12vDC
Electronic Shutter    AUTO / MANUAL, 1/100~1/200,000S
Image Device    2.1 MP CMOS
IR LEDs  8
Minimum Scene Illumination  0.5 LUX (F1.6, 50IRE, ICR OFF),0.095 LUX (F1.6, 50IRE, ICR ON)
Operating Humidity    10% ~ 85%
Operating Temperature    -35°C~+55°C
Power Consumption  <50W
Privacy Zone    Up to 5 ares
Weatherproof    IP66
Digital Noise Reduction    2D / 3D
Back Light Compensation  Auto
Automatic White Balance    Auto
IR Distance  120m/393.70ft
Auto Gain Control    Yes
Digital Noise Reduction    Yes
Automatic White Balance    Yes
Back Light Compensation    Yes
Privacy Masking    Yes
Wide Dynamic Range    Yes
