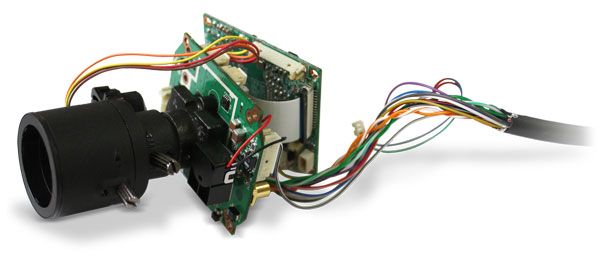

Orion CHDP-22MSDIC FHD IP Board Camera
SKU
CHDP-22MSDIC
Model No
CHDP-22MSDIC
$318.00
Product Highlights
- 1/3" MN34041PL 2 MEGA PANASONIC CMOS
- High Resolution 1100 TV Lines
- DNR (Digital Noise Reduction, 2D + 3D)
- DAY & NIGHT (Output the Filter changing signal)
- OSD (On Screen Display)
Speak to an expert
The Orion CHDP-22MSDIC FHD IP board camera delivers superior video quality and outstanding performance, perfect for surveillance and monitoring applications. With features like high resolution, advanced noise reduction, and comprehensive privacy functions, this camera ensures clarity and reliability in various lighting conditions.
Orion CHDP-22MSDIC Camera Features
- 1/3" MN34041PL 2 MEGA PANASONIC CMOS: This high-quality sensor captures detailed images, ensuring excellent clarity in both bright and low-light environments.
- High Resolution 1100 TV Lines: Provides stunning detail and sharpness, making it ideal for critical surveillance tasks.
- DNR (Digital Noise Reduction, 2D + 3D): Reduces noise in video feeds, enhancing image quality and making it easier to identify subjects.
- DAY & NIGHT (Output the Filter changing signal): Automatically adjusts to varying lighting conditions, ensuring reliable performance around the clock.
- OSD (On Screen Display): User-friendly interface allows for easy adjustments and monitoring directly on the screen.
- Privacy Mask Function (18 points): Offers customizable privacy regions, allowing users to block out specific areas from being recorded.
Orion CHDP-22MSDIC Detailed Camera Specifications
| Sensor Type | 1/3" MN34041PL 2 MEGA PANASONIC CMOS |
| Resolution | 1100 TV Lines |
| DNR | 2D + 3D Digital Noise Reduction |
| Day/Night Functionality | Yes, with automatic filter adjustment |
| On Screen Display | Yes |
| Privacy Mask | 18 customizable points |
SKU  | CHDP-22MSDIC |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Digital Zoom, Motion Detection Tracking, On Screen Display Menu, Privacy Masking, Wide Dynamic Range |
| Manufacturer | Orion |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 2.2 Megapixel |
| Lens Type | Varifocal |
| Lens Size | 2.8-12mm |
| Compression Method | H.264 |
| Durability | Indoor |
| Voltage | 12vDC |
| Automatic Gain Control (AGC) | Auto |
| Electronic Shutter | HD-SDI |
| Gamma Correction | Level Setting (0~10) |
| Image Device | 1/3" 2.2 Mega Pixels CMOS |
| Image Pixels-Effective | 1944(H) x 1092(V) |
| Minimum Scene Illumination | Color: 0.1 Lux (50IRE) / 0.02 Lux (15IRE), B/W: 0.08 Lux (50IRE) / 0.002 Lux (15IRE) |
| Operating Humidity | Less than 90% |
| Operating Temperature | -10°C ~ 50°C |
| OSD Menu | English, Japanese, German, Italian, Franch, Spanish, Chinese, Portuguese, Korean |
| Power Consumption | Less than 2.2 Watts |
| Privacy Zone | 18 Areas (On / Off, Color, Position) |
| S/N Ratio | More than 50dB (AGC Off) |
| Video Output | VBS 1.0V p-p (75ohm) |
| Digital Noise Reduction | 2D + 3DNR, OFF / LOW / MIDDLE / HIGH |
| Motion Detection Tracking | Off / On |
| Back Light Compensation | Off / ON (Size, Position) |
| Automatic White Balance | AUTO / AUTOext / PUSH / MANUAL |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| On Screen Display Menu | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| Digital Zoom | Yes |
