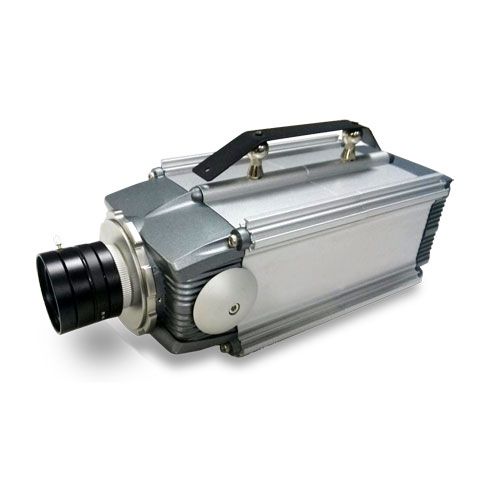

Orion CHDC-22BHSC HD-SDI Camera
SKU
CHDC-22BHSC
Model No
CHDC-22BHSC
$13,000.00
Product Highlights
- 2.2M CMOS Image Sensor
- Full HD 1920 x 1080p (Max. 340fps)
- HD 1280 x 720p (Max. 500fps)
- D1 720 x 480 (Max. 745fps)

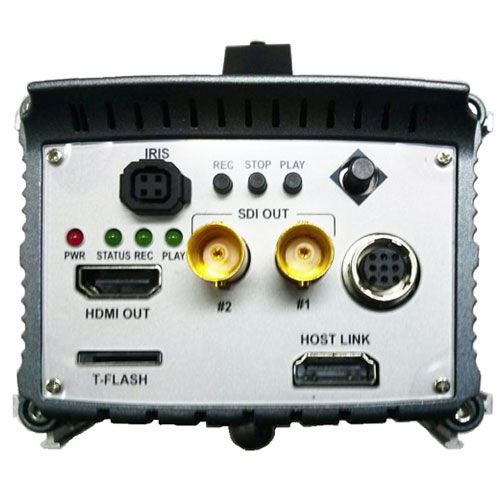

- HDMI, SDI, CVBS Video Output Support
The new ORION Images CHDC-22BHSC HD CCTV 2.1 Mega pixel Camera can be used in Broadcast, Security and Sport applications.
CCTV Resolution Comparison
Features
- 2.2M CMOS Image Sensor
- Full HD 1920 x 1080p (Max. 340fps)
- HD 1280 x 720p (Max. 500fps)
- HD 1280 x 720p (Max. 500fps)
- HDMI, SDI, CVBS Video Output Support
- Internal 8GB Memory
- H.264 Compression backup
- High speed image sensor raw video full frame Host transmit & interface
- 340 frame internal DDR memory recording & real 30 frame, 60frame display
SKU  |
CHDC-22BHSC |
|---|---|
| Features |
Auto Gain Control, On Screen Display Menu |
| Manufacturer |
Orion |
Camera Signal  |
HD-SDI |
| Resolution |
2.2 Megapixel |
| Sensor Option |
1/2.9" CMOS |
| Lens Type |
Not Included |
| Infrared Distance |
Non Infrared |
| Durability |
Indoor |
| Mount Type |
Bracket Required |
| Voltage |
12vDC |
| Image Device |
2.2M CMOS Image Sensor |
| Image Pixels Total | 2048(H) x 1088(V) / 2,228,224 (Pixel) |
| Image Pixels-Effective | 1920(H) x 1080(V) / 2,073,600 (Pixel) |
| Minimum Scene Illumination |
5.56V / Lux |
| Dimensions (W x H) |
209.7(W) x 78.78(H) x 98.1(D) |
| Scanning System |
Progressive Scan |
| Video Output |
HD-SDI, HDMI, CVBS |
| Synchronization |
Internal |
| On Screen Display Menu |
Yes |
| Auto Gain Control |
Yes |
