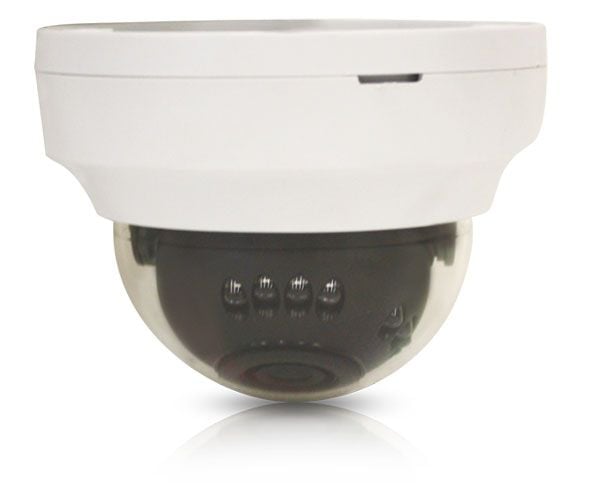

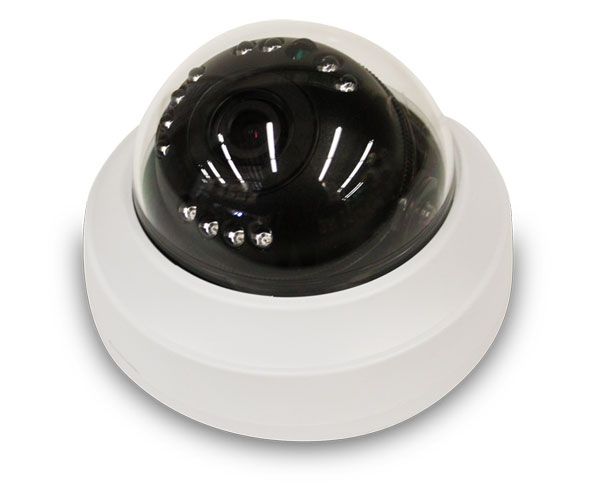

Orion CHDC-21DSD HD-SDI Camera
SKU
CHDC-21DSD
Model No
CHDC-21DSD
$172.00
Product Highlights
- 1/2.9" Sony Exmor CMOS Sensor
- 12 IR LEDs
- 4mm Fixed Lens
- WDR (Wide Dynamic Range)
- Dome size: 75⌀
Speak to an expert
Introducing the Orion CHDC-21DSD HD-SDI Camera, meticulously engineered for security surveillance applications. This commercial-grade camera operates continuously, 24/7, offering superior HD resolution, advanced imaging technologies, and a suite of intelligent features for enhanced monitoring.
Orion CHDC-21DSD Camera Features
- Sensor: 1/2.9" Sony Exmor CMOS Sensor for exceptional low-light performance and image clarity.
- Resolution: Full HD Resolution at 1080p 30fps or 720p 60fps ensures crystal clear video quality.
- Infrared Technology: 12 IR LEDs enable consistent night vision to capture details in complete darkness.
- Lens: 4mm Fixed Lens provides a versatile field of view for various surveillance situations.
- WDR: Wide Dynamic Range technology allows for optimal image quality in challenging lighting conditions.
- DNR: Digital Noise Reduction with 2D + 3D capabilities minimizes noise and enhances video quality.
- Privacy Mask Function: Protects sensitive areas by allowing customization of masked zones in the video feed.
- Intelligent Motion Detection: Smart detection technology alerts you when movement is detected, improving security responsiveness.
- Defog Function: Enhances visibility by defogging foggy video images for clearer surveillance.
- Dome Size: Compact design with a dome size of 75mm for discreet installations.
Orion CHDC-21DSD Camera Specifications
| Camera Type | HD-SDI Camera |
| Sensor Type | Sony Exmor CMOS |
| Image Resolution | 1080p / 720p |
| Frame Rate | 30fps / 60fps |
| Infrared LEDs | 12 IR LEDs |
| Lens Type | Fixed 4mm |
| Wide Dynamic Range | Yes |
| Digital Noise Reduction | 2D + 3D |
| Privacy Masking | Yes |
| Motion Detection | Intelligent Detection |
| Defog Function | Yes |
| Dome Size | 75mm |
SKU  | CHDC-21DSD |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Digital Zoom, Flickerless, Motion Detection Tracking, On Screen Display Menu, Privacy Masking, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Orion |
Camera Signal  | HD-SDI |
| Resolution | 2.1 Megapixel |
| Sensor Option | 1/2.9" CMOS |
| Lens Type | Fixed |
| Lens Size | 4mm |
| Infrared Distance | 0~60 Feet |
| Durability | Indoor, Weather Resistant |
| Mount Type | Ceiling, Wall |
| Voltage | 12vDC |
| Electronic Shutter | Auto / Manual ( 1/30 (1/25) ~ 1/60000 ) |
| Image Device | 1/2.9" Sony Exmor CMOS Sensor |
| Image Pixels-Effective | 1936(H) x 1105(V), 2.12M Pixels |
| Minimum Scene Illumination | Color : 0.5 Lux, BW: 0.1 Lux Color DSS: 0.002 Lux, BW DSS: 0.001 |
| Operating Humidity | 0%RH ~ 80%RH |
| Operating Temperature | -10° ~ +50° |
| OSD Menu | English, Japanese, Chinese |
| Power Consumption | Max 700mA |
| Privacy Zone | 24 points |
| S/N Ratio | More than 50dB (AGC off) |
| Scanning System | Progressive |
| Video Output | BNC (HD-SDI) |
| Digital Noise Reduction | Off / Low / Middle / High / Auto |
| Mirror | Off / H / V / H&V |
| Backlight Compensation | Off / WDR / BLC |
| Automatic White Balance | Auto / One Push / Manual / Indoor / Outdoor |
| Auto Gain Control | More than 50dB (AGC Off) |
| IR LEDs | 12 |
| Flickerless | Off / On |
| Motion Detection | 3 points |
| Back Light Compensation | Yes |
| Automatic White Balance | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Mirror | Yes |
| On Screen Display Menu | Yes |
| Wide Dynamic Range | Yes |
| Privacy Masking | Yes |
| Auto Gain Control | Yes |
| Flickerless | Yes |
| Motion Detection Tracking | Yes |
| Digital Zoom | Yes |
