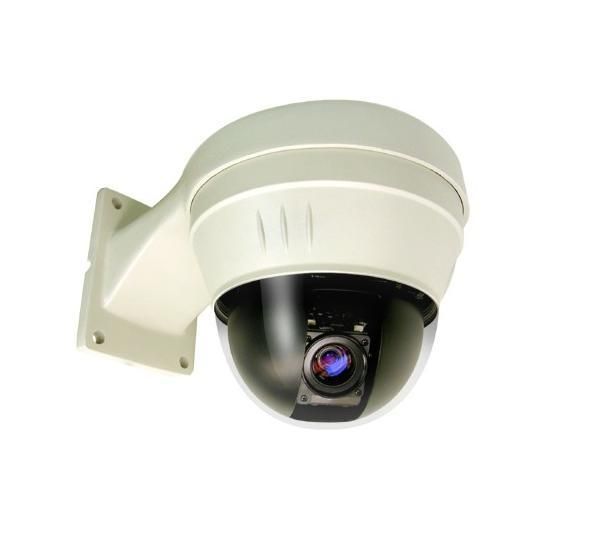

COP-USA CD75HZD-HWAC Mini High Speed Heavy Duty Pan/Tilt/Zoom Dome

SKU
CD75HZD-HWAC
Model No
CD75HZD-HWAC
$460.60
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • 4.2" High Speed Color Mini Dome
  • 12X Optical Zoom Lens
  • 620 TVL 0.05LUX
  • Wall / Ceiling Bracket Included
  • Blower Built-in

The CD75HZD-HWAC From COP-USA is a Mini High Speed Heavy Duty Pan/Tilt/Zoom Outdoor Dome Camera that combines robustness and advanced technology for superior performance. Equipped with a powerful 12X optical zoom, this camera offers exceptional clarity and detail, making it perfect for surveillance in various environments.

COP-USA CD75HZD-HWAC Camera Features

  • 4.2" High Speed Color Mini Dome: Compact design ensuring easy installation in tight spaces without sacrificing quality.
  • 12X Optical Zoom Lens: Allows for close-up monitoring of subjects from a distance, enhancing surveillance capabilities.
  • 620 TVL 0.05LUX: Provides high-resolution images even in low-light conditions, ensuring reliable performance at any time.
  • Wall / Ceiling Bracket Included: Versatile mounting options for easy and flexible installation in various locations.
  • Blower Built-in: Prevents condensation and keeps the camera clear, maintaining image quality in all weather conditions.
  • AC24V: Ensures efficient power usage, suitable for heavy-duty applications.
  • Dimension 120 x 160mm: Space-efficient size for discreet installations.
  • Pelco-D Compatible: Integrates seamlessly with existing security systems, enhancing versatility.

COP-USA CD75HZD-HWAC Detailed Specifications

Camera TypeMini High Speed Dome
Zoom12X Optical Zoom
Resolution620 TVL
Low Light Sensitivity0.05LUX
Power RequirementsAC24V
Dimensions120 x 160mm
Mounting OptionsWall / Ceiling Bracket Included
Integrated BlowerYes
CompatibilityPelco-D
SKU  CD75HZD-HWAC
Features  Auto Gain Control, Automatic White Balance, Back Light Compensation
Manufacturer  COP-USA
Camera Signal     Analog
Resolution    620 TVL
Sensor Option    1/4" CCD
Lens Type    Varifocal
Lens Size    3.8-45mm
Infrared Distance    Non Infrared
Durability    Indoor
Mount Type  Ceiling, Wall
Voltage  24vAC
Electronic Shutter    AES:1/60(1/50)~1/120.000sec./ Manual:8Step
Gamma Correction  0.45/1
Image Device    COLOR 1/4” CCD
Minimum Scene Illumination  Typical: 2.5 Lux (F1.8, 5600°K) 50IRE, Star Light Mode: 0.05 Lux (F1.8, 5600°K) 50IRE
Operating Humidity    0~75% (no condensation)
Operating Temperature    -10°C - +50°C
Dimensions (W x H)  120mm x 160mm
Protocols  Pelco-D, Pelco-P
S/N Ratio  48dB (MIN) / 52dB(TYP) (AGC OFF, r=1, APC OFF, Y-OUT)
Synchronization  Internal / VD-Lock
Backlight Compensation    Super BLC, 48 zone BLC
Automatic White Balance    ATW / AWB / FIX (zero color rolling)
Auto Gain Control    Auto (18dB max)
Back Light Compensation    Yes
Automatic White Balance    Yes
Auto Gain Control    Yes
