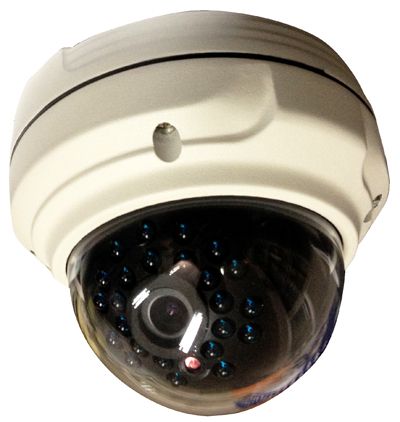

COP-USA CD42IR-AHD Super High Resolution 960P with 4.2mm IR ICR Lens
SKU
CD42IR-AHD
Model No
CD42IR-AHD
$49.40
Product Highlights
- 1/3″ SNY 238 Sensor 960P
- 3-Axis vertical /Horizontal / Rotation Bracket Adjustment
- 1.4MegaPixel /960P /960H
- Built-in Mega Pixels Lens 4.2mm IR ICR
- DWDR, 3D NR, Sensr-Up
Speak to an expert
The CD42IR-AHD from COP-USA is a state-of-the-art surveillance camera offering superior video quality with its Super High Resolution 960P and a versatile 4.2mm IR ICR Lens. Ideal for both indoor and outdoor environments, this camera ensures enhanced visibility in low-light conditions, making it an essential component for security systems.
COP-USA CD42IR-AHD Key Features
- Sensor: 1/3” SNY 238 Sensor 960P offers crisp and clear image quality for all security needs.
- Brackets: 3-Axis vertical/Horizontal/Rotation Bracket Adjustment provides easy installation and precise camera positioning.
- Resolution: 1.4 MegaPixel / 960P / 960H guarantees high-resolution images for effective monitoring.
- Lens: Built-in Mega Pixels Lens 4.2mm IR ICR ensures detailed captures, day or night.
- Technology: DWDR, 3D NR, Sensr-Up technology enhances image quality by reducing noise and balancing exposure.
- OSD Function: With OSD Function, users can easily adjust settings for optimal performance.
- LEDs: 24 High Intensity LED's improve night vision capabilities.
- Night Vision: Visible range up to 100 feet in total darkness allows for expansive surveillance coverage.
- Power Specs: Power: DC 12V / 350mA ensures efficient energy consumption for continuous operation.
COP-USA CD42IR-AHD Detailed Specifications
| Feature | Details |
|---|---|
| Sensor Type | 1/3” SNY 238 |
| Resolution | 960P |
| Lens Focal Length | 4.2mm IR ICR |
| Brackets | 3-Axis vertical/Horizontal/Rotation |
| Image Processing | DWDR, 3D NR, Sensr-Up |
| LED Count | 24 High Intensity LEDs |
| Night Vision Range | Up to 100 feet |
| Power Supply | DC 12V / 350mA |
SKU  | CD42IR-AHD |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Digital Zoom, Motion Detection Tracking, On Screen Display Menu, Privacy Masking, Wide Dynamic Range |
| Manufacturer | COP-USA |
Camera Signal  | HD-AHD |
| Resolution | 960p |
| Sensor Option | 1/3" CCD |
| Lens Type | Fixed |
| Lens Size | 4.2mm |
| Infrared Distance | 61~100 Feet |
| Durability | Indoor |
| Mount Type | Ceiling, Wall |
| Voltage | 12vDC |
| Electronic Shutter | 1/60sec ~ 1/120,000sec, 1/50sec ~ 1/120,000sec |
| Image Device | 1/3 SNY 238 Sensor |
| Image Pixels Total | 1280(H) x 960(V) |
| IR Distance | 100ft |
| Minimum Scene Illumination | Color Mode : 0.003 (0.6) Lux (Sens-up Off) B/W Mode : 0Lux (Sens-up Off) |
| Operating Humidity | 30% to 80%RH |
| Operating Temperature | 0-10℃ to +50℃ |
| Dimensions (W x H) | 15.5cmX15.5cmX14cm |
| OSD Menu | Available |
| Privacy Zone | ON/OFF (8 Zone) |
| S/N Ratio | 52 dB (AGC Off,Weight ON) |
| Scanning System | 2:1 Interlace |
| Zoom Ratio | ON(x10)/OFF |
| Digital Noise Reduction | OFF/ON(1~ 5 Level Adjustable) |
| Mirror | ON/OFF |
| Backlight Compensation | WDR / BLC / OFF Selectable |
| Automatic White Balance | ATW/AWC/Manual/Outdoor(1800 ˚ K ∼ 10,500˚ K)Indoor(4500 ˚ K ∼ 8,500˚ K) |
| Auto Gain Control | LOW,MIDDLE,HIGH,OFF Selectable |
| IR LEDs | 24 LED |
| Motion Detection | ON/OFF (8 Zone, ALARM Output)) |
| Back Light Compensation | Yes |
| Automatic White Balance | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Mirror | Yes |
| On Screen Display Menu | Yes |
| Wide Dynamic Range | Yes |
| Privacy Masking | Yes |
| Auto Gain Control | Yes |
| Motion Detection Tracking | Yes |
| Digital Zoom | Yes |
