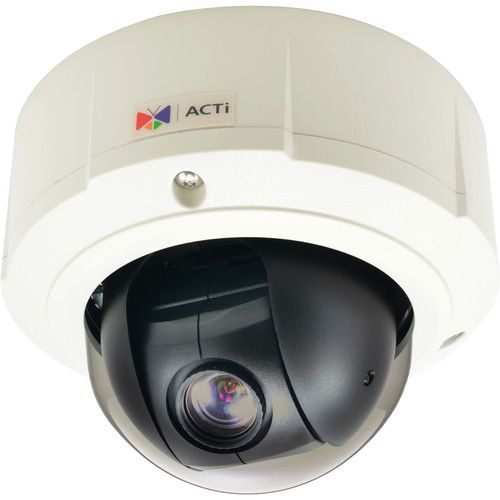

ACTi B94A 1.3 Megapixel Day/Night Outdoor Mini PTZ Dome Camera, 10x Lens
SKU
B94A
Model No
B94A
$788.40
Product Highlights
- 1280 x 960 Resolution at 30 fps
- True Day/Night with IR Cut Filter
- 10x Motorized Zoom Lens
- 52.12° to 5.9° Horizontal FOV
- Input and Output for 2-Way Audio
Speak to an expert
The ACTi B94A 1.3 Megapixel Day/Night Outdoor Mini PTZ Dome Camera is engineered for superior surveillance with its advanced features designed for both performance and durability. This camera detects motion within three programmable areas and triggers alarms for audio detection, ensuring comprehensive monitoring. Its versatile mounting options and robust weather rating allow for secure installation in various outdoor environments. With a high-quality lens and true day/night functionality, this camera guarantees clear imaging at all times.
ACTi B94A Camera Features
- Resolution: 1280 x 960 at 30 fps for sharp, clear images.
- True Day/Night with IR Cut Filter: Automatically switches between color and B&W for optimal visibility in any lighting condition.
- 10x Motorized Zoom Lens: Offers flexibility and detail in surveillance with a varifocal range of 4.9-49mm.
- Field of View: 52.12° to 5.9° Horizontal FOV to capture a wide area or focus on specific details.
- 2-Way Audio Capability: Input and output terminals allow for seamless audio communication.
- Edge Storage: microSD slot enables local recording for greater data security.
- Pan & Tilt Speed: Adjustable speed from 5° to 90° per second for precise control over surveillance angles.
- Power over Ethernet (PoE): RJ45 connection simplifies installation by reducing cable clutter.
- ONVIF-Compliant: Ensures compatibility with various third-party devices and software.
- Weatherproof and Vandal Resistant: IP67 and IK10 ratings make it suitable for outdoor installation in challenging environments.
ACTi B94A Detailed Camera Specifications
| Model | ACTi B94A |
| Type | 1.3 Megapixel PTZ Dome Camera |
| Sensor | 1/3" Progressive Scan CMOS |
| Max Resolution | 1280 x 960 |
| Lens | 4.9-49mm Varifocal |
| Motorized Zoom | 10x |
| Pan Range | -175° to 175° |
| Tilt Range | 0° to 180° |
| Power Supply | IEEE 802.3af PoE |
| Weather Resistance | IP67 Rated |
| Vandal Resistance | IK10 Rated |
| Audio | 2-way Audio via Input/Output |
| Storage | microSD Slot |
| Operating Temperature | -40°F to 140°F |
SKU  | B94A |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Day/Night, Digital Noise Reduction, Flickerless, Heater & Fan, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | ACTi |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 1.3 Megapixel |
| Lens Type | Motorized Zoom |
| Lens Size | 10X |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 12vDC, PoE |
| Dimensions (W x H) | 6.00 x 4.60" (15.24 x 11.68 cm) |
| Electronic Shutter | 1/5 to 1/2,000 sec (manual mode), 1/5 to 1/10,000 sec (auto mode) |
| Image Device | 1/3 " Progressive Scan CMOS |
| Image Pixels-Effective | 1280(H) X 960(V) (1.23 MP) |
| Minimum Scene Illumination | Color: 0.1 lux at F1.6 (30 IRE , 2400 K); B/W: 0.05 lux at F1.6 (30 IRE, 2400 K) |
| Operating Humidity | 10 to 85% RH |
| Operating Temperature | -40°C ~ 50°C (-40°F ~ 122°F) |
| Power Consumption | 11.2 W (PoE, heater and fan on) |
| Protocols | TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour |
| S/N Ratio | 52 dB |
| Weatherproof | IP66 |
| Digital Noise Reduction | 2D + 3D DNR |
| Angle of View | 52.1° - 5.9° |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Flickerless | Yes |
| Heater & Fan | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
