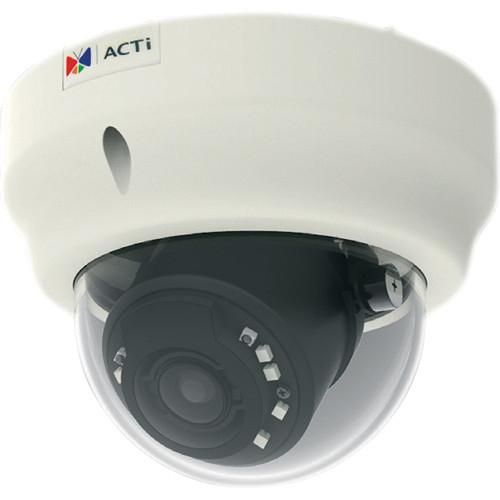

ACTi B62 5 Megapixel Indoor IR Network Vandal Dome Camera, 9.0-22mm Lens
Model No
B62
$656.10
Product Highlights
- 5 Megapixel with 1080p
- Day & Night with Adaptive IR LED
- 2.4x Zoom Lens with f9 - 22mm / F1.6 - 2.3, DC Iris, Auto Focus
- Basic WDR (74 dB)
- 30 fps at 1920 x 1080
Speak to an expert
The B62 from ACTi is a 5Mp 2.4x Indoor Adaptive IR Network Vandal Dome camera, designed to deliver high-resolution surveillance in a compact and robust form factor. It features advanced image capturing capabilities with its adaptive IR technology, ensuring clear visibility in various lighting conditions while providing added protection against tampering.
ACTi B62 Features
- 5 Megapixel Resolution: With its crisp 5MP resolution, this camera offers exceptional image clarity, aiding in the identification of individuals and objects even in detailed scenarios.
- Day & Night Functionality: Equipped with adaptive IR LED, the camera switches seamlessly between day and night modes, ensuring reliable performance in low light conditions.
- 2.4x Zoom Lens: The 9-22mm lens provides versatility with zoom capabilities and features DC iris for better light adjustment and auto-focus for clearer vision.
- Basic WDR: With a Wide Dynamic Range (WDR) of 74 dB, this camera effectively manages bright and dark areas within the same field of view, ensuring balanced exposure.
- High Frame Rate: Capable of capturing 30 fps at 1920 x 1080 resolution, it delivers smooth video playback necessary for thorough surveillance analysis.
- Vandal Resistant Design: Rated IK09 for vandal resistance, this camera is built to withstand harsh treatment, ensuring longevity in various settings.
ACTi B62 Detailed Camera Specifications
| Resolution | 5 Megapixel |
| Lens Type | 2.4x Zoom, 9-22mm / F1.6 - 2.3 |
| Day/Night | Adaptive IR LED |
| WDR | Basic WDR (74 dB) |
| Frame Rate | 30 fps at 1920 x 1080 |
| Vandal Resistance | IK09 rating |
SKU  | B62 |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Day/Night, Digital Noise Reduction, Flickerless, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Wide Dynamic Range |
| Manufacturer | ACTi |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 101 Feet + |
| Resolution | 5 Megapixel |
| Lens Type | Motorized Zoom |
| Lens Size | 2.4X |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG |
| Durability | Indoor, Vandal Resistant |
| Voltage | 12vDC, PoE |
| Dimensions (W x H) | 146 mm x 107 mm (5.7'' x 4.2'') |
| Electronic Shutter | 1/5 ~ 1/2,000 sec (manual mode); 1/5 ~ 1/10,000 sec (auto mode) |
| Image Device | 1/3.2'' Progressive Scan CMOS |
| Image Pixels-Effective | 2592 (H) x 1944 (V) (5.04 MP) |
| IR LEDs | 10 LED |
| IR Wavelength | 850 nm |
| Minimum Scene Illumination | Color: 0.1 lux at F1.6 (30 IRE, 2400°K); B/W: 0 lux (IR LED on) |
| Operating Humidity | 10% ~ 85% RH |
| Operating Temperature | -10°C ~ 50°C (14°F ~ 122°F) |
| Power Consumption | PoE Class 3 (IEEE802.3af) / 4.8 W, DC 12V (adapter not included) / 4.2 W |
| Privacy Zone | 4 configurable regions for each of 17 preset points |
| Protocols | TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv4, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour |
| S/N Ratio | 52 dB |
| Digital Noise Reduction | 2D+3D |
| Motion Detection Tracking | 3 regions |
| Automatic White Balance | automatic, hold, and manual |
| IR Distance | 40 meter |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Flickerless | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
